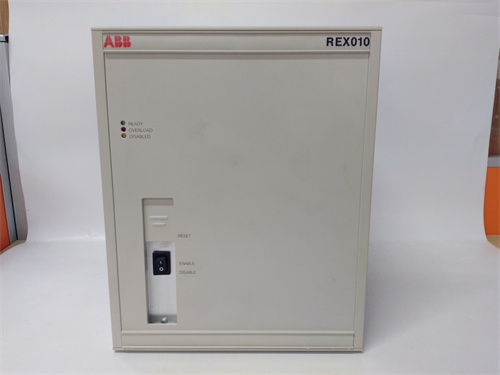

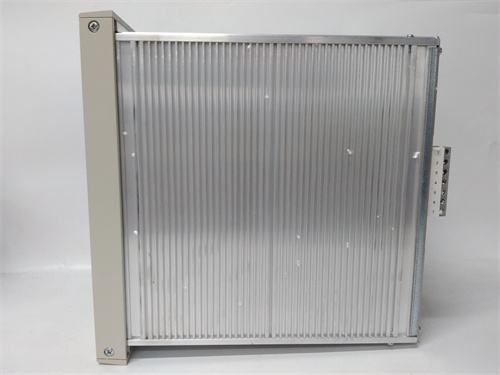

ABB REX010 HESG324426R0001 HESG324389

Description

Product Overview

The ABB REX010 HESG324426R0001 HESG324389 is a sophisticated electronic assembly, specifically a Regulator or Excitation Control Board, designed for ABB’s legacy static excitation systems for synchronous generators, such as those in the UNITROL or P series. This module, with the core part number HESG324426R0001, serves as the intelligent control core within the excitation cabinet. Its primary function is to regulate the generator’s field current by controlling the firing of thyristors in the power bridge, thereby maintaining precise generator terminal voltage, providing damping for power system oscillations, and implementing critical protection functions like field forcing and over-excitation limiting. For detailed technical manuals, application diagrams, and configuration guides, please refer to the official product resource: ABB REX010 HESG324426R0001 HESG324389. The ABB REX010 is a vital component in power generation stability, directly influencing grid voltage support and the dynamic response of the generator.

Product Parameters and Specifications

• Function: Excitation System Regulator / AVR (Automatic Voltage Regulator) Control Board.
• System Compatibility: Designed for specific ABB UNITROL/P excitation systems for synchronous generators and motors.
• Control Inputs: Accepts signals for generator terminal voltage (VT), generator current (CT), and optionally power factor or VARs for more advanced control modes.
• Control Outputs: Generates precise firing pulses for the thyristor bridges in the power unit to control the DC field current of the generator rotor.
• Control Modes: Supports multiple operating modes, typically:
  • Automatic Voltage Regulation (AVR) Mode: Primary mode for maintaining constant generator terminal voltage.
  • Field Current Regulation (FCR) Mode: For manual control or during start-up.
  • VAR/Power Factor Control Mode: For reactive power management.
• Protection Functions: Implements protection features such as Over-Excitation Limiter (OEL), Under-Excitation Limiter (UEL), Volts-per-Hertz (V/Hz) protection, and loss-of-synchronism detection.
• Communication: May include serial communication interfaces (RS-485/RS-232) for integration with plant DCS/SCADA systems using protocols like Modbus.
• Hardware: A complex PCB containing microprocessors, analog signal conditioning circuits, digital logic, and isolated I/O channels.

Advantages and Key Features

The ABB REX010 HESG324426R0001 HESG324389 offers critical advantages for generator control. Its core feature is providing precise and stable voltage regulation, which is fundamental for power quality and grid stability. The module enables excellent dynamic response to system disturbances (like load changes or faults), helping to dampen power swings and maintain synchronism. The integrated protection and limiting functions safeguard the expensive generator rotor from thermal damage due to excessive field current. As a genuine ABB regulator board, it ensures seamless compatibility and performance with the rest of the excitation system’s hardware (power units, measurement transformers) and firmware. Using the ABB REX010 assembly guarantees that the complex control algorithms and protection curves are executed as originally engineered, preserving the safety and reliability of the generator asset.

Application Cases in Industry

This regulator board is exclusively used in power generation and large motor applications. In Thermal Power Plants (coal, gas, nuclear), it controls the excitation of the main turbine-generator to regulate grid voltage. For Hydroelectric Power Plants, it manages the excitation of hydro generators, crucial for responding quickly to changing grid demands. In Industrial Plants with large synchronous motors driving compressors or mills, the ABB REX010 controls the motor’s power factor and provides starting torque. It is also found in Marine propulsion systems and on Offshore Oil & Gas platforms where synchronous generators provide local power. Any facility with a synchronous machine requiring precise control of reactive power and terminal voltage relies on such a regulator.

Comparison with Competing Products

1. Genuine ABB Excitation Spare (this assembly): The only option that guarantees the exact performance characteristics, protection settings, and communication protocols required by the existing excitation system. It is a direct, tested replacement.
2. Third-Party Refurbished or “Will-Fit” Regulator: While potentially cheaper, these carry significant risks. The control algorithms, calibration, and protection timing may differ, potentially leading to unstable generator operation, incorrect protection responses, or incompatibility with the existing power bridge. Support and documentation are often lacking.
3. Complete Excitation System Upgrade: The strategic alternative is to replace the entire static excitation system with a modern digital regulator. This is a major project offering new features but at a high cost and requiring significant rewiring and commissioning.

The ABB REX010 HESG324426R0001 HESG324389 serves the critical need of maintaining legacy infrastructure with a certified component.

Selection Suggestions and Precautions

• Selection Advice:
  1. Exact Part Number Match is Non-Negotiable: The codes REX010, HESG324426R0001, and HESG324389 must be identical to those on the failed regulator. These specify the firmware, hardware revision, and application type.
  2. Excitation System Identification: Document the complete excitation system model (e.g., UNITROL 1000), serial number, and the generator data (kVA, voltage). This is essential for verification.
  3. Parameter Backup: Before removing the old board, ensure all adjustable settings (gain, stability, limit setpoints) are fully documented from the front panel or service software. These parameters must be replicated on the new REX010.
  4. Source from Authorized Channels: Purchase only from ABB’s Power Generation services division or their most trusted and authorized specialists in excitation systems.
• Important Precautions:
  1. High Voltage and Energy Hazard: The excitation system is connected to the generator field, which operates at several hundred volts DC, and to generator PTs/CTs. A strict generator outage and electrical isolation procedure (LOTO) must be followed. The field circuit can hold a dangerous charge.
  2. ESD Protection: The board is highly sensitive to electrostatic discharge. Handle with a grounded wrist strap and on an anti-static mat.
  3. Calibration and Testing: After installation, the new ABB REX010 regulator must be calibrated. This involves verifying VT/CT signal scaling, checking the firing pulse alignment with the thyristor bridge, and testing protection functions. This requires specialized knowledge and equipment.
  4. Functional Testing: Before returning the generator to service, perform a full functional test. This includes checking operation in all control modes (AVR, FCR), verifying manual/auto transfers, and simulating limiters (OEL, UEL) to ensure they operate correctly.
