Product Analysis: ABB REF615

Introduction and Product Description

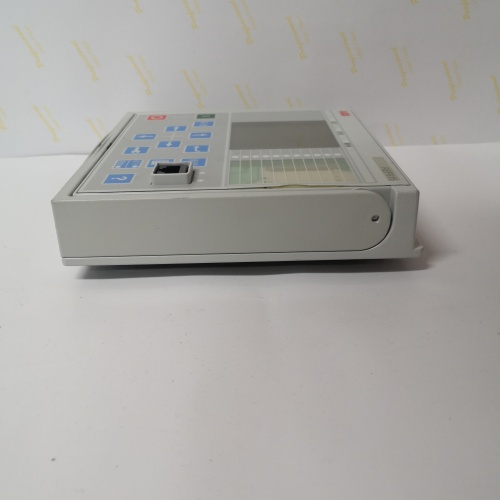

The ABB REF615 is a member of the Relion® product family and represents a state-of-the-art feeder protection and control relay designed for utility and industrial power distribution systems. This versatile device functions as an intelligent electronic device (IED), combining comprehensive protection functions, advanced control logic, extensive measurement capabilities, and communication in a compact, easy-to-use unit. The ABB REF615 is specifically engineered for the protection of feeders, motors, and transformers in medium-voltage switchgear up to 15 kV. It integrates seamlessly into substation automation systems, providing a critical layer of safety and reliability by detecting and isolating electrical faults such as overcurrent, earth faults, and motor stalling. Its design philosophy centers on simplicity, reliability, and interoperability.

Product Parameters

• Manufacturer: ABB
• Product Family: Relion® 615 series
• Device Type: Feeder Protection and Control Relay / IED
• Protection Functions: Includes comprehensive functions such as:
  • Overcurrent protection (definite and inverse time, phase and ground)
  • Directional overcurrent protection
  • Thermal overload protection for feeders and motors
  • Earth-fault protection (restricted, directional, sensitive)
  • Motor protection (stall, start supervision, unbalance)
  • Voltage protection (over/under voltage, residual overvoltage)
• Control Functions: Programmable logic (CFC), circuit breaker control, auto-reclosing, synchrocheck.
• Measurement: Three-phase currents and voltages, power, energy, power factor, frequency, harmonics.
• Communication Protocols: IEC 61850 (Edition 1 & 2), IEC 60870-5-103, Modbus RTU, DNP3.0.
• Inputs/Outputs: Configurable digital inputs (BI), relay outputs (BO), analog inputs.
• Power Supply: Wide range, typically 24-250 V DC/AC.

Advantages and Features

1. Comprehensive Protection in a Compact Design: The ABB REF615 packs a wide array of protection, control, and measurement functions into a single 1/2 19-inch rack unit, saving valuable panel space without compromising functionality.
2. IEC 61850 Native Communication: Native support for the IEC 61850 standard ensures seamless interoperability within modern digital substations, enabling efficient engineering and peer-to-peer communication (GOOSE) for fast interlocking and protection schemes.

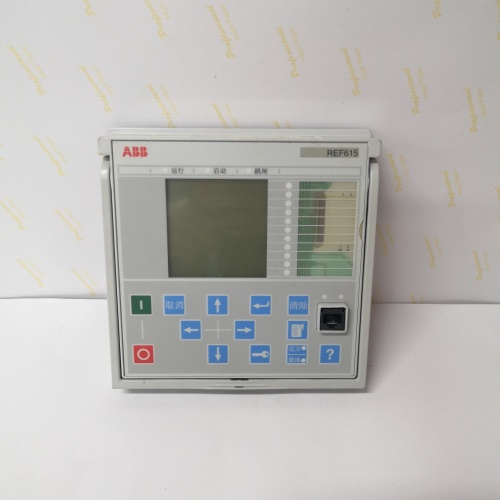

3. Intuitive Human-Machine Interface (HMI): Features a large graphical LCD display with local push-buttons, providing clear information, easy navigation for settings, and local control without the need for a PC tool in basic operations.
4. Flexible Programmable Logic: Built-in Configuration Function Chart (CFC) editor allows users to create custom control and interlocking logic tailored to specific application needs, enhancing flexibility beyond standard functions.
5. Robust and Reliable Design: Built for harsh electrical environments with high EMC immunity, the ABB REF615 ensures dependable operation critical for protection applications.

Application Cases in Key Fields

• Utility Substations: Primary protection for distribution feeders, in-feed, and out-feed circuits in primary and secondary distribution substations.
• Industrial Power Distribution: Protection of incoming lines, bus couplers, and outgoing feeders in factory main distribution boards (MV Switchgear) for industries like mining, oil & gas, and data centers.
• Renewable Energy: Protection of collection feeders in solar farms and wind parks, and interconnection points to the main grid.
• Infrastructure: Used in protection schemes for railway electrification, airport power networks, and hospital critical power systems.
• Motor Control Centers (MCC): Serves as the main protection device for medium-voltage motors in pumps, fans, and compressors, providing overload, stall, and unbalance protection.

Comparison with Competing Products
The ABB REF615 competes directly with feeder protection relays from other major manufacturers like Siemens (SIPROTEC 7SJ82), Schneider Electric (Sepam series), and GE (Multilin 850). Its key advantages include its compact size, very user-friendly local HMI, and strong native support for the latest IEC 61850 standards. Compared to basic overcurrent relays, the ABB REF615 offers vastly superior functionality, measurement, and communication. Compared to some competitors, its programming environment (PCM600 tool with CFC) is highly graphical and powerful for complex logic. The choice often comes down to existing ecosystem preference, specific protocol requirements, and engineer familiarity.

Selection Suggestions and Precautions

• Selection:
  • Identify Application: Clearly define if the ABB REF615 is for a utility feeder, industrial feeder, or motor protection application, as this influences the specific firmware version and ordered suffix.
  • Choose Correct Version (Suffix): The ABB REF615 has numerous suffixes (e.g., REF615 C NF4A) denoting hardware options (I/O count, power supply) and pre-loaded application firmware. Select the one matching your schematic and functional requirements.
  • Verify Communication Needs: Specify the required communication protocols (IEC 61850, Modbus, etc.) and order the appropriate communication modules (e.g., fiber optic ports).
• Precautions:
  1. Qualified Personnel Only: Protection relay setting, testing, and commissioning must be performed by qualified electrical engineers or technicians familiar with protection schemes.
  2. CT/VT Connection Verification: Incorrect connection of Current Transformers (CTs) and Voltage Transformers (VTs) is a common and dangerous error. Double-check polarity, ratios, and wiring before energization.
  3. Proper Setting and Coordination: Relay settings must be carefully calculated to ensure selectivity (coordination) with upstream and downstream devices. Blindly using default settings can lead to nuisance trips or failure to operate.
  4. Functional Testing: Before placing the ABB REF615 into service, perform comprehensive secondary injection testing using a protection relay test set to verify all configured protection functions operate as intended.
  5. Software and Documentation: Use the correct engineering tool (ABB PCM600) and ensure you have the latest version of the device description file (CID) for IEC 61850 engineering. Always back up the configuration file.
