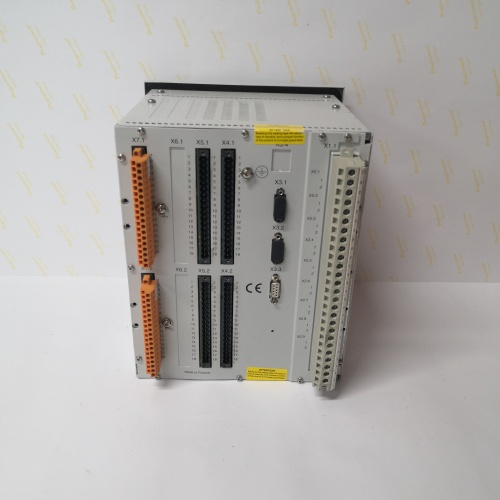

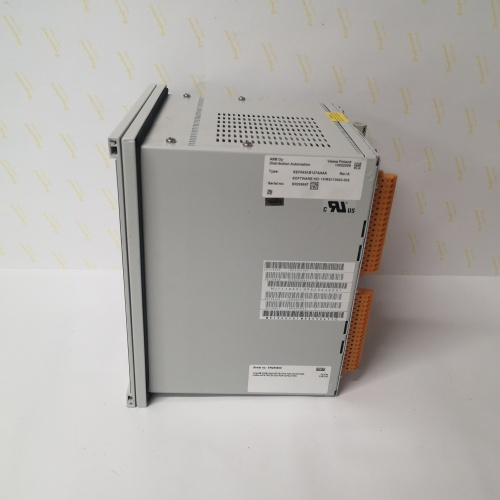

ABB REF545KC133AAAA

Description

Product Description

The ABB REF545KC133AAAA is a highly advanced feeder protection and control relay from ABB’s renowned Relion 500 series. This device is an Intelligent Electronic Device (IED) specifically engineered for the comprehensive protection, control, and monitoring of medium-voltage (MV) feeders and overhead lines in distribution networks and industrial power systems. The ABB REF545KC133AAAA integrates multiple protection functions, advanced automation features, and extensive communication capabilities into a single, compact unit. It is designed to detect and isolate electrical faults (such as overcurrent, earth faults) rapidly, ensuring the safety of personnel and equipment while maintaining power supply stability. The specific suffix “KC133AAAA” defines a precise hardware configuration, including I/O options, communication ports, and language settings. Implementing the ABB REF545KC133AAAA (https://www.example-link-abb-product.com) provides a modern, reliable, and feature-rich solution for managing electrical distribution assets. The sophistication and configurability of the ABB REF545KC133AAAA make it a cornerstone of modern electrical protection and automation schemes.

Product Parameters / Technical Specifications

• Manufacturer: ABB
• Product Family: Relion 500 Series (Feeder Protection and Control)
• Device Type: Feeder Protection and Control IED
• Model / Type Designation: REF545
• Variant / Order Code: KC133AAAA
• Key Protection Functions:
  • Three-phase and earth-fault overcurrent protection (50/51, 50N/51N)
  • Directional overcurrent protection (67, 67N)
  • Negative-sequence overcurrent protection (46)
  • Thermal overload protection for cables (49)
  • Auto-reclosing (79) for overhead lines
  • Under/overvoltage and frequency protection (27/59, 81)
• Control & Automation:
  • Programmable logic (CFC – Continuous Function Chart)
  • Circuit breaker control (open/close) and condition monitoring
  • Load shedding and restoration
• Measurement & Monitoring:
  • Comprehensive metering (V, I, P, Q, PF, Hz, kWh, etc.)
  • Event recording and disturbance recording (oscillography)
  • Circuit breaker wear monitoring
• Communication Interfaces:
  • Multiple ports supporting protocols like IEC 61850 (GOOSE, MMS), Modbus RTU/TCP, DNP3, and IEC 60870-5-103/104.
• Human-Machine Interface (HMI): Graphical LCD display with navigation keys and multilingual support (defined by variant).
• Power Supply: Wide-range AC/DC supply (e.g., 24-250V DC / 110-240V AC).
• I/O Configuration: The “KC133AAAA” suffix defines a specific set of binary inputs, relay outputs, and analog inputs.

Advantages and Key Features

• All-in-One Integrated Solution: The ABB REF545KC133AAAA consolidates protection, control, measurement, and communication in one device, reducing panel space, wiring, and device count.
• Advanced Communication with IEC 61850: Native support for the IEC 61850 standard enables seamless integration into modern digital substations, allowing for high-speed peer-to-peer communication (GOOSE) and efficient SCADA integration.
• Flexible Application Logic: Built-in programmable logic (CFC) allows for the implementation of custom automation sequences and interlocks without external PLCs.
• Superior Diagnostics & Data: Extensive event logging, disturbance recording, and condition monitoring data facilitate quick fault analysis, root cause identification, and predictive maintenance.
• User-Friendly Operation: The graphical HMI and intuitive parameter setting via PCM600 engineering tool simplify configuration, operation, and maintenance.

Application Cases in Various Fields

• Distribution Substations: Primary protection and control for outgoing medium-voltage feeder circuits in utility and industrial substations.
• Industrial Power Distribution: Protecting and controlling incoming utility feeders or distribution feeders within large manufacturing plants, mines, or oil & gas facilities.
• Renewable Energy Plants: Serving as the grid connection protection for solar PV farms or wind parks, often with directional overcurrent functions.
• Infrastructure Projects: Used in protection schemes for airports, data centers, and hospital power systems.
• Railway Electrification: Protecting traction power supply feeders.

Comparison with Competing Products

The ABB REF545KC133AAAA competes directly with other advanced feeder protection relays such as the Siemens 7SJ82 (SIPROTEC), Schneider Electric Sepam, and GE Multilin 850. Its primary advantages are its strong support for the IEC 61850 standard, its flexible internal logic (CFC), and its integration within ABB’s comprehensive substation automation portfolio. Compared to a protection scheme using separate overcurrent, earth fault, and recloser relays, the REF545KC133AAAA offers superior functionality, data integration, and flexibility at a lower overall installed cost and complexity.

Selection Suggestions and Precautions

• Selection Advice: Select the ABB REF545KC133AAAA for new or retrofit projects requiring advanced protection, control, and communication for medium-voltage feeder circuits. It is ideal for applications targeting digital substation architecture (IEC 61850). The specific variant “KC133AAAA” must be chosen based on the required I/O count, communication protocols, and HMI language.
• Precautions:
  1. CT & VT Requirements: Correct specification and connection of Current Transformers (CTs) and Voltage Transformers (VTs) are critical. The relay settings must match the CT/VT ratios and connection types exactly.
  2. Protection Coordination Study: A proper coordination study is required to set the time-current curves (TCCs) for overcurrent and earth-fault protection to ensure selective tripping with upstream and downstream devices.
  3. Software & Configuration Management: Configuration is done using ABB’s PCM600 software. Always back up the relay settings file (“*.hid”). Firmware and software version compatibility must be maintained.
  4. Commissioning Testing: Comprehensive testing with a secondary injection test set is mandatory to verify all protection, control, and communication functions before commissioning.
  5. Cyber Security: When connected to station or enterprise networks, the relay must be integrated into the cyber security framework. Change default passwords, manage user accounts, and implement network segmentation/firewalls as needed.
