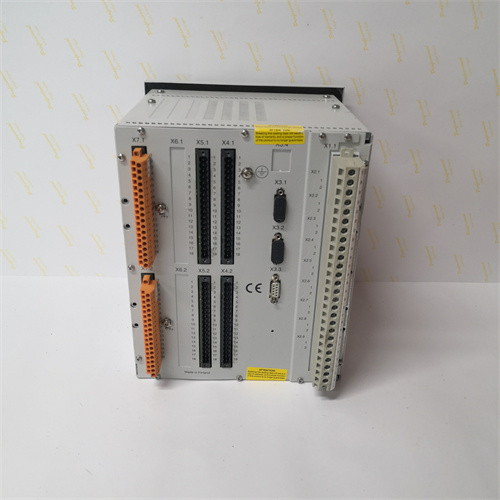

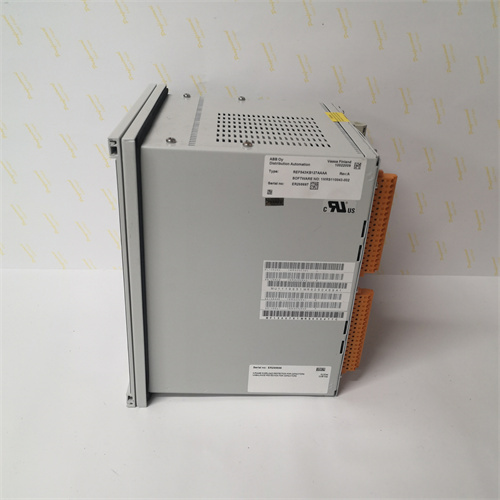

ABB REF543KB127AAAA

Product Description

Technical Specifications

• Product Type: Medium-voltage protection and control relay (for MV power distribution)
• Rated Voltage Range: Up to 36kV (via voltage transformers, VT ratio configurable)
• Rated Current Range: 5A or 1A (via current transformers, CT ratio configurable)
• Protection Functions:
  • Overcurrent (50/51) with time inverse or definite time characteristics
  • Earth fault (50N/51N) with high- and low-set options
  • Thermal overload (49) for motor or transformer protection
  • Frequency protection (81U/81O) for under/overfrequency conditions
• Control Outputs: 8 digital outputs (relay contacts, 5A/250V AC) for circuit breaker tripping/Closing
• Measurement Parameters: Current, voltage, power (active/reactive), energy, frequency, power factor
• Communication Protocols: IEC 61850 (GOOSE/MMS), Modbus TCP, DNP3.0 (optional)
• Operating Temperature Range: -25°C to +70°C (suitable for outdoor switchgear)
• Storage Temperature Range: -40°C to +85°C
• Enclosure Rating: IP54 (dust and water splashing protection, suitable for switchgear cabinets)
• Dimensions: 210mm (W) × 260mm (H) × 170mm (D) (panel-mount size)
• Weight: Approximately 2.5kg
• Power Supply: 110/220V AC/DC (±15% tolerance), current consumption ≤ 15W
• Safety Certifications: IEC 60255, UL 508, CSA C22.2 No. 14 (complies with global MV protection standards)
• Model Number: ABB REF543KB127AAAA (ABB official part number)

Advantages and Features

1. Comprehensive Protection & Control: ABB REF543KB127AAAA integrates over 10 protection functions (e.g., overcurrent, earth fault) and control capabilities in one device, eliminating the need for multiple standalone relays and reducing switchgear complexity.
2. IEC 61850 Compliance: Support for IEC 61850 (GOOSE) enables fast (<1ms) fault signaling to PLCs and other relays, critical for MV systems where rapid fault isolation prevents cascading failures.
3. Wide Environmental Tolerance: -25°C to +70°C operating temperature and IP54 enclosure rating allow installation in outdoor switchgear or harsh industrial environments (e.g., cement plants, solar farms), ensuring year-round reliability.
4. Flexible Programming: ABB PCM600 software lets users customize protection logic and CT/VT ratios, adapting ABB REF543KB127AAAA to diverse MV networks (e.g., factory feeders, renewable energy inverters) without hardware modifications.
5. Seamless PLC Integration: Modbus TCP and IEC 61850 protocols enable real-time data sharing with PLCs—PLCs can monitor energy consumption, fault records, and relay status, supporting predictive maintenance and centralized control.

Application Fields and Cases

• Manufacturing (Factory MV Distribution): In an automotive assembly plant’s 10kV MV network, ABB REF543KB127AAAA protects MV feeders powering robot cells and welding machines. When a short circuit occurs in a welding line, the relay detects overcurrent, trips the feeder circuit breaker in 50ms, and sends a fault alert to the plant’s ABB AC500 PLC. The PLC then redirects power to backup feeders, minimizing production downtime.
• Renewable Energy (Solar Farm): A 50MW solar farm uses ABB REF543KB127AAAA to protect MV inverters (connected to 20kV grid). The relay monitors grid frequency and voltage—if the grid frequency drops below 49.5Hz (underfrequency), it disconnects the inverter from the grid (per grid codes) and notifies the Siemens S7-1500 PLC. The PLC logs the event and triggers a maintenance alert for grid engineers.
• Data Center (Critical Power Supply): A Tier 4 data center’s 15kV MV system uses ABB REF543KB127AAAA to protect backup generators and UPS feeders. The relay’s earth fault protection detects insulation faults in generator windings, isolating the generator before damage occurs. It transmits real-time generator current and voltage data to the data center’s SCADA-PLC system, enabling 24/7 remote monitoring.
• Mining (Underground MV Networks): An underground coal mine’s 6kV MV network uses ABB REF543KB127AAAA in explosion-proof switchgear. The relay’s wide temperature tolerance (-25°C to +70°C) withstands underground temperature fluctuations, while its overcurrent protection safeguards MV pumps and conveyors. Fault data is sent to a surface-based PLC, allowing remote fault diagnosis without sending technicians underground.

Comparison with Competitors

Selection Recommendations and Precautions

Selection Recommendations

1. By MV Network Voltage: Confirm the network voltage (up to 36kV for ABB REF543KB127AAAA) and CT/VT ratios—ensure the relay’s rated current/voltage ranges match your system’s transformers (e.g., 5A CT for factory networks, 1A CT for renewable energy grids).
2. By Protection Needs: Choose ABB REF543KB127AAAA if you require frequency protection (e.g., solar/wind farms) or thermal overload protection (e.g., motor feeders)—competitors may lack these functions for specific use cases.
3. By Communication Requirements: Prioritize ABB REF543KB127AAAA for IEC 61850-based systems (e.g., smart grids, data centers) due to its fast GOOSE messaging; for Modbus-only systems, competitors may be more cost-effective.

Precautions

1. CT/VT Configuration: Correctly set CT/VT ratios in ABB PCM600—incorrect ratios will cause measurement errors and incorrect protection tripping, compromising ABB REF543KB127AAAA’s performance.
2. Wiring Safety: Use shielded cables for communication (IEC 61850/Modbus) to avoid EMI from MV cables; separate control wires (trip/close) from power wires to prevent signal interference.
3. Software Updates: Regularly update ABB REF543KB127AAAA’s firmware via PCM600 to fix bugs and add new features (e.g., updated grid codes for renewable energy integration).
4. Fault Record Analysis: Periodically review the relay’s fault records (stored locally or in the PLC) to identify recurring issues (e.g., frequent overcurrent) and optimize MV network design—this extends equipment life and reduces downtime.
