ABB REF542PLUS 1VCR007346

Description

Product Description

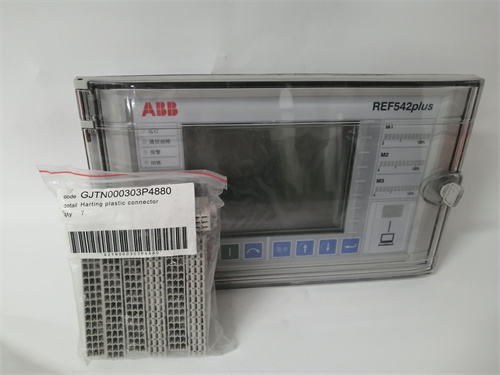

The ABB REF542PLUS 1VCR007346 is a sophisticated and multifunctional Feeder Terminal / Protection and Control Unit designed for medium-voltage switchgear in electrical power distribution networks. This device is an intelligent electronic device (IED) that combines protection, control, measurement, and communication functions into a single, compact unit for primary distribution feeders, transformers, and motors. The ABB REF542PLUS is the product series, while 1VCR007346 is the specific order code defining the hardware configuration and pre-loaded functionality. Its primary role is to protect electrical assets by continuously monitoring current, voltage, and other parameters to detect faults (overcurrent, earth fault) and command circuit breakers to trip, while also providing advanced automation and remote control capabilities via SCADA. For electrical engineers and network operators, deploying a unit like the REF542PLUS is essential for ensuring the safety, reliability, and observability of the power distribution system. The intelligence and connectivity of this terminal make it a key component in modern smart grid and substation automation projects.

Product Parameters

• Device Type: Numerical Feeder Protection and Control Terminal (IED).
• Product Family: ABB REF 542plus.
• Order Code: 1VCR007346 (specifies hardware options, communication, and standard application).
• Protection Functions: Includes a comprehensive set of ANSI/IEC-protected functions such as:
  • Overcurrent (50/51, 50N/51N)
  • Directional Overcurrent (67/67N)
  • Earth Fault Protection
  • Thermal Overload (49)
  • Under/Over Voltage (27/59)
  • Under/Over Frequency (81)
• Control Functions: Circuit breaker control (open/close), interlocking, auto-reclosing (79), and sequence control.
• Measurement: High-accuracy measurement of currents, voltages, power, power factor, energy, and harmonics.
• Communication Interfaces: Typically includes:
  • Ethernet (IEC 61850, Modbus TCP/IP, DNP3 over IP)
  • Serial ports (RS-485 for Modbus RTU, IEC 60870-5-103)
• I/O Capacity: A configurable number of binary inputs (for status signals) and relay outputs (for trip, alarm, and control).
• Display: Local HMI with graphical display for local operation, event logging, and oscillography.

Advantages and Features

• Integrated Multifunctionality: Replaces multiple discrete relays (overcurrent, earth fault, voltage) and meters with a single, software-configurable device, reducing panel space, wiring, and commissioning time.
• IEC 61850 Ready: Native support for the IEC 61850 standard for substation communication enables seamless integration into modern digital substations, providing interoperability and advanced features like GOOSE messaging for fast interlocking.
• Advanced Automation: Built-in programmable logic (similar to a PLC) allows for the implementation of custom control sequences, interlocking schemes, and automation functions without external devices.
• Detailed Event Reporting and Oscillography: Records sequence of events (SOE) with millisecond accuracy and disturbance records (fault waveforms), which are invaluable for post-fault analysis and system diagnostics.
• User-Friendly Configuration: Configured using ABB’s dedicated PCM600 or similar engineering tool, allowing for flexible adaptation to specific application needs through parameter settings and logic editor.

Application Cases in Application Fields

• Electrical Utility Distribution Substations: Protecting and controlling outgoing 10kV or 20kV feeders from a primary substation.
• Industrial Plant Power Distribution: Serving as the main protection and control unit for the incoming medium-voltage feeder and for large downstream transformers or motors within a factory.
• Renewable Energy Plants (Solar/Wind): Protecting the connection feeder from a solar park or wind farm to the grid, often incorporating directional protection and power quality monitoring.
• Commercial & Hospital Campuses: Managing the medium-voltage ring main unit (RMU) network that distributes power across large facilities.
• Railway Power Supply: Protecting traction power feeders in railway electrification systems.

Comparisons with Competing Products
The ABB REF542PLUS competes directly with other feeder management terminals such as the Siemens SIPROTEC 7SJ80, Schneider Electric Micom P3xx, and GE (Grid Solutions) MiCOM Px4x series. Compared to these, the REF542PLUS 1VCR007346 is particularly recognized for its strong integration within ABB’s substation automation system (SPS) and its powerful internal programmable logic controller (PLC) functionality, which allows for deep customization. Its key advantage is offering a balanced and highly configurable feature set in a robust package, making it a versatile choice for both traditional hardwired and modern IEC 61850-based substation designs.

Selection Suggestions and Precautions

1. Define Application Requirements Precisely: List all required protection functions (ANSI numbers), measurement needs, I/O count, and communication protocols before selecting the specific order code (1VCR007346). Ensure it matches your schematic.
2. CT/VT Compatibility and Rating: Verify the current transformer (CT) and voltage transformer (VT) ratios are correctly configured in the device settings. The REF542PLUS must be matched to the specific instrument transformer secondary ratings (1A/5A, 110V/120V).
3. Cybersecurity Hardening: When connected to Ethernet networks, the device’s cybersecurity features (passwords, access control, disabled unused services) must be rigorously configured before commissioning to protect critical infrastructure.
4. Proper Testing and Commissioning: The device and its associated protection schemes must be thoroughly tested using primary injection test sets to verify trip thresholds, timing, and logic. This is a safety-critical step.
5. Software and Documentation: Configuration requires ABB’s engineering software (PCM600). Ensure you have the correct version and the specific device description file (CID file) for the 1VCR007346 hardware. Maintain detailed documentation of all settings.
