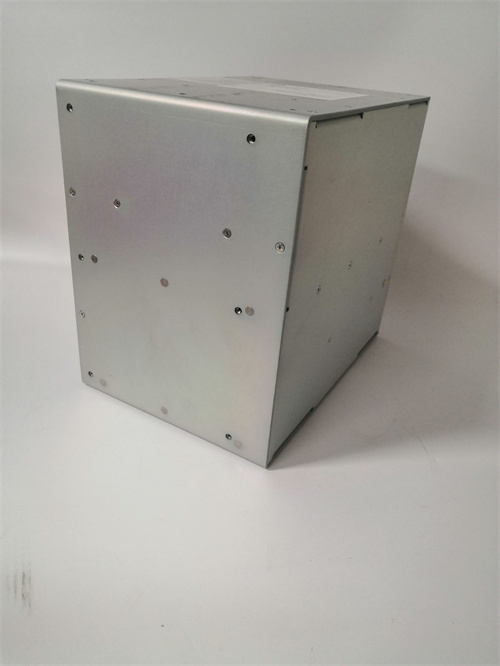

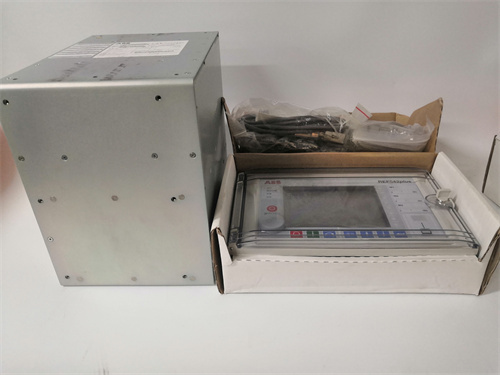

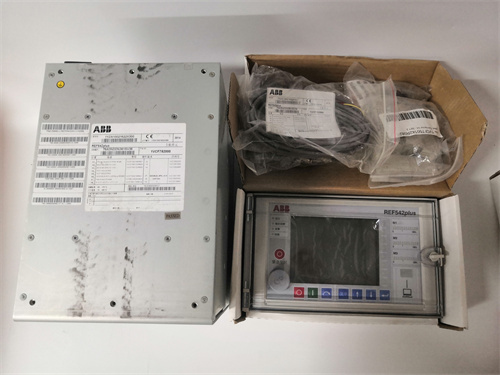

ABB REF542PLUS

Description

Product Description

The ABB REF542PLUS is an advanced feeder terminal unit (FTU) and bay controller designed for comprehensive protection, control, and monitoring of medium-voltage switchgear and distribution networks. This intelligent electronic device (IED) integrates multiple functions into a single, compact unit, serving as a local automation hub for substations and industrial power systems. The primary role of the ABB REF542PLUS is to provide reliable protection for feeders, transformers, and motors, while also executing local control logic, managing bay-level automation, and communicating with SCADA systems. Its design emphasizes ease of use, robust communication, and flexibility, making the REF542PLUS a cornerstone of modern distribution automation and smart grid applications.

Product Parameters

• Product Type: Feeder Terminal Unit / Bay Controller / Multifunction Protection Relay.
• Protection Functions: Comprehensive suite including overcurrent (definite and inverse time), earth-fault, thermal overload for feeders and motors, under/overvoltage, under/overfrequency, auto-recloser, and breaker failure protection.
• Control Functions: Programmable logic control (PLC) with IEC 61131-3 compliant function blocks for custom bay control, interlocking, and sequencing.
• Measurement: Accurate measurement of all electrical parameters: current, voltage, power, power factor, energy, harmonics, and demand values.
• Communication: Extensive communication options including IEC 61850 (Edition 1 & 2), Modbus RTU/TCP, DNP3.0, and PROFIBUS DP, enabling seamless integration into modern substation automation systems (SAS).
• HMI Interface: Large graphical LCD display with intuitive menu navigation and a keypad for local operation and configuration.
• I/O Capacity: Configurable mix of binary inputs, relay outputs, and analog inputs to interface with switchgear, sensors, and other field devices.
• Standards: Compliant with key international standards for protection (IEC 60255) and communication (IEC 61850).

Advantages and Key Features

• All-in-One Integration: The ABB REF542PLUS combines protection, control, measurement, and communication in one device, reducing panel space, wiring complexity, and overall system cost compared to using separate relays, PLCs, and meters.
• IEC 61850 Ready: Native support for IEC 61850, including GOOSE messaging for fast inter-device communication and Sampled Values for process bus applications, making it a future-proof choice for digital substations.
• Flexible Programmable Logic: The built-in PLC functionality allows for the implementation of complex bay control schemes, interlocking sequences, and custom automation logic without the need for an external programmable logic controller.
• Advanced Metering and Power Quality: Provides high-accuracy energy metering and power quality analysis (harmonics, sags/swells), supporting both operational decisions and energy management strategies.
• User-Friendly Configuration: Configured using ABB’s PCM600 or Relay Configuration Manager software, which offers intuitive setting management, logic diagram editors, and comprehensive documentation tools.

Application Case Studies

• Industrial Plant Medium-Voltage Feeder Protection: The ABB REF542PLUS is used to protect and control an outgoing 10kV feeder to a critical production unit. It provides overcurrent and earth-fault protection, controls the vacuum circuit breaker, monitors energy consumption for the unit, and communicates all data to the plant’s SCADA via IEC 61850.
• Ring Main Unit (RMU) Automation in a Distribution Network: Installed in an outdoor RMU, the unit provides full protection for the transformer and cable feeders. Its auto-recloser function improves supply continuity, and its GOOSE messaging capability allows for fast fault isolation and service restoration within the ring network.
• Wind or Solar Farm Collection Substation: Acts as the bay controller for the connection point to the main grid. It provides directional power protection, synchronism check, voltage/frequency control functions, and aggregates generation data for reporting to the renewable energy plant controller.

Comparison with Competing Products

The ABB REF542PLUS competes directly with other advanced feeder protection and control units such as the Siemens SIPROTEC 7SJ82 and the GE Multilin F650. Compared to traditional combinations of a protection relay and a separate RTU/PLC, the integrated REF542PLUS offers superior functionality in a single package. Its key differentiators are the depth of its built-in programmable logic (rivaling small PLCs) and its robust, native implementation of the full IEC 61850 protocol suite. While competitors offer similar core protection, the ABB REF542PLUS is often noted for its excellent HMI and software usability, making it a preferred choice for engineers designing sophisticated bay-level automation.

Selection Suggestions and Precautions

• Selection Suggestion: Select the ABB REF542PLUS for medium-voltage distribution applications requiring an integrated solution for protection, control, and communication. It is ideal for utility substations, industrial primary distribution, and renewable energy connections, especially where IEC 61850 integration or complex local logic is needed.
• Precautions:
  1. CT/VT Requirements and Saturation: Ensure the connected current and voltage transformers are correctly rated and sized to avoid saturation during faults, which could compromise protection performance. The REF542PLUS settings must match the CT/VT ratios precisely.
  2. Logic Configuration Complexity: Leveraging the full PLC capabilities requires proper engineering. Ensure personnel are trained or have access to expertise in configuring the device’s programmable logic to avoid errors in control sequences or interlocking.
  3. Communication Network Design: When using IEC 61850, careful network planning is required, including switch configuration, VLAN setup, and SCADA/station HMI engineering. Improper network design can lead to communication failures or non-deterministic performance.
  4. Testing and Commissioning: Comprehensive testing using secondary injection test sets is mandatory. This includes testing each protection function, verifying the operation of the programmable logic, and validating all communication and GOOSE messages with other IEDs in the system.
