ABB REF541KM115AAA

Description

Product Description

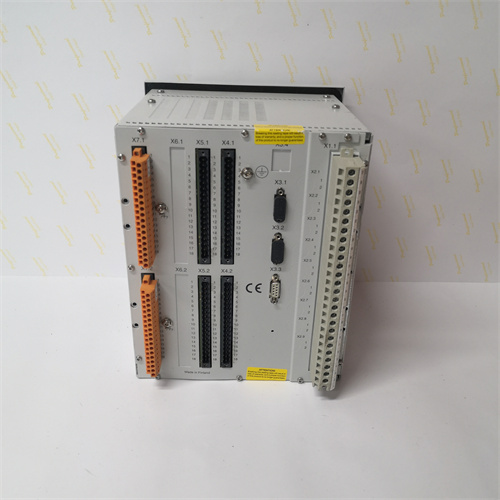

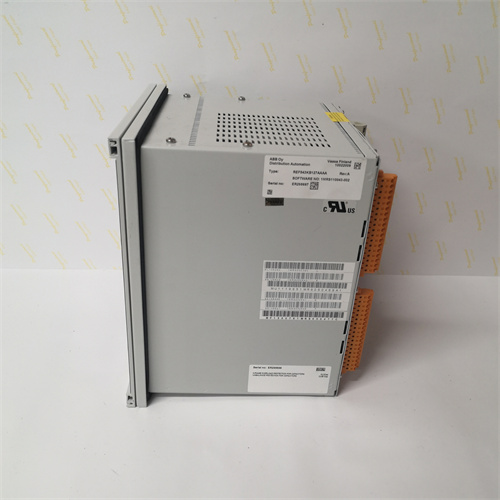

The ABB REF541KM115AAA is a versatile and compact feeder protection and control terminal from ABB’s renowned Relion® product family. Designed for medium-voltage applications, this specific model, the ABB REF541KM115AAA, integrates comprehensive protection, advanced control, precise measurement, and condition monitoring functions into a single, robust device. It serves as a critical intelligent electronic device (IED) within electrical distribution networks and industrial power systems.the ABB REF541KM115AAA facilitates the safe, reliable, and efficient operation of feeders, motors, and transformers, making it a key component for automation engineers integrating power management with PLC and SCADA systems.

Product Parameters

• Product Type: Numerical Feeder Protection and Control Terminal (IED).
• Brand & Series: ABB, Relion® 541 series.
• Model: ABB REF541KM115AAA (The suffix denotes specific hardware configuration and options).
• Protection Functions: Includes overcurrent (phase, ground), thermal overload, voltage protection (under/over), frequency protection, breaker failure, and auto-reclosing.
• Control Functions: Programmable logic (CFC), sequence of events (SOE) recording, disturbance recorder, and integrated circuit breaker control.
• Measurement: Three-phase currents, voltages, power, power factor, energy, and harmonics.
• Communication Protocols: Typically supports IEC 61850, Modbus RTU/TCP, and DNP3 for seamless integration into automation networks.
• Inputs/Outputs: Configurable binary inputs, relay outputs, and analog inputs.
• Rated Current: 1 A or 5 A (as indicated by the model suffix; ‘1A’ in this case likely signifies 1 Amp secondary current input).
• Power Supply: Available in various DC or AC voltage ranges.
• Mounting: Panel or DIN-rail mounting options.

Advantages and Features

The ABB REF541KM115AAA provides significant advantages through its multifunctionality and ease of integration. Its primary feature is the consolidation of multiple protection, control, and measurement devices into one unit, saving panel space and reducing wiring complexity. The terminal offers high-speed, accurate protection algorithms and detailed event recording for precise fault analysis. The integrated programmable logic (CFC) allows for custom control schemes without external hardware. Its support for modern communication standards like IEC 61850 enables easy data exchange with higher-level PLCs and SCADA systems, supporting advanced grid automation and Industry 4.0 applications.

Application Cases in Application Fields

This protection terminal is widely used across utility and industrial sectors. In factory power distribution, the ABB REF541KM115AAA protects and controls incoming medium-voltage feeders, interconnectors, and bus sections, providing data to the plant’s energy management system. For renewable energy, it safeguards collection feeders in solar parks and wind farms. In infrastructure such as airports and hospitals, it ensures reliable protection for critical power supply circuits. The ABB REF541KM115AAA is also applied to protect large medium-voltage motors or transformers in industries like mining, water treatment, and oil & gas, where its control logic can manage start/stop sequences and interlocking.

Comparisons with Competing Products

Compared to traditional electromechanical relays or simple microprocessor-based relays, the ABB REF541KM115AAA offers a vastly superior feature set, diagnostics, and communication capabilities. Against other modern IEDs from competitors like Siemens (SIPROTEC 7SJ8x) or Schneider Electric (Sepam series), the ABB REF541KM115AAA is highly competitive, often praised for its intuitive PCM600 configuration tool and the flexibility of its CFC logic. The specific model ABB REF541KM115AAA, with its tailored configuration, provides an optimized, cost-effective package for standard feeder protection applications compared to purchasing and engineering a solution from individual functional modules.

Selection Suggestions and Precautions

• Configuration Code: Carefully analyze the model suffix (KM115AAA). This code defines the hardware options (I/O count, communication ports, current input rating). Ensure it matches your application’s exact requirements for binary inputs, relay outputs, and CT secondary current (1A or 5A).
• System Integration: Clearly define your communication protocol needs (IEC 61850, Modbus, etc.) for integration with your specific SCADA, DCS, or PLC network.
• CT/VT Requirements: Verify compatibility with your existing current and voltage transformer ratios and accuracy classes.
• Protection Coordination: Protection settings must be carefully calculated by a qualified engineer to ensure proper coordination with upstream and downstream protective devices.
• Configuration and Testing: Always use the official ABB PCM600 software for configuration and perform thorough primary and secondary injection testing after installation.
