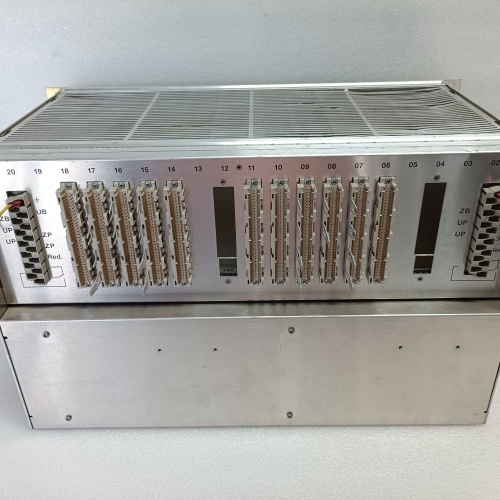

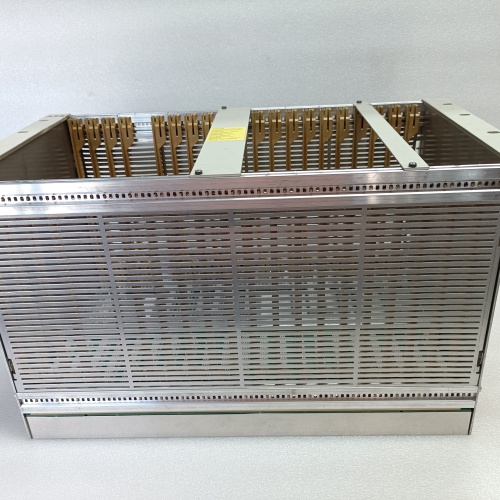

ABB REA101-AAA

Description

Product Description

The ABB REA101-AAA is a high-performance, low-impedance busbar differential protection relay from ABB’s Relion® 600 series, specifically the RED 600 line. This device is a dedicated and intelligent protection relay, not a traditional PLC module, designed to provide ultra-fast and selective protection for electrical busbars in substations and industrial power distribution systems. Its primary function is to compare the current entering and leaving a busbar section; if an internal fault occurs (e.g., a short circuit on the bus), the currents become unbalanced, and the ABB REA101 issues a trip command to all connected circuit breakers to isolate the faulted section. This relay is critical for maintaining power system stability and preventing extensive damage to switchgear. As a sophisticated Intelligent Electronic Device (IED), it combines protection, control, measurement, and communication in one unit. The reliable and precise operation of the ABB REA101-AAA is paramount for the safety and availability of medium and high-voltage electrical networks.

Product Parameters

• Device Family: ABB Relion 600 Series (RED 600 Line).
• Device Type: Low-Impedance Busbar Differential Protection Relay.
• Protection Function: Primary function is busbar differential protection (87B).
• Number of Feeder Bays: Configurable to protect busbars with a specific number of incoming and outgoing feeders (e.g., up to 24 bays).
• Current Inputs: Multiple current inputs from current transformers (CTs) on each feeder connected to the protected busbar.
• Operating Principle: Low-impedance voltage-operated differential principle, which is stable during external faults and CT saturation.
• Communication Protocols: Supports IEC 61850 (station bus and process bus), IEC 60870-5-103/104, Modbus, and DNP3.0.
• HMI: Large graphical LCD display and keypad for local operation.
• Power Supply: Wide-range DC or AC supply (e.g., 48-250V DC / 110-240V AC).
• Certifications: Compliant with major international standards for electrical protection.

Advantages and Features

• High-Speed and Selective Protection: Provides extremely fast tripping (typically within one cycle) for internal busbar faults, minimizing fault energy and damage, while remaining stable during external faults.
• Stability During CT Saturation: The low-impedance design and advanced algorithms ensure the ABB REA101-AAA remains stable even if one or more current transformers saturate during a close-in external fault, which is a common challenge for busbar protection.
• Flexible and Scalable Configuration: Can be configured for various busbar arrangements (single bus, double bus, breaker-and-a-half) and expanded to accommodate additional bays.
• Comprehensive Monitoring and Diagnostics: Provides extensive event recording, disturbance recording, and detailed self-diagnostics for condition monitoring.
• Future-Proof IEC 61850 Integration: Native support for IEC 61850 enables seamless integration into modern digital substations, allowing for simplified engineering and high-speed communication via GOOSE and sampled values.

Application Cases in Application Fields

• Electrical Transmission Substations: Primary protection for high-voltage (e.g., 230kV, 138kV) busbars connecting multiple transmission lines and transformers.
• Industrial Power Plant Switchgear: Protects the main generator bus or the medium-voltage distribution bus within a plant.
• Large Industrial Complexes: Guards the critical medium-voltage busbars distributing power to different process units in refineries, chemical plants, or steel mills.
• Data Center Power Distribution: Provides high-speed protection for the essential electrical buswork ensuring power availability.

Comparisons with Competing Products

• Vs. Siemens SIPROTEC 7SS85 Busbar Protection Relay: Siemens offers a direct competitor with similar functionality. The competition is intense, focusing on algorithm performance during CT saturation, ease of configuration for complex busbar topologies, and integration with respective vendor substation automation systems (ABB System 800xA vs. Siemens SICAM).
• Vs. GE Multilin B30 Bus Differential System: GE’s system is also a key player. The ABB REA101-AAA differentiates itself with its specific implementation of the low-impedance principle and its user interface within the Relion 600 series platform.
• Vs. High-Impedance Differential Relays: Traditional high-impedance relays are simpler but require identical CTs and are more susceptible to CT saturation issues. The ABB REA101-AAA low-impedance design offers greater flexibility with CT characteristics and superior stability.

Selection Suggestions and Precautions

1. Detailed System Study Required: The application requires a full system design by a protection engineer. This includes a detailed single-line diagram, fault studies, and CT dimensioning/selection to ensure all CTs are compatible and will not saturate under maximum fault current.
2. CT Requirements are Critical: The performance of the ABB REA101-AAA is highly dependent on proper CT selection. CTs must have adequate kneepoint voltage and similar transformation ratios. Mixing different CT types on the same busbar is not recommended.
3. IEC 61850 System Engineering: If using IEC 61850, the configuration of the ABB REA101-AAA is part of a holistic System Configuration Description (SCD) file. This requires specialized system engineering knowledge.
4. Comprehensive Testing Mandatory: Before energization, the entire protection scheme, including the relay, CT circuits, and trip outputs, must undergo rigorous primary and secondary injection testing to validate settings and logic.
5. Software and Specialized Knowledge: Configuration requires ABB’s PCM600 software and specialized training in busbar protection principles. This is not a task for general automation or PLC engineers.
