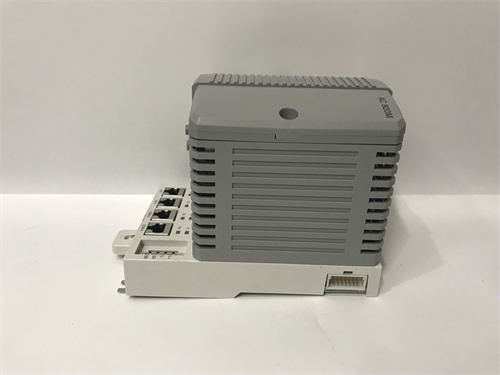

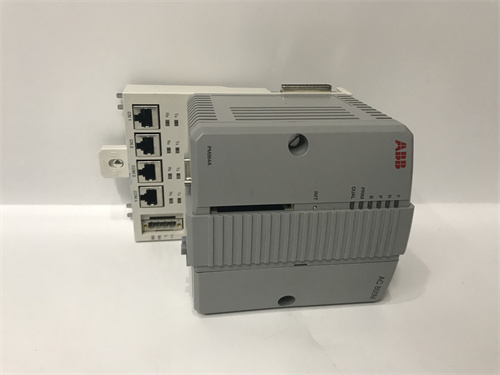

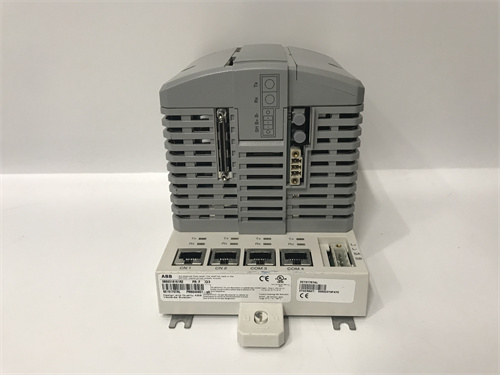

ABB PM864AK01-EA

Description

The ABB PM864AK01-EA is a high-performance process controller module from ABB’s System 800xA AC800M series, specifically designed for demanding industrial automation and process control applications. This controller provides advanced regulatory control, logic, and sequence execution capabilities in a compact, high-availability package. The ABB PM864AK01-EA represents the enhanced availability variant of the PM864 platform, incorporating redundant communication interfaces and extended diagnostic coverage for mission-critical continuous process operations.

Product Overview and Description

The ABB PM864AK01-EA functions as the central processing unit within AC800M control systems, executing application programs developed in ABB’s 800xA control software environment. This controller features a high-performance RISC processor with floating-point unit, optimized for complex regulatory control algorithms and high-speed logic execution. The ABB PM864AK01-EA incorporates dual Ethernet ports supporting redundant network topologies and seamless failover without process disturbance. Designed for continuous operation in demanding process environments, the module features extended temperature rating, conformal coating for corrosive atmosphere resistance, and comprehensive hardware-based self-diagnostics. The enhanced availability designation indicates full 1000BASE-T Gigabit Ethernet support and extended memory configuration compared to base PM864 models.

Key Parameters and Specifications

• Processor: 32-bit RISC, 133 MHz, integrated FPU.
• Application Memory: 64 MB RAM, 32 MB Flash for program storage.
• Cycle Time: 10 ms typical for mixed logic/regulatory applications.
• Ethernet Ports: 2x 10/100/1000BASE-T, IEEE 1588 precision time protocol support.
• Serial Ports: 2x RS-232C, configurable for Modbus RTU master/slave.
• Redundancy: Supports CPU redundancy with automatic synchronization and bumpless transfer.
• I/O Capacity: Up to 96 S800 I/O modules, 1536 I/O channels typical.
• Fieldbus Support: PROFIBUS DP master, Modbus TCP, IEC 60870-5-104 via communication modules.
• Battery Backup: Lithium battery for real-time clock, 10-year typical life.
• Certification: CE, UL, CSA, ATEX Zone 2, DNV-GL marine type approved.
• Power Consumption: 800 mA from +24 VDC typical.
• Mounting: DIN rail or panel mount, single-slot width.

Advantages and Functional Benefits

The ABB PM864AK01-EA delivers distinct operational advantages for continuous process applications:

1. Enhanced Availability Architecture: Redundant Ethernet interfaces with automatic media fault detection and switchover within one controller cycle; redundant CPU configuration supports primary/standby operation with full program synchronization.
2. High-Performance Processing: 133 MHz RISC processor with FPU executes complex PID algorithms and model predictive control routines without scan time penalty.
3. Gigabit Ethernet Readiness: 1000BASE-T support enables future network upgrades without controller replacement, protecting capital investment.
4. Extended Environmental Specification: -25°C to +70°C operating range with conformal coating standard; suitable for unattended installations in extreme climates.
5. Marine Certification: DNV-GL, Lloyd’s Register, ABS type approval simplifies vessel automation system certification.

Application Fields and Use Cases

The ABB PM864AK01-EA is extensively deployed across continuous process industries requiring high availability and deterministic control:

• Oil & Gas Production: Wellhead control platforms, pipeline leak detection systems, and gas plant fractionation units.
• Refining: Crude unit preheat trains, catalytic cracking regenerator control, and product blending systems.
• Chemical Processing: Batch reactor temperature profiling, continuous polymer extrusion control, and hazardous area interlock systems.
• Power Generation: Combined cycle plant balance-of-plant control, emissions monitoring and reduction systems.
• Marine: Integrated platform management systems, dynamic positioning controller interfaces.

Competitor Comparison

When evaluated against alternative process controllers, the ABB PM864AK01-EA demonstrates distinctive positioning. Siemens S7-410 offers comparable regulatory control capabilities but requires SIMATIC PCS 7 environment and exhibits significantly higher engineering station licensing costs. Emerson DeltaV M-series controllers provide superior batch management functionality but at approximately 30% higher hardware acquisition cost. The ABB PM864AK01-EA excels in hybrid applications requiring integrated logic, regulatory, and sequential control within a single programming environment. Honeywell C300 controllers offer comparable performance but necessitate Experion PKS platform migration, whereas the ABB PM864AK01-EA preserves existing 800xA engineering investments. While Rockwell Automation ControlLogix L85 dominates North American discrete manufacturing, the ABB PM864AK01-EA maintains leadership in European process industries and marine automation sectors.

Selection Recommendations and Precautions

• Controller Redundancy: The ABB PM864AK01-EA supports 1:1 hot-standby redundancy using BC820 synchronization modules; verify backplane capacity and power supply headroom before installing redundant pairs. Redundant configurations require identical controller firmware revisions and application programs.
• Firmware Compatibility: Confirm ABB PM864AK01-EA firmware revision aligns with 800xA control software version. Units manufactured after 2020 require 800xA 6.1.1 or greater; earlier firmware revisions lack Gigabit Ethernet support.
• Battery Maintenance: The ABB PM864AK01-EA real-time clock battery provides 10-year typical service life; record installation date and schedule replacement at 8-year intervals. Battery failure does not affect program execution but causes time-stamp errors in event sequences.
• Ethernet Configuration: For redundant network topologies, connect primary and secondary ports to separate physical networks; connecting both ports to same switch eliminates redundancy benefits. The ABB PM864AK01-EA detects media faults within 500 ms and initiates switchover within one controller cycle.
• I/O Bus Extension: Maximum S800 I/O distance from ABB PM864AK01-EA is 100 meters using fiber-optic extension modules; copper distances exceeding 50 meters require CE compliance verification and may require external surge suppression.
• Application Memory: The ABB PM864AK01-EA provides 64 MB application memory; monitor utilization during development. Complex applications exceeding 80% memory utilization may experience extended compile times; consider program segmentation or upgrade path evaluation.
• Environmental Limits: Standard variant rated -25°C to +70°C; verify installation temperature does not exceed 60°C continuous for 10+ year service life expectations. Derate maximum operating temperature by 10°C for installations above 2000 meters altitude.
• Spare Parts Strategy: The ABB PM864AK01-EA remains in active production; maintain minimum 15% spares inventory for critical process units. Current manufacturing lead times extend to 14-18 weeks; emergency repair service available for qualifying sites.
