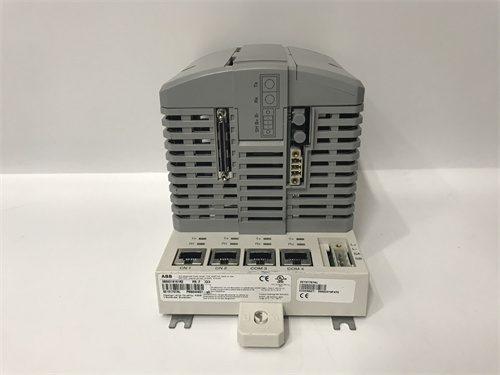

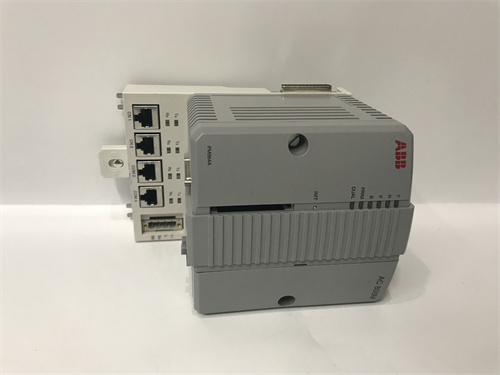

ABB PM864AK01-EA

Description

Product Overview and Description

The ABB PM864AK01-EA is a high-performance, two-lane redundant Central Processing Unit (CPU) for the AC 800M controller family, forming the computational heart of ABB’s premier distributed control system (DCS), the ABB Ability™ System 800xA. This specific model is a complete redundant pair, incorporating two synchronized PM864 CPUs (A and B lanes) and a Redundancy Connection Module (RCM) in a single, factory-integrated unit. Engineered for the most critical and complex process automation applications, the ABB PM864AK01-EA delivers unparalleled processing power and fault tolerance, executing control logic, managing communication networks, and ensuring continuous operation without interruption. This redundancy solution is fundamental for industries where unplanned downtime is unacceptable. The robustness and advanced architecture of the ABB PM864AK01-EA make it the cornerstone for building ultra-reliable control systems, ensuring seamless failover and maximum plant availability.

Key Parameters and Specifications

• Manufacturer & Platform: ABB, for the AC 800M High Performance Controller family within System 800xA.
• Module Type: Redundant CPU Pair (Processor Unit).
• Processor: High-performance, multi-core processor.
• Memory: Substantial user program memory (e.g., multiple MB) and high-speed work memory for complex applications.
• Redundancy: True hot standby 1:1 redundancy with automatic, bumpless switchover in case of a primary CPU fault. The integrated Redundancy Connection Module (RCM) ensures continuous data synchronization.
• Execution Performance: Extremely fast program cycle times, capable of handling tens of thousands of I/O points and advanced control algorithms.
• Communication Interfaces:
  • Integrated Ethernet ports (TCP/IP) for connectivity to 800xA networks, OPC clients, and engineering stations.
  • Support for multiple fieldbus communication protocols (e.g., PROFIBUS DP, Modbus, Foundation Fieldbus H1) via separate communication modules.
  • Serial port for legacy or service communication.
• Firmware: Runs the AC 800M Control Software, compatible with Control Builder M professional engineering tool.

Advantages and Distinctive Features

The ABB PM864AK01-EA offers the ultimate advantage in system availability and processing capability. Its integrated two-lane redundancy provides a seamless, hardware-managed failover that is transparent to the running process, eliminating single points of failure at the controller level. A key feature is the integrated RCM, which guarantees perfect state synchronization between the primary and standby CPUs, enabling switchovers without loss of data or control state. The module’s powerful processor allows for the consolidation of control strategies, reducing the number of controllers needed in a plant and simplifying architecture. The ABB PM864AK01-EA supports extensive diagnostic and condition monitoring, providing early warnings of potential issues. Its design is optimized for integration within the comprehensive 800xA environment, offering superior engineering efficiency and operational insight. This makes the ABB PM864AK01-EA an investment in long-term operational resilience.

Application Cases in Key Fields

• Oil & Gas (LNG Trains): Controlling complex, safety-critical cryogenic separation and liquefaction processes where any controller failure could lead to a complete production train shutdown, resulting in massive financial loss.
• Power Generation (Combined Cycle Gas Turbines): Managing the synchronized start-up, load control, and protection sequences of gas and steam turbines, where millisecond-level reliability and bumpless transfer are mandatory for grid stability and equipment safety.
• Chemical & Petrochemical (Continuous Catalytic Cracking): Executing advanced model predictive control (MPC) and safety interlocks for high-value reactors, leveraging the CPU’s power for complex calculations and its redundancy for unwavering safety.
• Pharmaceutical (Active Pharmaceutical Ingredient Plants): Controlling large-scale bioreactors and purification columns in batch processes, where recipe integrity and regulatory traceability require a controller with no unplanned stops.

Comparison with Competing Products

Compared to standard single CPUs or loosely coupled redundancy solutions in other PLC/DCS systems, the ABB PM864AK01-EA represents a top-tier, tightly integrated redundant controller solution. Competing offerings from other major DCS vendors (e.g., Siemens SIMATIC PCS 7 AS-410H or Emerson DeltaV CHARMs) provide similar high-availability concepts but are locked into their respective software and I/O ecosystems. Within the ABB portfolio, the ABB PM864AK01-EA is distinct from the non-redundant PM864 CPU or the PM861/PM863 performance class CPUs, offering the highest level of availability. Its performance and integration are superior to achieving redundancy by simply networking two standalone PLCs, as it offers deterministic, hardware-managed switchover and consistent data management.

Selection Suggestions and Precautions

Selection Suggestions:

1. Select the ABB PM864AK01-EA for new installations or major upgrades in process industries where high availability is a primary design criterion (e.g., Safety Instrumented Systems, critical continuous processes).
2. It is the ideal choice when consolidating multiple control functions into fewer, more powerful nodes to reduce system complexity and lifecycle costs.
3. Choose this model for integration into an existing ABB System 800xA architecture to maintain consistency and leverage advanced system-wide features.

Important Precautions:

1. System Architecture: This module requires an AC 800M high-performance baseplate and compatible power supply (e.g., ABB 086407-502). It must be engineered within an 800xA project using Control Builder M.
2. Software Licensing: Ensure the necessary System 800xA software licenses and runtime features are procured for both processor lanes. The hardware is only one part of the solution.
3. Configuration Discipline: Meticulous configuration of the redundancy parameters, update times, and synchronization settings is crucial for correct failover behavior. ABB’s strict engineering guidelines must be followed.
4. Firmware Management: The firmware on both CPUs and the RCM must be kept at identical, compatible versions. Careful planning is needed for firmware updates on a live redundant system.
5. Thermal Management: The unit generates significant heat. Ensure the controller cabinet has adequate convective cooling or forced airflow as per ABB’s installation specifications to prevent thermal shutdowns.
