ABB PM864AK01-EA

Description

Product Description

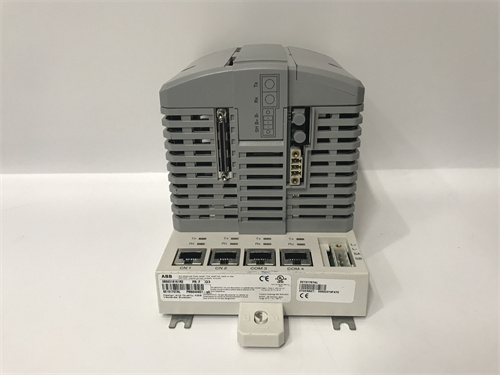

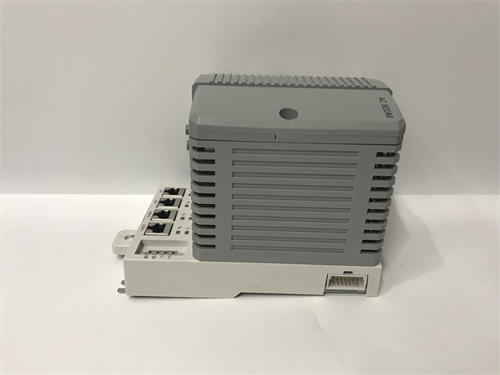

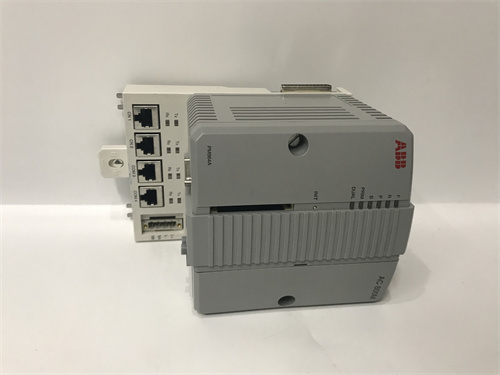

The ABB PM864AK01-EA is a high-performance Central Processing Unit (CPU) module from the ABB AC 800M family, engineered to serve as the primary logic and control engine within the System 800xA and Compact Product Suite automation environments. This specific variant is distinguished by its comprehensive -EA (Extended Automation) firmware package, which enables it to natively and seamlessly operate as a controller within ABB’s flagship System 800xA distributed control system (DCS). substantial memory, and essential communication ports to execute complex control strategies, manage vast I/O networks, and coordinate plant-wide automation functions. Deploying the ABB PM864AK01-EA provides a scalable and robust foundation for advanced process control, safety applications, and data management within a unified 800xA architecture. As the computational core, the capabilities and reliability of the ABB PM864AK01-EA are paramount to the performance and availability of the entire control system.

Product Parameters

• Product Type: Central Processing Unit (CPU) for AC 800M Controller with Extended Automation firmware.
• Processor: Features a high-performance industrial-grade processor optimized for deterministic control tasks.
• Memory: Equipped with significant user memory (RAM) and flash memory for application program storage and data logging.
• Firmware: Pre-loaded with the Extended Automation (EA) firmware, enabling full integration with ABB System 800xA, including support for 800xA objects, faceplates, and system-wide engineering.
• Communication Ports: Typically includes:
  • Two 10/100 Mbps Ethernet ports for plant/operator network (TCP/IP).
  • A MasterBus 300 (MB300) port for high-speed connection to ABB S800 I/O.
  • A serial port (COM) for configuration or legacy device communication.
• Supported Protocols: Capable of supporting major industrial fieldbus and network protocols (e.g., PROFIBUS DP, Modbus TCP/RTU, OPC DA/UA) via additional communication interface modules.
• Redundancy: Can be configured in a redundant pair with a synchronizing cable for high-availability applications requiring fault tolerance.
• Order Number Suffix: The -EA designation is critical and identifies the firmware package.

Advantages and Features

• Native 800xA DCS Integration: The key advantage of the -EA firmware is its deep, native integration with the System 800xA environment. It operates as a first-class controller within the 800xA architecture, supporting aspect-oriented engineering, centralized configuration, and unified alarm and event management.
• High Performance and Scalability: Offers substantial processing power to handle large-scale applications with thousands of I/O points, complex regulatory control, batch management, and sequence logic.
• Unified Engineering Environment: Configuration and programming are performed entirely within the 800xA Control Builder engineering suite, providing a single, consistent tool for configuring the controller, its I/O, and the operator interface.
• Robust and Reliable Design: Built for continuous 24/7 operation in harsh industrial conditions, with high immunity to electrical noise and a wide operating temperature range.
• Foundation for Advanced Applications: Serves as a platform for implementing not only basic control but also advanced process optimization, safety instrumented functions (with appropriate certification), and manufacturing execution system (MES) integration.

Application Cases in Application Fields

• Oil Refinery Crude Distillation Unit: Acting as the primary unit controller within an 800xA DCS, executing advanced process control (APC) for distillation columns, managing complex safety interlocks, and coordinating pump and valve sequences.
• Pharmaceutical Bio-Reactor Suite: Serving as a batch controller for multiple fermenters, managing recipe execution, CIP/SIP sequences, and electronic batch reporting, fully integrated with 800xA’s batch management and historian aspects.
• Pulp & Paper Mill Recovery Boiler: Providing high-speed regulatory control for combustion, feedwater, and sootblowing sequences in a critical boiler application, with full integration into the mill-wide 800xA operator station.
• Large Water Desalination Plant: Functioning as the main process controller for reverse osmosis trains, integrating control of high-pressure pumps, energy recovery devices, and chemical dosing within a plant-wide 800xA SCADA system.

Comparisons with Competing Products

Competing products include high-end process controllers from other DCS vendors, such as the Emerson DeltaV CHARM controller, the Honeywell Experion C300 Controller, and the Yokogawa Centum VP FIO controller. The ABB PM864AK01-EA is positioned as the mid-to-high range CPU within the AC 800M family for 800xA systems. Compared to standard AC 800M CPUs (without -EA firmware), this model is specifically enabled for the full 800xA feature set. Against competitors, its primary advantage is the seamless, aspect-oriented integration within ABB’s 800xA, which can reduce system engineering complexity and improve operator effectiveness when the entire ecosystem is from ABB. It competes on system cohesion, performance within that ecosystem, and the breadth of the 800xA application platform.

Selection Suggestions and Precautions

1. System Architecture Mandate: The ABB PM864AK01-EA is exclusively for use within an ABB System 800xA environment. It should not be selected for standalone or Compact Product Suite applications where a non-EA CPU would be more appropriate.
2. Firmware Version Management: Ensure compatibility between the controller’s firmware version, the 800xA system version, and the Control Builder engineering software version. Mismatches can prevent configuration or cause runtime issues.
3. I/O and Communication Planning: Carefully plan the required S800 I/O stations and any necessary fieldbus communication modules (CI854, CI871, etc.). The CPU’s capacity for I/O points and communication load must be respected.
4. Redundancy Decision: Determine at the design stage if controller redundancy is required for the application. This necessitates a second ABB PM864AK01-EA, specific power supply modules, and a redundancy synchronization kit.
5. Software Licensing: Remember that the controller hardware requires corresponding software licenses within the 800xA system for the Control Builder engineering station and for the controller runtime itself.
