ABB PE1315A

Description

Product Overview

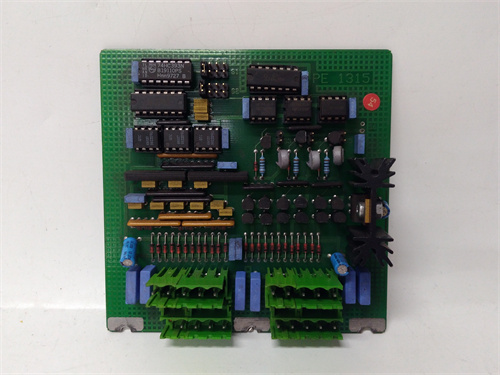

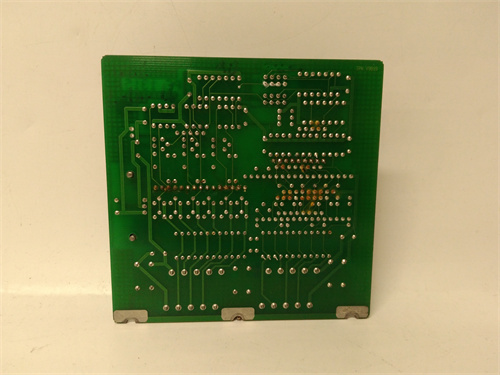

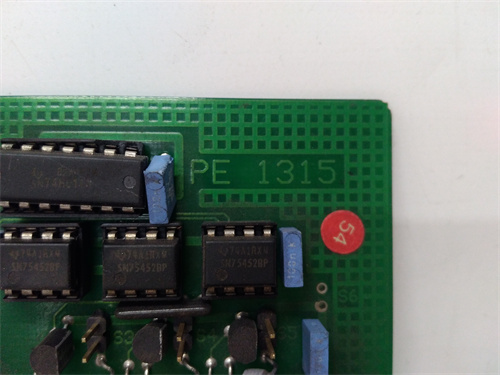

The ABB PE1315A is a high-performance, high-density digital input module designed for the Advant Controller 31 and Advant Controller 410 series, part of the ABB Ability™ System 800xA distributed control system (DCS) environment. This module serves as a critical interface, allowing the AC 31/410 controllers to reliably monitor the status of a large number of field devices such as push buttons, limit switches, proximity sensors, and relay contacts. The primary function of the ABB PE1315A is to electrically isolate and convert 24V DC field signals into digital data that can be processed by the controller’s logic solvers. Detailed hardware manuals, wiring diagrams, and technical specifications can be found through its official product resource page: ABB PE1315A. As a core I/O component, the reliability and density of the PE1315A make it a fundamental building block for efficient plant floor signal acquisition in large-scale industrial automation projects.

Product Parameters and Specifications

• Function: 24V DC Digital Input Module for AC 31 / AC 410 Controllers.
• Number of Channels: High-density configuration, typically providing 32 isolated input channels in a single module footprint.
• Input Voltage: Nominal 24V DC, with a defined operational range (e.g., 19-30V DC).
• Input Type: Designed for sink or source (sourcing) input signals, compatible with standard 3-wire PNP proximity sensors or dry contact closures.
• Isolation: Provides galvanic isolation between field side channels and the internal controller bus to prevent noise propagation and ground loop issues.
• Diagnostics: Includes basic module health diagnostics (communicated to the controller) and per-channel status indication via LED indicators.
• Connection: Uses a removable front connector block (often a type of terminal block or high-density connector) for efficient field wiring.
• Backplane Compatibility: Inserts into the specific I/O bus of the Advant Station or S800 I/O station designed for AC 31/410 controllers.

Advantages and Key Features

The ABB PE1315A offers significant advantages in system design and cost efficiency. Its foremost feature is high channel density, allowing for a substantial reduction in rack space, hardware cost per point, and cabinet footprint for applications requiring monitoring of many discrete signals. The module provides reliable galvanic isolation, protecting the sensitive controller electronics from transients and faults on the field side. It is engineered for high noise immunity, ensuring stable operation in electrically noisy industrial environments. The ABB PE1315A supports hot insertion and removal (when used within a supported and configured redundant or hot-swap station), enabling maintenance and replacement without a system shutdown. Its integration with the 800xA engineering environment allows for seamless configuration, commissioning, and diagnostics.

Application Cases in Industry

This module is widely deployed in large, process-oriented industries standardized on the ABB System 800xA platform. In Pulp & Paper Mills, the PE1315A is used to monitor thousands of limit switches on conveyors, valve position feedbacks, and motor run status indicators. Within Metals and Mining, it reads signals from safety interlocks, hoist limit switches, and equipment run permissives. For Marine and Offshore applications, it forms part of the vessel automation system, monitoring pump statuses, door contacts, and alarm points. The ABB PE1315A is also a staple in Power Generation plants for turbine auxiliary system monitoring and in Water Treatment facilities for pump control and filter status feedback, where its high density efficiently handles the extensive I/O requirements.

Comparison with Competing Products

Compared to standard PLC digital input modules (e.g., Siemens SM321, Rockwell 1756-IB32), the ABB PE1315A is distinguished by its deep integration into the ABB DCS ecosystem (800xA, Advant Station), offering a unified engineering and diagnostic experience rather than a standalone function. Its density (32 channels) is competitive with high-end modular I/O. Compared to other DCS vendor I/O, such as Emerson’s DeltaV CHARM I/O or Honeywell Experion C Series I/O, the PE1315A represents a previous generation (but still widely deployed) platform with a different physical and electrical architecture. Its primary competitor within the ABB sphere would be newer generation S800 I/O modules; selection often depends on the existing installed base and controller generation (AC 31/410 vs. AC 800M).

Selection Suggestions and Precautions

• Selection Advice:
  1. Controller Compatibility: Confirm that your Advant Controller 31 or 410 system and its associated I/O station (e.g., in an Advant Station) support the ABB PE1315A module. Verify the required firmware and hardware revisions.
  2. Signal Sourcing: Critically assess your field device type. Ensure you select the correct variant if there are different models for sourcing (PNP) vs. sinking (NPN) inputs to match your sensor output configuration.
  3. Power Budget: Calculate the total current draw of all connected field devices on the module’s 24V DC supply. Ensure the external power supply and the module’s internal circuits are not overloaded.
  4. Spare Parts Strategy: For maintenance of legacy systems, ensure reliable sourcing for this specific module, as it may be in a mature phase of its product lifecycle.
• Important Precautions:
  1. Wiring Practices: Use proper wire ferrules on stranded wires and adhere to the specified torque when terminating wires on the connector block to ensure reliable connections and prevent shorts.
  2. Fuse Protection: Implement appropriate external fusing for groups of field inputs or the main supply to the module to protect against wiring faults.
  3. Grounding: Follow ABB’s guidelines for protective earth (PE) grounding and shield termination for cables in noisy environments to maintain signal integrity.
  4. ESD and Handling: Observe electrostatic discharge (ESD) precautions when handling the module. Ensure the module is fully seated and locked in its base unit.
