Product Description

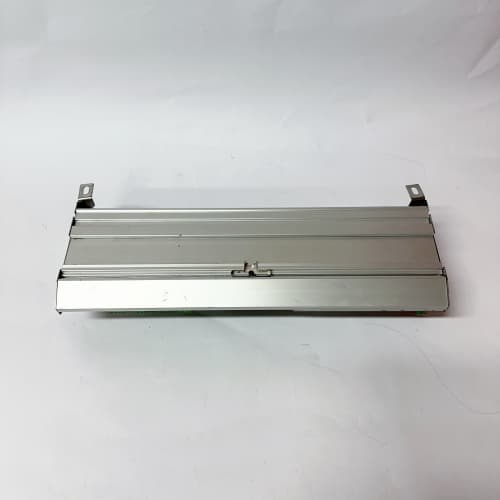

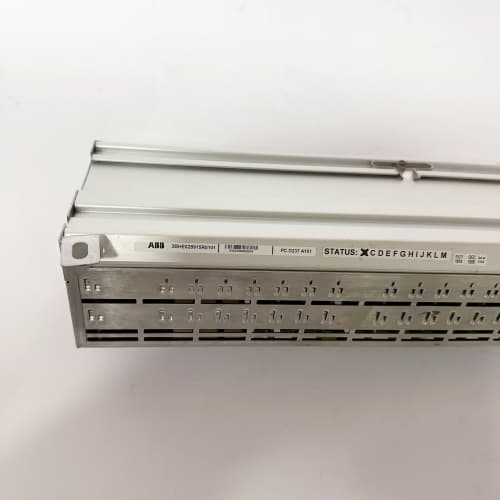

The ABB PCD237A101 3BHE028915R0101 is a sophisticated protection and control IED (Intelligent Electronic Device) from the renowned Relion® 670 series, specifically engineered for the demanding requirements of power generation, distribution, and management. As a cornerstone of ABB’s advanced protection relay portfolio, the ABB PCD237A101 3BHE028915R0101 (product link: ABB PCD237A101 3BHE028915R0101) integrates comprehensive protection, control, monitoring, and communication functions into a single, robust device. This IED is primarily designed for the supervision, automation, and protection of generators, motors, and transformers in high-voltage and medium-voltage applications. Its powerful processing capabilities allow it to execute complex protection algorithms, manage breaker control, and communicate seamlessly with higher-level SCADA and control systems via multiple protocols. The reliability and precision of the ABB PCD237A101 3BHE028915R0101 are critical for preventing equipment damage, ensuring grid stability, and maintaining safe operation in electrical networks. For large-scale power system automation, selecting a device like the ABB PCD237A101 3BHE028915R0101 is a strategic decision for long-term asset management.

Product Parameters

• Manufacturer: ABB.
• Product Family: Relion® 670 Series (Generator, Motor, and Transformer Protection).
• Model: PCD237A101 (Specific functional variant for generator protection).
• Article Number: 3BHE028915R0101.
• Core Function: Multifunctional Generator/Motor Protection Relay (IED).
• Protection Functions: Includes a comprehensive suite such as differential protection (87G), stator earth fault (64G1, 64G2), negative sequence/unbalance (46), overcurrent (51, 50), over/under voltage (59, 27), over/under frequency (81), loss of excitation (40), and reverse power (32).
• Control Functions: Programmable logic, breaker control (52), autorecloser (79), and synchrocheck (25).
• Inputs/Outputs: Extensive configurable binary inputs (BI), binary outputs (BO/RO), and analog inputs (AI).
• Communication: Multiple ports supporting IEC 61850, Modbus, DNP3, and IEC 60870-5-103/104 protocols for seamless system integration.
• Human-Machine Interface (HMI): Large graphical display, keypad, and LED indicators for local interaction and diagnostics.
• Power Supply: Available for various DC or AC auxiliary supply voltages.

Advantages and Features

• Comprehensive Protection Suite: The ABB PCD237A101 3BHE028915R0101 consolidates dozens of protection and control functions into one device, reducing panel space, wiring, and commissioning time compared to using multiple discrete relays.
• High Performance & Speed: Utilizes powerful hardware to execute protection algorithms with high speed and precision, ensuring the fastest possible fault clearance to minimize equipment damage.
• Advanced Communication & Interoperability: Native support for IEC 61850 Edition 2 simplifies system engineering and enables seamless data exchange in modern digital substations and plant systems.
• Flexible Configuration: Powerful PCM600 engineering tool allows for extensive customization of protection parameters, logic schemes (CFC), and human-machine interface displays to meet exact application needs.
• Robust Design & Reliability: Built to the highest industrial standards for electromagnetic compatibility (EMC) and environmental conditions, ensuring dependable operation in challenging substation environments.

Application Cases in Key Fields

• Power Generation (Hydro, Thermal, Nuclear): Primary protection for large generators, including unit transformers and generator circuit breakers.
• Industrial Plants: Protection of large high-voltage synchronous or induction motors driving critical compressors, fans, and mills in mining, cement, and petrochemical facilities.
• Renewable Energy: Protection of generators in biomass plants or as a centralized protection unit for wind farm collector systems.
• Marine & Offshore: Protection of main propulsion generators and large auxiliary motors on ships and oil platforms.

Comparisons with Competing Products

The ABB PCD237A101 3BHE028915R0101 competes directly with high-end generator/motor protection relays from other major manufacturers like Siemens (SIPROTEC 7UM85), GE (Multilin G60), and Schweitzer Engineering Laboratories (SEL) (SEL-700G). Compared to older generation electromechanical or standalone digital relays, the Relion 670 series offers superior integration, communication, and flexibility. Its key advantages within the competitive landscape are the depth of its pre-configured application templates for generators, the user-friendliness of the PCM600 tool for complex logic, and its strong reputation for reliability in the power generation sector. The specific balance of speed, functionality, and communication options differentiates it from competitors.

Selection Suggestions and Precautions

• Define Application Scope Precisely: Clearly identify all required protection functions (differential, earth fault, etc.), control sequences, and communication protocols needed for your specific generator or motor.
• Verify CT/VT Requirements: Ensure the current transformer (CT) and voltage transformer (VT) ratings and connections are fully compatible with the ABB PCD237A101 3BHE028915R0101‘s input specifications. Incorrect matching can lead to malfunction.
• Plan for Engineering Tools: Access to and expertise with ABB’s PCM600 engineering software is mandatory for configuration, setting, testing, and commissioning of the relay.
• Consider Cyber Security: For networked devices, implement recommended cyber security hardening measures available for the IED, such as password policies and disabling unused services.
• Professional Commissioning: Due to the critical nature of protection systems, commissioning and primary injection testing should be performed by qualified protection engineers following detailed test plans.
