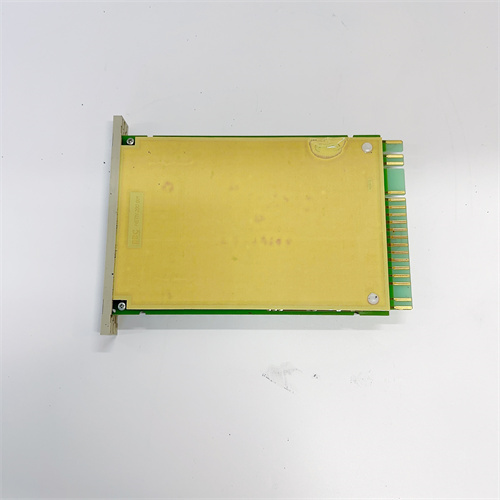

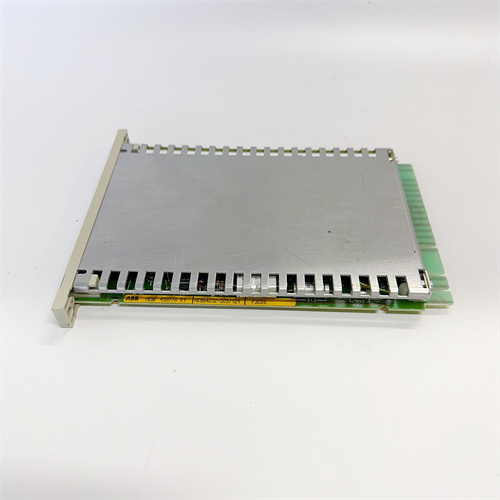

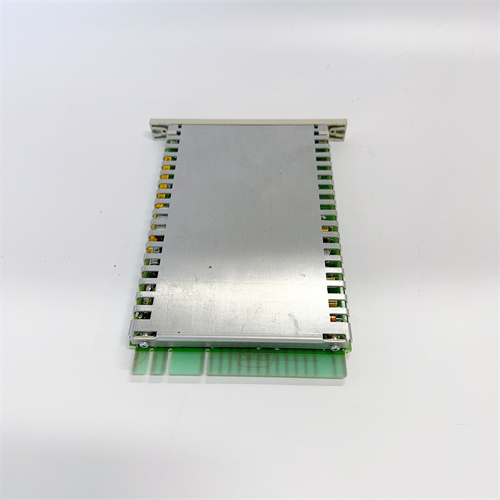

ABB P3EDB HENF452778R1

Description

The ABB P3EDB HENF452778R1 is a specialized electronic trip unit designed for ABB’s P3 series low-voltage power circuit breakers. This advanced microprocessor-based protection relay provides comprehensive overcurrent, ground fault, and specialized protection functions for critical power distribution applications in industrial, commercial, and utility installations. The ABB P3EDB HENF452778R1 represents the digital intelligence core within ABB’s Emax P3 breaker platform, delivering selective coordination, energy monitoring, and communication capabilities essential for modern power management systems.

Product Overview and Description

The ABB P3EDB HENF452778R1 functions as the programmable protection and metering brain within P3 series air circuit breakers, continuously monitoring current waveforms and executing tripping decisions based on configured protection curves. This electronic trip unit digitizes current transformer signals from the breaker’s sensor system, performing real-time RMS calculations and harmonic analysis. The ABB P3EDB HENF452778R1 incorporates high-resolution LCD display for local metering data, protection settings visualization, and event log review. Designed for continuous operation throughout the breaker’s 30+ year service life, the module features rugged construction, wide operating temperature range, and self-powered operation from integral current transformers—requiring no external control power for basic protection functions. Comprehensive communication interfaces enable integration with building management systems, SCADA platforms, and ABB’s Ability electrical distribution monitoring software.

Key Parameters and Specifications

• Protection Functions: L (long-time), S (short-time), I (instantaneous), G (ground fault), with optional V (voltage) and M (power) functions.
• Curve Types: I²t, I⁴t, definite time, IEC 60255 compliant.
• Measurement Accuracy: Current ±0.5%, voltage ±0.5%, power ±1.0%, energy ±1.0%.
• Display: 128×64 pixel graphic LCD, backlit, multi-language support.
• Communication: Modbus RTU RS-485 standard, Profibus DP, DeviceNet, Ethernet/IP options.
• Inputs/Outputs: 4x digital inputs, 4x relay outputs, 1x analog output (optional).
• Waveform Capture: 64 samples/cycle, 4 seconds recording, COMTRADE format.
• Event Recorder: 500 time-stamped events with 1 ms resolution.
• Harmonic Analysis: THD, individual harmonics to 31st order.
• Self-Power: 20 A minimum trip current for protection-only operation.
• Auxiliary Power: 24-240 V AC/DC for metering and communications.
• Operating Temperature: -25°C to +70°C.
• Certifications: IEC 60947-2, UL 1066, UL 489, CSA C22.2, CE, CCC.

Advantages and Functional Benefits

The ABB P3EDB HENF452778R1 delivers significant advantages for power distribution protection:

1. Selective Coordination: Advanced curve shaping and zone-selective interlocking ensure upstream breaker retains continuity during downstream faults, maximizing critical load availability.
2. Energy Monitoring: Revenue-grade metering capabilities (0.5% accuracy) eliminate separate panel meters, reducing switchgear costs and panel space requirements.
3. Waveform Analysis: Built-in oscillography captures fault signatures for post-event forensic analysis, accelerating root cause identification and system restoration.
4. Arc Flash Reduction: Maintenance mode switch enables instantaneous settings during operator interaction, reducing incident energy and permitting energized work with appropriate PPE.
5. Cybersecurity: IEC 62443 compliant communication stack with authentication and encryption protects critical power infrastructure from unauthorized access.

Application Fields and Use Cases

The ABB P3EDB HENF452778R1 is extensively deployed in mission-critical power distribution applications:

• Data Centers: Main and distribution feeder protection with zone-selective interlocking for maximum uptime; energy monitoring for PUE (Power Usage Effectiveness) optimization.
• Commercial Buildings: Service entrance and bus riser protection; integration with building management systems for load shedding and demand response.
• Industrial Facilities: Motor control center feeders, welding power distribution, variable frequency drive input protection.
• Healthcare: Critical power distribution to life safety and essential electrical systems; compliance with NFPA 99 and IEC 60364-7-710.
• Infrastructure: Airport runway lighting circuits, mass transit power distribution, water treatment facility feeders.

Competitor Comparison

When evaluated against alternative electronic trip units, the ABB P3EDB HENF452778R1 demonstrates distinctive strengths. Schneider Electric’s Micrologic 5.0/6.0 series offers comparable protection functionality but exhibits approximately 15% higher energy consumption and reduced harmonic analysis capability to 15th order versus ABB P3EDB HENF452778R1‘s 31st order. Siemens ETU600 series provides similar metering accuracy but requires external power supply for basic protection functions, creating single-point-of-failure vulnerability. Eaton’s PXR 25 series delivers competitive performance but lacks the ABB P3EDB HENF452778R1‘s comprehensive waveform capture and COMTRADE export capability. The ABB P3EDB HENF452778R1 maintains distinct advantage through true self-powered protection independent of auxiliary supply, essential for applications requiring guaranteed fault clearing during control power loss scenarios. While newer IoT-capable trip units continue development, the ABB P3EDB HENF452778R1 represents the current standard for digital protection in P3 breaker applications.

Selection Recommendations and Precautions

• Breaker Compatibility: The ABB P3EDB HENF452778R1 is specifically designed for P3 series Emax air circuit breakers; verify compatibility with your specific breaker frame size and continuous current rating. This trip unit is not compatible with SACE, Tmax, or legacy Emax breaker families.
• Sensor Matching: Confirm current transformer sensor type and ratio match the ABB P3EDB HENF452778R1 rating plug configuration. Mismatched sensors cause inaccurate current measurement and improper protection coordination.
• Rating Plug Selection: The ABB P3EDB HENF452778R1 requires separate rating plug to establish breaker continuous current rating; rating plug must match breaker frame size and application requirements. Field replacement of rating plug requires calibration verification.
• Firmware Revision: Verify ABB P3EDB HENF452778R1 firmware revision supports required protection functions and communication protocols. Units manufactured before 2018 may require firmware upgrade for Modbus TCP/IP or IEC 61850 capability.
• Communication Integration: For network-connected installations, confirm ABB P3EDB HENF452778R1 communication protocol matches system requirements. Modbus RTU standard; Profibus DP, DeviceNet, and Ethernet/IP require optional communication modules.
• Maintenance Switch Application: The ABB P3EDB HENF452778R1 maintenance mode provides instantaneous short-time and ground fault settings; this feature is intended for temporary use during energized work and should not remain permanently enabled.
• Spare Parts Strategy: The ABB P3EDB HENF452778R1 remains in active production; maintain minimum 10% spares inventory for critical power distribution applications. Current manufacturing lead times extend to 8-12 weeks.
• Battery Replacement: Internal battery maintains real-time clock and event log during de-energized periods; replace at 10-year intervals per ABB instruction manual. Battery failure does not affect protection functions.
• Configuration Backup: Always export complete ABB P3EDB HENF452778R1 configuration parameters via Ekip Connect software before replacement; configuration resides in volatile memory without continuous auxiliary power.
• Cyber Security: For network-connected ABB P3EDB HENF452778R1 installations, change default passwords and disable unused communication ports per ABB cybersecurity guideline 1SDC007421G0201.
