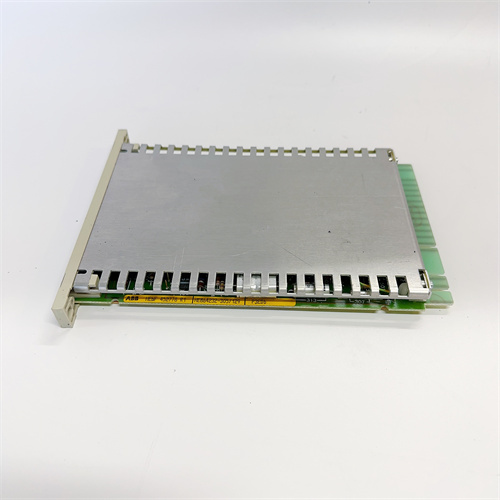

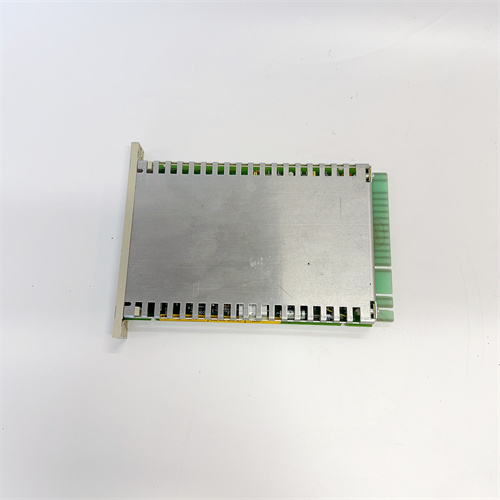

ABB P3EDb HENF452778R1

Description

General Information about the product ABB P3EDb HENF452778R1

Technical Parameters of ABB P3EDb HENF452778R1

• Device type: Discrete module with relay outputs for controlling low-voltage loads in ABB Harmony systems.
• Output parameters:
  • Number of channels: 8 independent relay outputs;
  • Relay type: Normally open (NO) contacts;
  • Rated voltage: 24 V DC / 125 V DC / 250 V AC;
  • Maximum current per channel: 5 A (at 24 V DC), 2 A (at 250 V AC);
  • Response time: ≤10 ms (contact closing), ≤5 ms (contact opening);
  • Operating cycles: ≥100,000 cycles (at nominal load).
• Electrical characteristics:
  • Power supply: 24 V DC ±10%;
  • Current consumption: ≤150 mA (no load);
  • Isolation: 2500 V AC (between channels, between channels and data bus);
  • Protection: Against short circuits (on outputs), electromagnetic interference (EN 61000-4), electrostatic discharge (ESD).
• Mechanical parameters:
  • Mounting type: DIN rail (35 mm) or in ABB Harmony enclosures;
  • Dimensions: 120 × 160 × 70 mm (width × height × depth);
  • Weight: ≈450 g;
  • Housing material: Flame-retardant plastic (V0 class);
  • Operating temperature range: -20 °C to +60 °C;
  • Protection degree: IP20 (for installation in enclosed electrical cabinets).
• Functional features:
  • Diagnostics: LED indicators for each channel status (on/off), short-circuit indication;
  • Compatibility: Works with ABB Harmony GC700, GX700 controllers, and AC500 PLCs;
  • Resistance: Withstands vibrations up to 10–500 Hz and shock pulses up to 15 G.

Advantages and Features of ABB P3EDb HENF452778R1

• High current capacity: A maximum current of 5 A per channel (at 24 V DC) allows controlling not only signal circuits but also small loads (fans, small electric motors), reducing the number of required modules in the system.
• Voltage versatility: Support for 24 V DC, 125 V DC, and 250 V AC makes the module suitable for networks with different power types, eliminating the need for additional adapters.
• Relay reliability: A service life of ≥100,000 cycles and short-circuit protection ensure stable operation in intensively used systems (e.g., on food packaging lines with high cyclicity).
• Compactness: Small dimensions and DIN rail mounting make it convenient for installation in tightly packed electrical cabinets, which is crucial for distribution panels in logistics centers or office buildings.

Application Examples of ABB P3EDb HENF452778R1

1. Logistics centers: Conveyor control — the module switches relays to start/stop conveyor drives (24 V DC, 3 A), synchronizing them with signals from photoelectric sensors.
2. Food production: Control of raw material supply valves — ABB P3EDb HENF452778R1 manages solenoid valves (24 V DC, 2 A) in automatic ingredient feeding systems, ensuring precise dosing.
3. Mechanical engineering: Equipment status indication — the module controls light panels (220 V AC, 1 A) on assembly lines, signaling normal operation or faults.

Comparison with Competitors

Selection Recommendations and Precautions

Selection Recommendations

• Systems with low-voltage loads: For logistics, food processing, or mechanical engineering, ABB P3EDb HENF452778R1 with 8 relay outputs ensures reliable control of valves, drives, and indicators.
• Networks with mixed power types: When using both DC and AC loads, its support for 24 V DC, 125 V DC, and 250 V AC eliminates the need for multiple modules.
• Aggressive temperature conditions: In workshops with low temperatures (-20 °C and below), its operating range guarantees stability, unlike models with limited ranges.

Precautions

• Load control: Do not exceed the maximum current of 5 A (24 V DC) or 2 A (250 V AC) per channel — overloading reduces relay service life.
• Cooling: Ensure adequate airflow in the electrical cabinet (temperature not exceeding 50 °C) — overheating accelerates relay contact wear.
• Grounding: Properly ground the module housing — this reduces the impact of electromagnetic interference on control signals.
• Regular inspection: Periodically check relay contacts for wear (especially after 50,000 cycles) — worn contacts may lead to increased resistance and overheating.
•
