ABB P3EA HENF315216R1

Description

Product Description

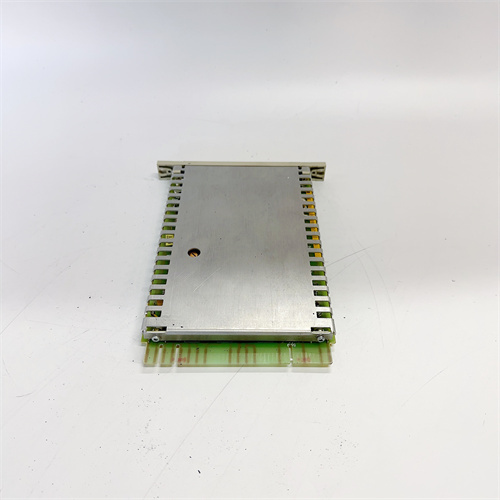

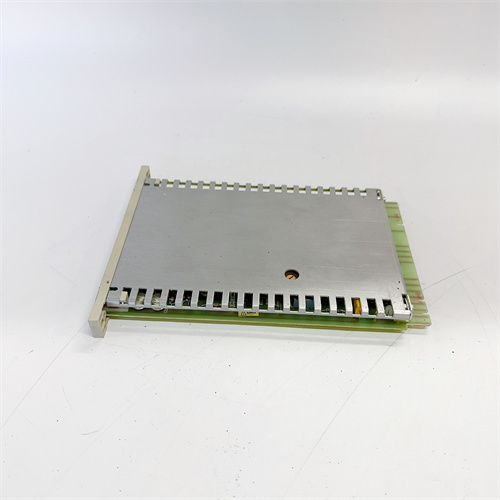

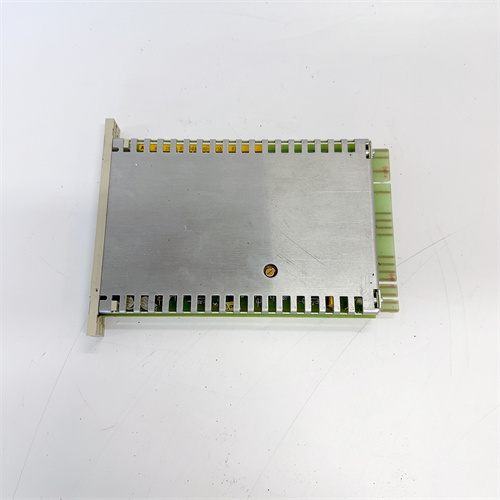

The ABB P3EA HENF315216R1 is a sophisticated and powerful digital drive module, specifically a Pulse Width Modulation (PWM) Drive Interface board, designed for integration into ABB’s industrial drive systems, particularly those within the ACS 6000 or similar high-power medium-voltage drive families. This module serves as a critical interface between the drive’s central control system and the high-power semiconductor gates (IGBTs). Its primary function is to generate the precise, high-frequency PWM signals required to control the output voltage and frequency supplied to large AC motors, enabling variable speed control. The ABB P3EA HENF315216R1 ensures the accurate translation of control commands into switching patterns, which directly governs motor torque, speed, and efficiency. The robust design of this module is essential for the reliable and efficient operation of high-power drive systems used in heavy industry. As a core component in the power stage, the performance of the ABB P3EA directly impacts the stability and performance of the entire drive and the connected motor.

Product Parameters

• System Family: ABB Medium-Voltage AC Drive (e.g., ACS 6000 series).
• Module Type: PWM (Pulse Width Modulation) Drive Interface / Gate Drive Board.
• Function: Generates and amplifies gate drive signals for the power semiconductor switches (IGBTs).
• Control Interface: Receives low-level control signals from the drive’s main control board (DSP or processor).
• Output: Provides isolated, high-current gate drive pulses to the IGBT modules.
• Isolation: High-voltage isolation between the low-voltage control electronics and the high-power stage.
• Protection Features: Includes monitoring for short-circuit, overcurrent, and improper gate voltage conditions to protect the IGBTs.
• Communication: Interfaces with the drive’s control system via an internal bus or dedicated connections.
• Diagnostics: Contains self-diagnostics and status indicators for fault detection.
• Part Number: HENF315216R1 is a specific manufacturing/assembly code.

Advantages and Features

• High Precision and Switching Frequency: Capable of generating the precise PWM patterns required for efficient motor control with low harmonic distortion, contributing to smooth motor operation and energy savings.
• Robust Gate Drive Capability: Provides the necessary current and voltage to quickly and reliably switch high-power IGBTs, minimizing switching losses and heat generation.
• Integrated Protection: The built-in monitoring and protection circuits are crucial for safeguarding expensive IGBT power modules from catastrophic failures due to faults like shoot-through or overcurrent.
• High Reliability in Demanding Environments: Designed to operate reliably in the high-electrical-noise and high-temperature environment inside a power drive cabinet.
• Optimized Drive Performance: As a genuine ABB component, the ABB P3EA HENF315216R1 ensures the drive operates as designed, maintaining optimal performance, efficiency, and reliability.

Application Cases in Application Fields

• Mining (Large Conveyors & Grinding Mills): Controls the massive motors driving overland conveyors and semi-autogenous grinding (SAG) mills, requiring precise torque and speed control.
• Oil & Gas (Pipeline Compression): Used in variable speed drives for mainline gas pipeline compressors, enabling efficient flow control and energy management.
• Metals (Rolling Mills): Drives the main motors in hot and cold rolling mills, providing the precise speed and torque regulation needed for product quality.
• Marine Propulsion: Forms part of the variable frequency drive system for electric propulsion motors in large vessels.

Comparisons with Competing Products

• Vs. Siemens SINAMICS SM150/ GM150 Gate Unit Boards: Siemens’ medium-voltage drives have their own proprietary gate drive boards. The ABB P3EA HENF315216R1 is specific to ABB’s drive architecture. The competition is at the complete drive system level regarding performance, efficiency, and reliability.
• Vs. Generic IGBT Gate Driver Modules: While generic gate driver chips exist, the ABB P3EA is a complete, application-specific board integrating signal conditioning, isolation, protection, and diagnostics tailored for ABB’s specific IGBT modules and control strategy.
• Vs. Drive Control Board (Main Controller): The main controller computes the control algorithm. The ABB P3EA HENF315216R1 is the specialized hardware that executes the final power switching command. They are distinct but interdependent components.

Selection Suggestions and Precautions

1. Exact Drive Model Compatibility: This module is designed for a specific ABB drive model and voltage/current rating. Verify compatibility with the exact drive type (e.g., ACS 6000 09A0-XXX) and cabinet configuration. Using an incompatible board can cause drive failure.
2. Handling and ESD Protection: This is a sensitive electronic module containing static-sensitive components. Always handle with proper Electrostatic Discharge (ESD) precautions.
3. Professional Installation Required: Replacement should only be performed by qualified drive technicians. Incorrect installation can lead to improper IGBT gating, resulting in immediate destruction of the new board and the IGBT power stack.
4. Firmware/Settings Synchronization: After replacing the ABB P3EA HENF315216R1, it may be necessary to verify or reload drive parameters and firmware to ensure synchronization with the main control board.
5. Source from Authorized Channels: Always source this critical component from ABB or authorized distributors. Counterfeit or non-genuine boards pose a severe risk of catastrophic drive failure, leading to extended downtime and costly repairs.
