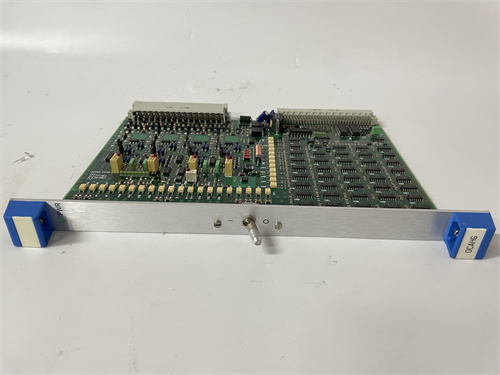

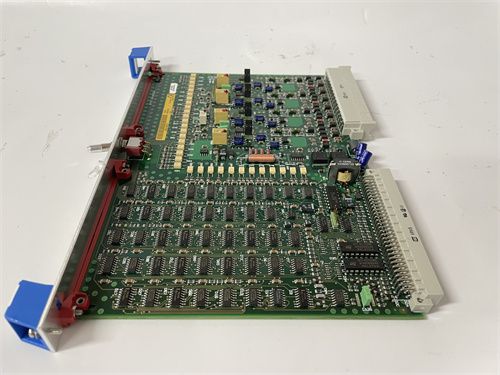

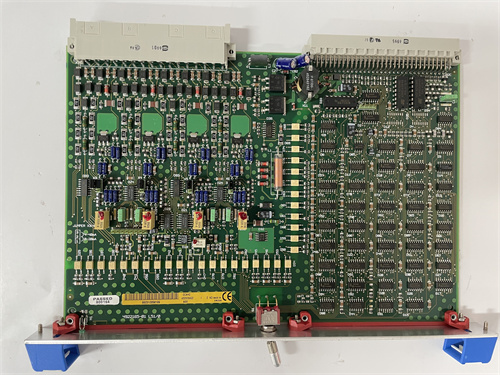

ABB OCAH 940181103

Description

ABB OCAH 940181103 – Technical Overview & Application Guide

Introduction and Product Description
The ABB OCAH 940181103 is a specialized Optical Cable Adapter Head (OCAH), a critical fiber-optic communication interface module for ABB’s high-performance MasterBus 300 (MB300) network within the Advant/AC 800M and S800 I/O system architecture. This module serves as the physical layer converter, transforming electrical signals from the controller’s communication board into optical signals for transmission over robust, noise-immune fiber-optic cables, and vice-versa. The primary role of the ABB OCAH 940181103 is to extend the reach and enhance the reliability of the high-speed, deterministic MB300 fieldbus, which connects multiple S800 I/O stations and controllers across a plant. By utilizing fiber optics, this module enables communication over long distances while providing complete immunity to electromagnetic interference (EMI), ground loops, and lightning surges. For system designers building a robust and expansive control network, the inclusion of the ABB OCAH 940181103 is a strategic choice for ensuring data integrity in electrically harsh environments.

Detailed Product Parameters

• Product Type: Optical Cable Adapter Head (MasterBus 300)
• Part Number / Article No.: 940181103
• Module Designation: OCAH
• System Compatibility: ABB Advant Controller, AC 800M, and S800 I/O with MB300 communication.
• Primary Function: Electrical-to-Optical (E/O) and Optical-to-Electrical (O/E) signal conversion for the MB300 fieldbus.
• Network Protocol: MasterBus 300 (MB300).
• Optical Interface: Typically features ST or BFOC fiber-optic connectors.
• Fiber Type: Compatible with multi-mode optical fiber (specifications such as 62.5/125µm or 50/125µm must be verified).
• Communication Range: Extends the MB300 network up to several kilometers (exact range depends on fiber type and number of nodes).
• Electrical Interface: Connects to an MB300 communication module (e.g., a CI853 or similar) via a specialized ribbon cable.
• Power Supply: Receives power from the connected communication module or the S800 I/O rack.

Advantages and Key Features

1. Superior Noise Immunity: The fundamental advantage of the ABB OCAH 940181103 is its use of fiber optics, which is completely immune to electromagnetic interference (EMI), radio frequency interference (RFI), and ground potential differences, making it ideal for steel plants, mining, and other electrically noisy environments.
2. Long-Distance Communication: Enables the MB300 network to cover much greater distances between I/O stations and controllers than possible with traditional copper-based fieldbuses, supporting large-scale plant layouts.
3. Intrinsic Safety & Galvanic Isolation: Fiber optics provide inherent galvanic isolation, eliminating the risk of ground loops and protecting sensitive controller electronics from voltage surges that can travel on copper cables.
4. High Data Integrity & Speed: Supports the full, deterministic data rate of the MB300 network, ensuring fast and reliable exchange of I/O and process data without corruption.
5. System-Integrated Design: As a genuine ABB module, the OCAH 940181103 is guaranteed to be compatible with the MB300 protocol’s timing and electrical specifications, ensuring plug-and-play reliability within the ABB ecosystem.

Application Cases in Industry

• Steel Mills & Metal Production: Deploying MB300 networks across rolling mills and furnaces where extreme electrical noise from large motors and thyristor drives would cripple copper-based networks.
• Mining and Mineral Processing: Connecting remote I/O stations for conveyors, crushers, and flotation cells across vast, sprawling sites where distance and lightning are major concerns.
• Oil & Gas (Upstream & Pipeline): Implementing robust communication for fire & gas systems and valve stations in areas prone to lightning strikes or with hazardous area classifications.
• Power Generation: Creating reliable communication rings for auxiliary systems (water treatment, coal handling) around a power plant where different grounding potentials exist.
• Cement Plants: Networking I/O from the quarry to the kiln and finish mill over long distances in a dusty, high-vibration environment.

Comparison with Competing Products (e.g., Siemens, Emerson)

• Vs. Siemens Optical Link Modules (OLMs) for PROFIBUS: Siemens OLMs serve a similar purpose for PROFIBUS DP. The ABB OCAH 940181103 is specific to the proprietary MB300 protocol and the ABB S800/AC 800M hardware architecture. Its integration is more seamless within that specific DCS environment.
• Vs. Emerson (DeltaV) CHARM with Copper-Only I/O: The fiber-optic capability provided by the OCAH 940181103 is a distinct advantage for specific challenging installations. For standard environments, Emerson’s copper-based CHARM I/O is sufficient. The ABB solution provides a dedicated, high-performance optical path for its critical control network.
• Vs. Generic Media Converters: Using a generic Ethernet-to-fiber converter is not an option, as the ABB OCAH 940181103 is not converting Ethernet. It is a specialized converter for the real-time, deterministic MB300 fieldbus protocol, which is critical for process control I/O scanning.

Selection Suggestions and Important Precautions

1. Complete MB300 Network Compatibility: The ABB OCAH 940181103 must be used with compatible MB300 communication masters and slaves (e.g., CI853, CI854 cards in S800 stations). Verify the entire network hardware compatibility.
2. Correct Fiber-Optic Cable and Connectors: Use only the ABB-specified grade of multi-mode optical fiber cable and ensure the connectors (e.g., ST-type) match the module’s ports. Clean the optical connectors meticulously before insertion to prevent signal loss.
3. Network Topology and Termination: MB300 over fiber often uses a ring or redundant ring topology for high availability. Ensure the optical ring is properly terminated and that the OCAH modules are configured correctly for their role in the ring (e.g., master or slave node).
4. Power and Ribbon Cable Integrity: The module receives power via a ribbon cable from its parent communication card. Ensure this cable is securely connected and undamaged. A loose ribbon cable is a common source of failure.
5. Diagnostic LED Interpretation: Learn to interpret the status LEDs on the ABB OCAH 940181103 (Power, Tx, Rx, Link). They are the primary tool for diagnosing fiber link integrity, transmitter/receiver activity, and network communication health.
