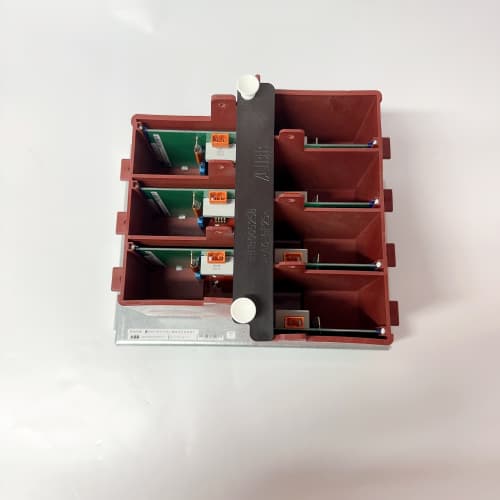

ABB KUC755AE117 3BHB005243R0117

Description

Product Description

The ABB KUC755AE117 3BHB005243R0117 is a high-performance communication interface module designed for ABB’s HVDC (High Voltage Direct Current) transmission control and protection systems, specifically engineered for critical power grid interconnection applications. This advanced controller board serves as the primary communication processor within ABB’s MACH 2 control and protection platform, enabling deterministic data exchange between redundant control systems, valve base electronics, and station control centers. The ABB KUC755AE117 3BHB005243R0117 incorporates redundant communication channels with automatic failover capability, ensuring uninterrupted data flow for real-time HVDC converter control and protection functions. Engineered for continuous duty in demanding utility environments, this module features comprehensive electromagnetic compatibility filtering and transient suppression suitable for high-voltage substation installations. The ABB KUC755AE117 3BHB005243R0117 represents the culmination of ABB’s decades of HVDC control system expertise, providing reliable, deterministic communication essential for stable HVDC link operation.

Product Parameters

• Model: ABB KUC755AE117 3BHB005243R0117
• Product Type: Communication Controller Module, HVDC Control & Protection
• System Compatibility: ABB MACH 2 Control and Protection Platform
• Processor: 32-bit RISC, 200 MHz
• Memory: 16 MB SDRAM, 8 MB Flash, 512 kB non-volatile FRAM
• Communication Ports: 4 x Fiber optic (100 Mbps), 2 x Ethernet (10/100), 2 x RS-485, 2 x RS-232
• Protocols: IEC 60870-5-101/104, IEC 61850, Modbus RTU/TCP, proprietary MACH 2 bus
• Redundancy: 1:1 hot-standby with automatic failover, < 5 ms switchover time
• Diagnostics: Continuous self-test, link integrity monitoring, data error detection, watchdog timer
• Indicators: Module status, channel active, link status, alarm summary, power status
• Isolation: 2.5 kV AC optical isolation on fiber ports, 1.5 kV AC on serial ports
• Power Supply: 24–60 V DC or 110–220 V DC/AC via external power module
• Power Consumption: 15 W maximum
• Operating Temperature: -5°C to +55°C
• Certifications: CE, UL, CSA, IEC 61000-6-2/6-4, IEEE 1613, IEC 61850-3 compliant

Advantages and Features

The ABB KUC755AE117 3BHB005243R0117 delivers exceptional communication reliability through its fully redundant architecture, where dual independent communication channels operate in parallel with automatic failure detection and bumpless transfer. Unlike standard industrial communication modules requiring external redundancy management, the ABB KUC755AE117 3BHB005243R0117 incorporates integrated redundancy control logic that continuously monitors link status, data integrity, and module health, automatically switching to standby channel within 5 milliseconds of primary channel degradation or failure. The module’s fiber optic interfaces provide complete galvanic isolation between HVDC valve hall equipment and control room electronics, eliminating ground potential rise hazards during system faults and preventing electromagnetic interference from high-power thyristor switching. Comprehensive communication diagnostics continuously monitor bit error rates, signal quality, and protocol timing, providing early warning of deteriorating link conditions before communication failures occur. The ABB KUC755AE117 3BHB005243R0117 supports deterministic, time-critical communication protocols essential for HVDC converter firing control, with guaranteed maximum latency of 1 ms for high-priority telegrams. Non-volatile FRAM memory maintains critical configuration parameters and event logs without battery backup, eliminating periodic maintenance requirements and ensuring immediate operation following power restoration. The module’s hardened design meets IEEE 1613 and IEC 61850-3 Class 2 electromagnetic compatibility requirements for substation environments, withstanding surge withstand capability, fast transient bursts, and radiated RF interference without communication errors. Advanced cybersecurity features include role-based access control, secure boot, and encrypted communication channels compliant with NERC CIP and IEC 62443 requirements for critical infrastructure protection.

Application Cases in Application Fields

• Intercontinental HVDC Links: Deployed on ±500 kV, 3000 MW submarine HVDC interconnection between neighboring countries, redundant ABB KUC755AE117 3BHB005243R0117 modules provide deterministic communication between rectifier and inverter stations separated by 400 km, enabling stable power flow control with < 10 ms response to grid disturbances.
• Offshore Wind Integration: Installed on HVDC converter platform connecting 900 MW North Sea wind farm to mainland grid, the ABB KUC755AE117 3BHB005243R0117 interfaces with offshore wind turbine controllers via IEC 60870-5-104, providing real-time power curtailment commands during transmission constraints.
• Back-to-Back HVDC Stations: Utilized in asynchronous grid interconnection projects, the ABB KUC755AE117 3BHB005243R0117 coordinates power exchange between 50 Hz and 60 Hz systems, its redundant fiber optic links providing noise-immune communication in high-EMI valve hall environments.
• HVDC Transmission Upgrades: Applied in legacy HVDC scheme modernization projects, the ABB KUC755AE117 3BHB005243R0117 replaces obsolete communication controllers while maintaining compatibility with existing valve base electronics, extending system life without complete converter station replacement.
• Mine Electrical Systems: Implemented in underground mine HVDC power distribution systems, the ABB KUC755AE117 3BHB005243R0117 provides intrinsically safe fiber optic communication to explosion-proof converter enclosures, its galvanic isolation eliminating shock hazards in wet mining environments.

Comparison with Competing Products

The ABB KUC755AE117 3BHB005243R0117 occupies a unique market position as a specialized HVDC communication controller rather than a general-purpose substation automation device. While Siemens SICAM A8000 and GE Multilin D400 provide capable substation communication, they lack native support for ABB’s proprietary MACH 2 protocols and cannot directly interface with HVDC valve base electronics without significant engineering modification. The ABB KUC755AE117 3BHB005243R0117 ‘s sub-5 ms failover time significantly exceeds the 50–100 ms recovery times of general-purpose communication controllers, a critical advantage for HVDC applications where communication interruptions exceeding one power cycle can trigger converter blocking. For ABB HVDC system operators, the ABB KUC755AE117 3BHB005243R0117 represents the only fully supported, configuration-managed communication solution for MACH 2 control platforms.

Selection Suggestions and Precautions

• System Compatibility Verification: Confirm that your MACH 2 control and protection system version supports the ABB KUC755AE117 3BHB005243R0117 AE117 revision; specific firmware variants are matched to HVDC project configuration and are not universally interchangeable between different HVDC schemes.
• Fiber Optic Interface Matching: The ABB KUC755AE117 3BHB005243R0117 fiber optic ports require specific wavelength (820 nm or 1300 nm) and connector type (ST, SC, LC) matching valve base electronics and station communication infrastructure; verify compatibility before installation.
• Redundancy Configuration: For critical HVDC applications, configure redundant ABB KUC755AE117 3BHB005243R0117 modules with physically separated fiber optic cabling routes; single-point fiber failures should not affect communication availability in properly configured redundant systems.
• Firmware Version Management: The ABB KUC755AE117 3BHB005243R0117 contains HVDC scheme-specific firmware; maintain archive copies of installed firmware versions and document any project-specific modifications; unauthorized firmware changes can cause catastrophic control system misoperation.
• Spare Parts Strategy: Given the ABB KUC755AE117 3BHB005243R0117 ‘s critical role in HVDC link availability and typical lead times of 16–20 weeks for factory-configured units, maintain fully configured hot-spare modules for each HVDC pole with verified firmware and configuration backup.
• Environmental Installation: Install the ABB KUC755AE117 3BHB005243R0117 in clean, temperature-controlled control room environments; valve hall installation requires additional environmental protection including positive pressure cabinets and cooling to maintain specified operating temperature range.
• Cyber Security Compliance: For NERC CIP regulated HVDC facilities, configure ABB KUC755AE117 3BHB005243R0117 with enhanced cybersecurity features including SNMPv3, RADIUS authentication, and encrypted syslog; default settings do not meet critical infrastructure protection requirements.
• Obsolescence Management: The MACH 2 platform remains supported but ABB has designated next-generation MACH 3 platform for new HVDC projects; facilities planning 15+ year operating horizons should evaluate MACH 3 upgrade paths while maintaining adequate ABB KUC755AE117 3BHB005243R0117 spares for existing fleet.
• Documentation Requirements: Maintain complete ABB KUC755AE117 3BHB005243R0117 configuration records including IP addressing, protocol parameters, fiber optic link budgets, and redundancy group assignments; these records are essential for troubleshooting and system restoration following major outages.
• Pre-Commissioning Verification: Before ABB KUC755AE117 3BHB005243R0117 installation, verify fiber optic link power budgets using optical power meter; excessive attenuation (> 3 dB above calculated budget) causes intermittent communication errors extremely difficult to diagnose after system commissioning.
• Training Requirements: The ABB KUC755AE117 3BHB005243R0117 requires specialized ABB HVDC engineering training for configuration and troubleshooting; facilities should maintain in-house competency or establish service agreements with ABB for communication system support.
• Periodic Maintenance: Implement annual ABB KUC755AE117 3BHB005243R0117 diagnostic verification including fiber optic link testing, redundancy failover exercises, and communication error log analysis; proactive identification of marginal components prevents unplanned HVDC outages.
• Grounding Requirements: The ABB KUC755AE117 3BHB005243R0117 requires single-point grounding of communication cable shields at control room entry; multiple ground connections create ground loops introducing 50/60 Hz interference into time-critical communication channels.
• Software Compatibility: The ABB KUC755AE117 3BHB005243R0117 configuration software is HVDC project-specific and may not be compatible with standard ABB control system engineering tools; maintain dedicated engineering workstations with appropriate software versions for each HVDC scheme.
