Description

Product Description

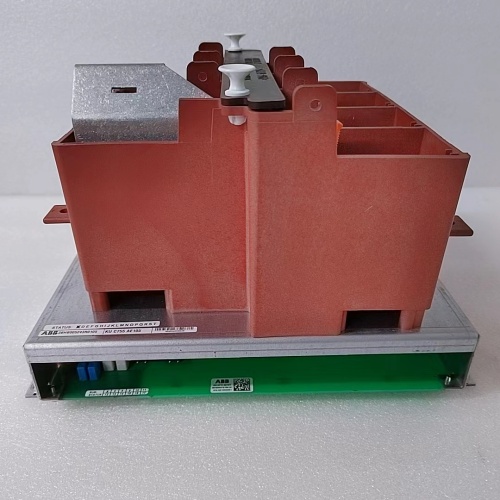

The ABB KUC755AE105 3BHB005243R0105 is a high-performance, multi-drive Control Interface Module, specifically a Drive Control Panel (DCP) for ABB’s ACS 6000 and ACS 6080 series of medium voltage drive cabinets. This module is not a standard PLC component but serves as the centralized “nerve center” within a multi-drive system, coordinating communication, control, and protection between the drive’s power sections and the higher-level automation system (DCS/PLC). The ABB KUC755AE105 3BHB005243R0105 handles critical functions such as sequencing, interlocking, speed reference processing, and system-wide diagnostics. For engineers and technicians responsible for large motor drive systems in critical applications, understanding the role of the ABB KUC755AE105 3BHB005243R0105 is essential for operation and troubleshooting. Full technical documentation for this module can be found at [Insert Link Here].

Product Parameters

• Product Type: Drive Control Panel (DCP) / Master Control Unit
• System Series: ABB ACS 6000, ACS 6080 Medium Voltage Drives.
• Primary Function: Serves as the main control and communication hub for a multi-drive or single high-power drive system. It acts as the master controller for the inverter and converter control units (INU, CONU).
• Processor: Features a powerful, dedicated processor for real-time drive control and sequencing logic.
• Communication Interfaces:
  • Drive Internal Bus: Manages high-speed, real-time communication with the inverter (INU) and converter (CONU) control units via a proprietary fiber-optic network (DCOI – Drive Control Optical Interface).
  • External Plant Interface: Provides standard fieldbus interfaces for connection to the plant DCS or PLC, such as:
    • PROFIBUS DP
    • Modbus TCP/IP (Ethernet)
    • IEC 61850
  • HMI Interface: Connects to the local drive operator panel (e.g., NDPP-12/C) for local control and monitoring.
• I/O Capability: Includes a base set of digital and analog I/O for direct connection to critical safety interlocks, emergency stops, and analog setpoints.
• Control Functions: Executes system-level control sequences (start/stop/ramp), handles interlocking between drive sections, processes speed/torque references, and implements drive-specific protection and supervision logic.

Advantages and Features

• Centralized System Control: The ABB KUC755AE105 3BHB005243R0105 provides a single, intelligent point of control for the entire MV drive system, simplifying integration with plant automation and ensuring coordinated operation of all drive sections.
• High-Speed, Deterministic Internal Communication: The fiber-optic DCOI network ensures fast, noise-immune, and reliable data exchange between the DCP and the power section controllers, which is critical for precise motor control.
• Comprehensive Diagnostics and Alarming: Aggregates diagnostic information from all subordinate units (INU, CONU, power supplies), providing a unified and detailed view of the drive system’s health to operators and maintenance personnel.
• Flexible Plant Integration: Support for multiple industry-standard fieldbus protocols allows for seamless integration into virtually any plant control architecture.
• Robust and Redundant Design: Engineered for high availability, often supporting redundant configurations (e.g., hot-standby DCP) and operating reliably in the electrically noisy environment of a drive cabinet.
• Advanced Sequencing and Protection: The built-in control logic handles complex startup/shutdown sequences and system-level protective interlocking, reducing the burden on the external PLC.

Application Cases in Key Fields

• Mining & Minerals: Controlling the main drives for SAG mills, ball mills, and overland conveyors, where coordinated control of multiple motor sections is required.
• Oil & Gas (LNG, Pipeline): Driving main refrigerant compressors in LNG plants and mainline compressors for pipelines, where reliability and precise control are paramount.
• Metals Industry: Powering the main drives for rolling mills (hot and cold) and run-out tables in steel plants.
• Power Generation: Used as starter drives for large synchronous condenser motors or in pump storage applications.
• Marine Propulsion: Serving as the core control unit for electric propulsion drives in large vessels.

Comparisons with Competing Products

The ABB KUC755AE105 3BHB005243R0105 is specific to ABB’s high-power IGCT-based drive platform. Its competitors are the master control units from other MV drive OEMs:

• Vs. Siemens SINAMICS SL150 Control Units: Siemens uses a different control architecture (typically with CU320 controllers). The ABB KUC755AE105 is distinguished by its deep integration with ABB’s IGCT power semiconductors and the DCOI network.
• Vs. GE (now WEG) MV Drive Control Boards: GE drives have their own proprietary master controllers. The ABB module’s advantage often lies in its widely recognized fiber-optic control system and extensive application experience in very high-power ranges.
• Vs. Using an External PLC for Master Control: While an external PLC can perform sequencing, the ABB KUC755AE105 3BHB005243R0105 is optimized for the task, with direct, low-level access to drive variables and faster response times for drive-internal events. It is the recommended and certified approach.

Selection Suggestions and Precautions

• Selection Advice:
  1. Drive System Specification: This module is an integral part of an ACS 6000/6080 drive. Its selection is determined by the overall drive specification (power rating, configuration) and the required communication interfaces to the plant.
  2. Define Communication Protocol: Clearly specify the required plant fieldbus protocol (e.g., PROFIBUS DP-V1, Modbus TCP) when ordering to ensure the ABB KUC755AE105 3BHB005243R0105 is equipped with the correct option.
  3. Plan for Redundancy: For mission-critical applications, specify a redundant DCP configuration from the outset.
  4. Verify Software and Firmware: Ensure you have access to the necessary ABB drive commissioning and service tools (e.g., DriveWindow) compatible with the module’s firmware.
• Important Precautions:
  1. High Voltage Hazard: The module is located inside a medium-voltage drive cabinet. Any work requires that the drive is fully isolated, discharged, and grounded, following strict electrical safety procedures.
  2. ESD and Handling: The module contains static-sensitive components. Handle with proper ESD precautions.
  3. Firmware Management: The firmware of the ABB KUC755AE105 3BHB005243R0105 must be compatible with the firmware of all connected INU and CONU units. Mismatched firmware is a common source of communication faults.
  4. Configuration Backup: Before any maintenance or replacement, a complete backup of the drive parameters and configuration must be taken using DriveWindow. This is critical for recovery.
  5. Fiber-Optic Handling: The DCOI connections use fragile fiber-optic cables. Handle them with extreme care, avoid sharp bends, and keep connectors clean.
