Description

Product Analysis Report

Product Description

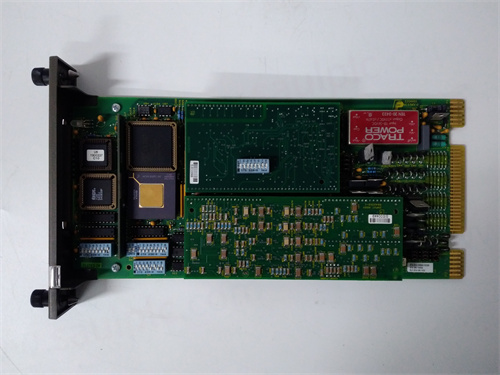

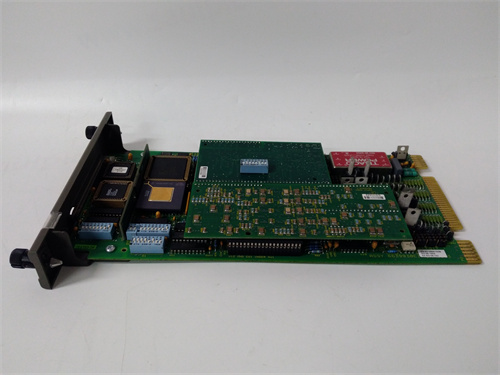

The ABB IMASI23 is a high-performance analog input module from the renowned ABB S800 I/O family, designed for integration with ABB’s AC 800M series and other compatible Process Automation Controller (PAC) systems. This module specializes in acquiring precise analog signals from field instrumentation, making it a fundamental component for monitoring critical process variables. The ABB IMASI23 (product link: ABB IMASI23) is engineered to convert standard industrial current or voltage signals from sensors and transmitters into high-resolution digital data for the controller. It plays a pivotal role in Distributed Control Systems (DCS) and large-scale PLC applications where measurement accuracy and reliability are non-negotiable. With its robust design and advanced diagnostics, the ABB IMASI23 ensures data integrity for processes requiring precise control, establishing it as a trusted interface in complex automation architectures. System engineers consistently specify this module for its proven performance in demanding environments.

Product Parameters

• Manufacturer: ABB.
• Product Family: S800 I/O.
• Model: IMASI23 (Specific module type for analog input).
• Function: Analog Input Module, 8 channels.
• Input Signal: Configurable per channel for standard signals: 0/4-20 mA, 0-10V, etc.
• Resolution: High-resolution analog-to-digital conversion (typically 16-bit).
• Accuracy: High accuracy specification (e.g., ±0.05% of span) for precise measurement.
• Isolation: Channel-to-channel and channel-to-bus isolation for superior noise immunity and safety.
• Diagnostics: Extensive onboard diagnostics for wire break, short circuit, and out-of-range signals.
• Communication: Connects via the internal S800 I/O bus to a communication interface (e.g., CI854) which links to the main controller.
• Hot Swapping: Supports module replacement without powering down the entire I/O station when used in a compatible, redundant configuration.
• Certifications: Complies with major international standards for industrial automation equipment.

Advantages and Features

• Exceptional Measurement Accuracy: The ABB IMASI23 provides high-resolution conversion and excellent long-term stability, which is critical for advanced process control, quality assurance, and regulatory reporting.
• Comprehensive Diagnostics: Advanced diagnostic capabilities proactively detect field wiring issues (like open circuit or short circuit), allowing for predictive maintenance and reducing troubleshooting time.
• High Density & Flexibility: Eight configurable channels in a single module save space in control cabinets and offer the flexibility to mix signal types within one unit to match process needs.
• Robust Noise Immunity: High-grade isolation protects sensitive measurements from ground loops and electromagnetic interference (EMI) prevalent in industrial plants, ensuring signal integrity.
• Seamless System Integration: As a native component of the ABB Ability™ System 800xA and Compact Product Suite, the ABB IMASI23 is fully supported by engineering tools for easy configuration, commissioning, and asset management.

Application Cases in Key Fields

• Chemical & Petrochemical Processing: Precisely monitors reactor temperatures, flow rates, and pressure levels for batch and continuous control.
• Oil & Gas Production & Refining: Acquires data from level transmitters in separators, pressure sensors on pipelines, and analytical instrument outputs.
• Pharmaceutical & Biotechnology: Provides accurate measurement for critical process parameters (CPPs) in fermenters, bioreactors, and purification skids under strict regulatory compliance.
• Power & Water Treatment: Monitors pH, conductivity, pressure, and flow in water treatment plants and boiler feed systems.
• Pulp & Paper Industry: Measures consistency, level, and flow in various stages of the papermaking process.

Comparisons with Competing Products

The ABB IMASI23 competes with high-performance analog input modules from other major DCS/PLC manufacturers like Emerson (DeltaV CHARMs), Siemens (ET 200SP analog input modules), and Yokogawa. Compared to standard PLC analog cards, the S800 I/O series, including the IMASI23, is typically designed for higher channel density, superior accuracy, more robust diagnostics, and deeper integration into a plant-wide control and information system. Its primary advantages are its role within the cohesive ABB ecosystem, its exceptional reliability record, and its advanced diagnostic features that support modern asset management strategies.

Selection Suggestions and Precautions

• Verify System Compatibility: Ensure the ABB IMASI23 is compatible with your specific S800 I/O baseplate (e.g., TB801 or TB811) and the corresponding communication interface module linking to your controller (AC 800M, etc.).
• Plan Channel Configuration: Determine the required signal type (mA or V) and range for each channel beforehand. Configuration is typically done via software, but proper field wiring must match the intended signal type.
• Consider Environmental Conditions: Verify the module’s operating temperature range is suitable for its installation location within the control cabinet or remote I/O enclosure.
• Implement Proper Wiring Practices: Use shielded, twisted-pair cables for analog signals and follow guidelines for single-point grounding to maximize the module’s noise immunity capabilities. Adhere to terminal torque specifications.
• Utilize Diagnostic Information: Configure the controller to utilize the module’s diagnostic data for alarm generation and predictive maintenance, rather than just using the process value.
