ABB GRBTU 3BSE013175R1

Description

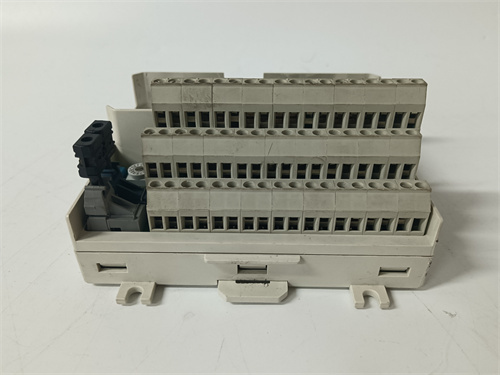

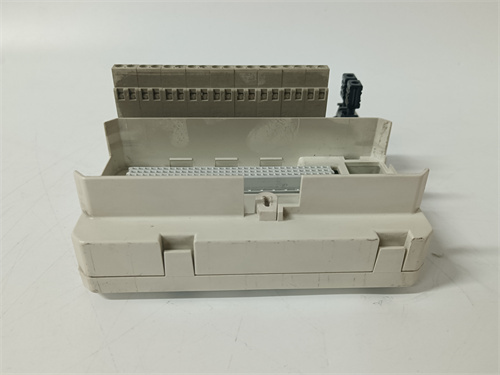

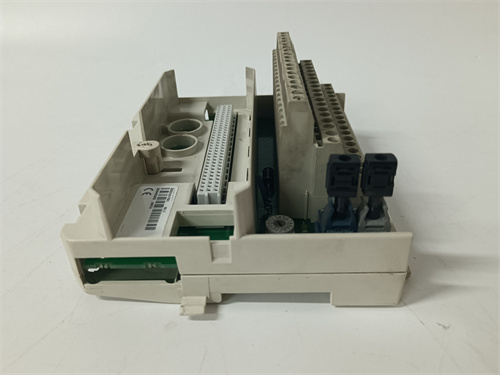

ABB GRBTU 3BSE013175R1: Gigabit Ring Bridge Termination Unit for Industrial Ethernet

Product Description

The ABB GRBTU 3BSE013175R1 is a specialized industrial networking device designed for ABB’s System 800xA and related automation architectures. This unit functions as a Gigabit Ring Bridge Termination Unit, a critical component for building robust, high-availability Ethernet network topologies. The primary role of the ABB GRBTU 3BSE013175R1 is to manage and terminate a high-speed Gigabit Ethernet fiber optic ring, providing deterministic network redundancy and ensuring continuous communication between controllers, operator stations, and I/O systems. By creating a redundant ring topology, it prevents a single point of failure in the network cabling from causing a system-wide communication loss. For network engineers designing reliable plant-wide control networks, the ABB GRBTU 3BSE013175R1 is a key enabler of network resilience.

Product Parameters

• Product Type: Industrial Ethernet Switch / Ring Bridge Termination Unit
• Manufacturer Series: ABB System 800xA Network
• Module Designation: GRBTU
• Article Number / Order Code: 3BSE013175R1
• Primary Function: Manages a Gigabit Ethernet redundant fiber optic ring (often using standard protocols like MRP – Media Redundancy Protocol, or a proprietary ABB implementation).
• Port Configuration:
  • Ring Ports: Typically two Gigabit Ethernet ports (1000BASE-X SFP slots) for connecting into the fiber optic ring.
  • Access/Station Ports: Multiple (e.g., 4 or 8) 10/100/1000BASE-T copper Ethernet ports for connecting devices like controllers, workstations, or other switches.
• Redundancy Protocol: Supports media redundancy for ring topologies with fast recovery times (typically < 500ms).
• Network Standards: Complies with IEEE 802.3 for Ethernet and 802.1D for bridging. May support VLAN (802.1Q) and QoS (Quality of Service) features.
• Power Supply: Redundant, hot-swappable power supply inputs (e.g., 24 VDC or 110/240 VAC) for high availability.
• Mounting: Designed for standard 19-inch rack mounting.
• Management: Managed via web interface, command line interface (CLI), or potentially through ABB’s system engineering tools.
• Operating Temperature: Rated for industrial temperature ranges.

Advantages and Features

• High Network Availability: The core function of the ABB GRBTU 3BSE013175R1 is to provide a fault-tolerant network infrastructure. If a fiber cable is cut or a switch in the ring fails, the ring protocol reconfigures the network within milliseconds, maintaining communication for all connected devices.
• High Performance: Gigabit Ethernet backbone ensures high bandwidth for data-intensive applications like historian data transfer, video feeds, and controller-to-controller communication.
• Industrial Robustness: Built to withstand the electrical noise, temperature variations, and vibrations found in industrial plants, unlike commercial office switches.
• Seamless System Integration: As a native ABB networking component, the ABB GRBTU 3BSE013175R1 is designed for straightforward integration with AC 800M controllers and the 800xA system, with predefined configurations and support.
• Simplified Network Design: Provides a standardized, ABB-supported method for implementing a resilient plant-wide backbone, reducing design risk and validation time.
• Diagnostics and Management: Offers comprehensive port diagnostics, traffic monitoring, and management features to facilitate network troubleshooting and maintenance.

Application Cases in Application Fields

• Oil & Gas Refineries: Creating a redundant fiber optic ring connecting distributed control houses, remote I/O stations, and the central control room across a large facility.
• Power Generation Plants: Building the high-availability network backbone that links turbine control systems, balance-of-plant controllers, and the plant-wide DCS.
• Chemical & Pharmaceutical Complexes: Ensuring continuous network communication between process units, batch areas, and manufacturing execution systems (MES).
• Pulp & Paper Mills: Deploying a robust network across expansive mill areas subject to high electromagnetic interference.
• Water & Wastewater Treatment: Connecting widely dispersed sites (pump stations, treatment basins) to a central SCADA system via a fault-tolerant ring.

Comparison with Competing Products

The ABB GRBTU 3BSE013175R1 competes with industrial managed switches and ring managers from other major automation vendors like Siemens (SCALANCE X) and Rockwell Automation (Stratix 5700/5400), as well as from dedicated industrial networking companies like Hirschmann and Moxa. Its primary advantage is its pre-validated design and support within the ABB System 800xA ecosystem, potentially simplifying procurement, configuration, and technical support from a single vendor. Compared to using a collection of generic industrial switches, the GRBTU offers a specific, application-focused feature set for creating ABB-optimized ring topologies. However, for multi-vendor environments, a more vendor-neutral switch might be preferred.

Selection Suggestions and Precautions

1. Network Topology Planning: The ABB GRBTU 3BSE013175R1 is specifically designed for ring topologies. Clearly define your network architecture (single ring, multiple rings, star-of-rings) before selection and ensure you have the correct number of units to terminate and manage each ring.
2. Fiber Optic Compatibility: Carefully select the correct SFP (Small Form-factor Pluggable) transceivers for the ring ports based on your fiber type (single-mode/multi-mode), connector type (LC/SC), and required distance. Mismatched SFPs will not work.
3. Protocol Configuration: Ensure the redundancy protocol (e.g., MRP) is consistently configured across all switches in the ring. A misconfigured protocol can cause network loops and broadcast storms.
4. Power Supply Redundancy: For true high availability, utilize both power supply inputs connected to independent power sources. Using only one input creates a single point of failure.
5. Management and Security: Before installation, change default passwords, configure IP addresses, and set up VLANs if needed to segment control traffic from other network traffic. Leaving a managed switch at factory defaults is a security risk.
