ABB GFD563A101 | Unitrol 5000/6000 – Power Interface Board

Description

Product Introduction

That combined-cycle plant in Malaysia—the one with the ABB Unitrol 6000 system on the steam turbine—had a field failure during startup last year. The generator wouldn’t build voltage. The techs checked the field breaker, the exciter transformer, even the brushes. Nothing. I pulled up the event logs from the GFD563A101 in the excitation cabinet. Phase C firing pulses were missing. We scoped the output at the module—no pulses on channel 3. Swapped the board, and the generator came right up. One bad optocoupler, one 2,500 module, one 100,000 delay in commissioning.

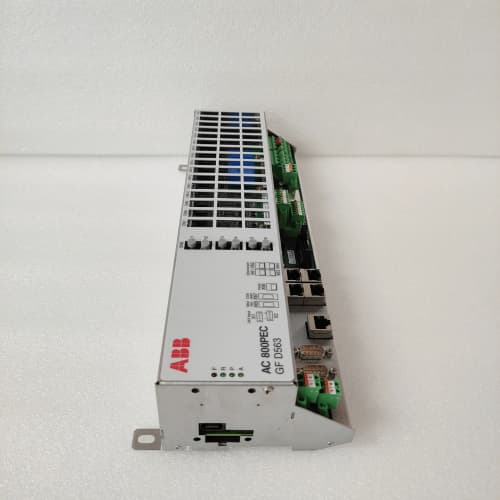

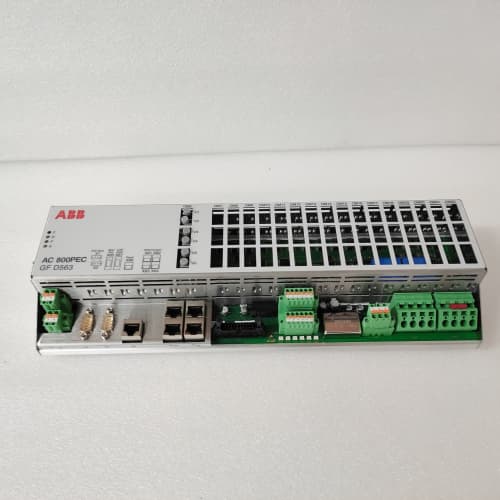

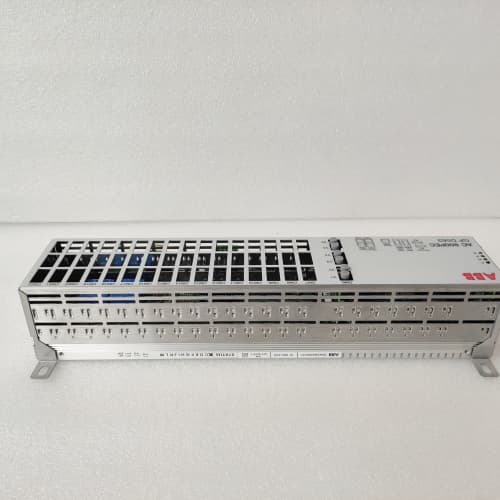

The ABB 3BHE046836R0101 GFD563A101 is the thyristor firing interface board in Unitrol 5000 and 6000 excitation systems. It sits between the digital control processor and the high-power thyristor bridges that supply DC field current to the generator rotor. The “GFD563A101” is the functional designation; “3BHE046836R0101” is the ABB ordering code for this specific revision. The board takes low-voltage firing commands from the control logic, isolates them optically, and amplifies them to drive the thyristor gates. It also monitors feedback from the power bridge—voltage, current, and fault status. For a six-pulse bridge, this board handles all six thyristors. It’s the last link in the chain before raw power hits the generator field.

Key Technical Specifications

Quality Inspection Process (SOP Transparency)

A firing board gets a thorough pulse test. Here’s our process.

1. Incoming Verification
   • Match both numbers: 3BHE046836R0101 and GFD563A101. (Different revisions exist—this is Rev. 01.)
   • Visual inspection: Look for burn marks around the output connectors. Check the PCB for conformal coating—should be even, no bubbles.
   • Inspect the fiber optic ports (if present) for damage.
   • Verify the revision sticker.
2. Power-On Self-Test
   • Install the board in a Unitrol test jig with simulated thyristor loads.
   • Apply 24V DC control power.
   • Watch the “POWER” LED—should be steady.
   • Connect to the test controller, verify the board is recognized.
3. Gate Pulse Test
   • Command the test controller to generate a 6-pulse firing pattern at 50 Hz.
   • Use an oscilloscope to measure pulses at each of the six outputs into a resistive load (10 Ω).
   • Verify amplitude (15V ±2V), pulse width (250 µs ±10%), and rise time (<1 µs).
   • Test at minimum and maximum pulse widths (100 µs and 500 µs).
   • Verify phase spacing (60° ±1°).
4. Peak Current Test
   • Connect a low-resistance load (1 Ω) to simulate a thyristor gate.
   • Measure peak current—must exceed 2A.
   • Verify the pulse shape—no ringing, no droop.
5. Isolation Test
   • 500V megger between all firing outputs (shorted) and control ground—>10 MΩ.
   • 2500V hi-pot for 1 minute—no breakdown.
6. Fault Detection Test
   • Simulate a missing pulse condition (disconnect one output).
   • Verify the fault is detected and reported.
   • Simulate a short circuit on an output—verify the module protects itself and reports fault.
7. Thermal Soak
   • 4 hours at 65 °C in a thermal chamber, running continuous firing pulses.
   • Monitor pulse amplitude and timing—no drift outside spec.
8. Firmware Verification
   • Read the firmware version via the service port.
   • Log it in the test report.
   • If the customer requests a specific version, we verify before shipping.
9. Final QC & Packaging
   • QC sticker with test date and operator initials.
   • Wrap in anti-static bag.
   • Double-box with foam padding.
   • Test report included—pulse timing diagrams, isolation test results.

Field Replacement Pitfalls

I’ve swapped these in hydro plants, thermal plants, and even a few nuclear stations. Here’s where people go wrong.

❗Pulse Timing
The firing pulses must be precisely aligned with the AC line voltage. If the sync signal from the PTs is missing or noisy, the pulses will be wrong—the thyristors will fire at the wrong time, causing half-wave conduction or commutation failure. Check the sync input before blaming the board.

Gate Drive Requirements
Different thyristors need different gate drive characteristics. This board is designed for a specific range. If you’ve replaced thyristors with a different type, the gate drive may be insufficient. Check the datasheets.

Fiber Optic Connections
If your system uses fiber optic links, those fibers are fragile. A cracked fiber or dirty connector can cause intermittent firing. Clean all connectors with alcohol and inspect with a scope.

Grounding
The gate drive board’s ground must be connected to the thyristor bridge’s common (usually the DC negative). If there’s a ground loop, the pulses may be noisy. Use a single-point ground.

Optocoupler Aging
The optocouplers that isolate the gate pulses age over time. Their current transfer ratio drops. A board that tests fine at room temperature may fail to trigger thyristors in a hot cabinet. We test at elevated temperature to catch this.

Nail these five, and your GFD563 will keep that generator excited for years.

New Original vs. Refurbished: Why It Matters

“New Original (New Surplus)” means this board was manufactured by ABB, packed in its original box, and never installed. The optocouplers have zero hours, the pulse transformers are unused, and the firmware is as shipped from the factory.

Refurbished risk in plain terms
A refurbished GFD563 often comes from a decommissioned generator. It may have run for years in a hot cabinet. The optocouplers are aged—their current transfer ratio has dropped. A refurbisher tests it at room temperature with a light load and calls it good. In a real generator, with high ambient heat, it may fail to fire the thyristors.

Real cost of a refurbished failure
If this board fails to fire a thyristor, the generator loses excitation and trips. On a large utility generator, that’s a grid event. The cost of the outage, the grid penalty, and the repair dwarfs the price difference.

What we provide as proof

• ABB box (or photos).
• Serial number recorded.
• Pulse timing diagrams (oscilloscope captures).
• Isolation test results.
• 12‑month warranty.

Pricing context
We’re priced 40% above the cheapest “pulled” GFD563 boards and 25% below ABB’s current list price. That pays for the full pulse test, the 4‑hour thermal soak, and the warranty that covers replacement if an optocoupler fails.

Performance Benchmarks & Test Results

Test conditions: Unitrol test jig, simulated thyristor load, 24V DC control power, ambient 24 °C.

We keep oscilloscope captures of every pulse train—ask, and we’ll email the PDF.
