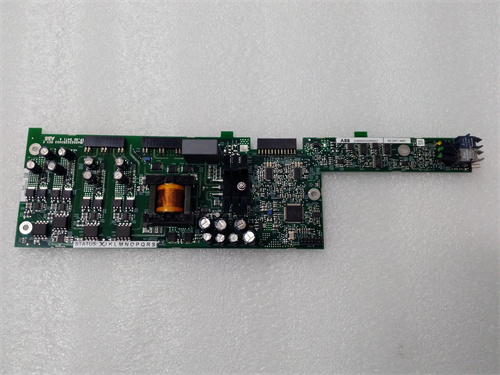

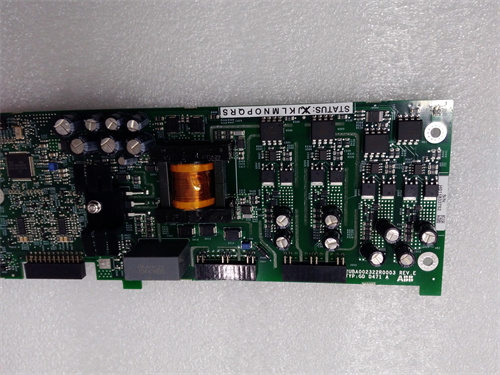

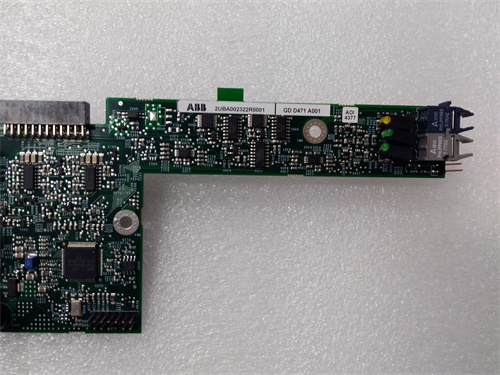

ABB GDD471A001

Description

Product Description

The ABB GDD471A001 is a high-performance digital output module designed for ABB’s Symphony Harmony and Advant distributed control systems (DCS), specifically within the S800 I/O family. This module is a 16-Channel Sourcing Digital Output module, engineered to provide a reliable and high-density interface for switching field loads such as solenoid valves, motor contactors, and indicator lamps. The GDD471A001 operates by sourcing current, meaning it supplies the positive voltage to the load, with the load completing the circuit to ground. Integrating the ABB GDD471A001 into an S800 I/O rack ensures robust execution of control commands for a wide array of industrial actuators.

Product Parameters and Specifications

• Product Type: 16-Channel Sourcing Digital Output Module.
• Compatible Systems: ABB Symphony Harmony, Advant DCS with S800 I/O.
• Number of Channels: 16 isolated sourcing outputs.
• Output Type: Sourcing (PNP), transistor-based.
• Load Voltage: Designed for 24V DC field supply.
• Output Current Rating: Specified per channel (e.g., 0.5A) and a total maximum current for the module (e.g., 4A).
• Protection: Includes internal protection against short-circuit, overload, and inductive kickback from loads like solenoid coils.
• Isolation: Group isolation between the internal logic/bus and the field-side power circuit.
• Status Indicators: LED per channel to indicate the ON/OFF (active) state of the output.
• Connection: Uses a high-density, removable connector that mates with a corresponding terminal base unit (e.g., a CHS series base).

Advantages and Features

1. Optimized for Sourcing (PNP) Field Devices: The ABB GDD471A001 is designed for the common standard where field devices are configured to receive a positive switching voltage. This simplifies wiring when interfacing with PNP-compatible sensors and actuators.
2. High-Density and Space Efficiency: With 16 output channels in a single module slot, it provides excellent point density, maximizing the I/O capacity of an S800 rack and reducing the hardware footprint for applications with many actuators.
3. Robust Built-in Protection: Integrated short-circuit and overload protection on each channel enhances the module’s reliability and longevity by preventing damage from common field wiring faults or load failures, reducing maintenance and downtime.
4. Clear Diagnostic Visibility: The per-channel LED indicators provide instant, at-a-glance confirmation of the output command status, which is invaluable during commissioning, operation, and troubleshooting.
5. Hot-Swappable for High Availability: In systems configured for it, the module can be replaced without powering down the entire I/O rack or process, supporting continuous operation and ease of maintenance.

Application Cases in Various Fields

• Chemical and Process Industries: Controls multiple solenoid valves for batch sequencing, tank routing, and automated valve manifolds in continuous and batch processes.
• Water and Wastewater Treatment: Operates pump motor contactors, actuator motors for large valves, and alarm beacons/flashers across treatment plants.
• Material Handling Systems: Drives actuators for conveyor diverters, gate solenoids, and palletizer clamps where numerous pneumatic or electrical devices require control.
• Power Generation (Balance of Plant): Controls actuators for auxiliary systems such as lube oil pumps, cooling water valves, and damper drives.

Comparison with Competing Products

• vs. Sinking (NPN) Output Modules: Sinking modules switch the ground side of the load. The sourcing GDD471A001 is chosen based on the prevailing electrical design standard of the plant and the type of field devices used. They are not interchangeable without changing the field device wiring scheme.
• vs. Relay Output Modules: Relay modules can switch AC/DC and handle higher currents but are slower, have a limited mechanical life, and are bulkier. The transistor-based GDD471A001 offers faster switching, longer life, higher density, and is ideal for high-speed DC load switching.
• vs. Lower-Density Output Modules (8-channel): Lower-density modules may offer higher current per channel. The GDD471A001 is the optimal choice when the number of loads is high and each load’s current requirement is within its per-point rating, providing better cost and space efficiency.

Selection Suggestions and Precautions

1. Correct Base Unit Selection: This module requires a compatible 40-pin terminal base unit (e.g., from the CHS series). The module and base are sold separately. Ensure you select the correct sourcing-type base unit for the GDD471A001.
2. External Field Power Supply Requirement: The module requires a clean, external 24V DC power supply connected to the terminal base to power the field loads. This supply must be sized to handle the total inrush and steady-state current of all simultaneously active outputs.
3. Load Analysis is Critical: Calculate the inrush and holding current for each connected load (e.g., solenoid coil). Ensure the sum of currents for all active channels does not exceed the module’s total current rating to prevent overload and potential damage.
4. Fusing and External Protection: Despite internal protection, it is a critical safety and best practice to install an external fast-acting fuse on the field power supply line feeding each output group on the base unit.
5. Suppression for Inductive Loads: For highly inductive loads like large contactor coils or solenoids, install an external flyback diode or varistor directly across the load terminals to suppress voltage spikes and protect the module’s output transistors.
