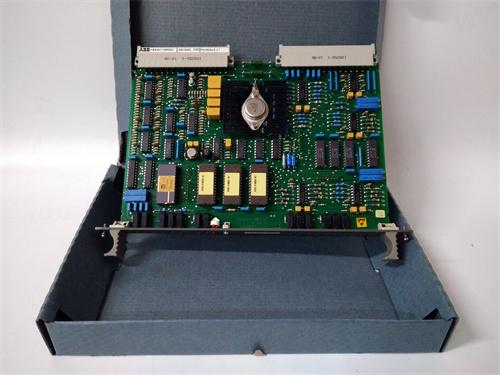

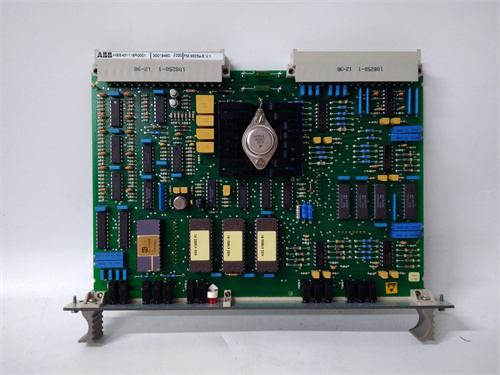

ABB FM9925A-E: Multifunctional Field Module with HART for System 800xA

Product Description

The ABB FM9925A-E is a highly advanced, intelligent fieldbus module for the S800 I/O High Integrity family within ABB’s System 800xA Extended Automation platform. This module is specifically designed to interface with field devices that support the HART (Highway Addressable Remote Transducer) communication protocol over a standard 4-20mA current loop. The ABB FM9925A-E functions as a versatile I/O channel, capable of handling both the primary analog signal (PV) and the bidirectional digital HART data from smart field instruments such as pressure transmitters, temperature transmitters, and level gauges. This integration enables remote configuration, advanced diagnostics, and access to multiple process variables from a single device, all within the 800xA engineering and asset management environment. The ABB FM9925A-E is a critical component for modernizing field communication and enabling predictive maintenance strategies.

Product Parameters

• Product Type: Intelligent HART Analog I/O Module
• Manufacturer: ABB
• Part Number: FM9925A-E
• I/O System: S800 I/O High Integrity
• Channels: Typically 4 or 8 channels, each supporting HART communication.
• Signal Type: Analog input or output (4-20mA) with superimposed HART FSK (Frequency Shift Keying) signal.
• Protocol: HART Protocol (Bell 202 standard).
• Isolation: High degree of channel-to-channel and system isolation.
• Power: Supplies loop power to two-wire HART field devices.
• Diagnostics: Comprehensive diagnostics for signal integrity, open wire, short circuit, and HART communication status.
• Safety: Can be used in safety-related applications (up to SIL 2/3) when part of a certified safety loop.

Advantages and Features

The key advantage of the ABB FM9925A-E is its seamless integration of HART device management directly into the core control system architecture. It eliminates the need for separate HART multiplexers or handheld communicators by bringing all device data into the 800xA system. Features include simultaneous transmission of the 4-20mA analog value for fast control and digital HART data for configuration and secondary variables (e.g., sensor temperature, device status). The module provides excellent noise immunity for the HART signal. Its integration with 800xA’s Asset Optimization and Control Builder tools allows for centralized device configuration, calibration management, and predictive maintenance alerts based on device diagnostics, maximizing the value of smart field investments.

Application Cases in Various Fields

This module is used to integrate intelligent field instrumentation into modern process control systems. In Oil & Gas production, the ABB FM9925A-E connects to HART-enabled pressure and temperature transmitters on wellheads and pipelines, enabling remote monitoring of device health and process conditions. Within Pharmaceutical and Biotech, it interfaces with smart sanitary pressure and temperature transmitters, allowing for electronic records of calibration and device parameters for compliance. For Chemical Plants, it connects to level and analytical transmitters, providing access to diagnostic data that can predict fouling or sensor failure. It is also ideal for Water Treatment where monitoring pump health via smart pressure sensors is critical.

Comparisons with Competing Products

Compared to standard analog I/O modules, the ABB FM9925A-E offers a significant leap in functionality by unlocking the digital data in HART devices. Competing DCS platforms from Emerson (DeltaV CHARM cards with HART) and Honeywell (Experion with HART I/O) offer similar integrated HART solutions. The ABB FM9925A-E is distinguished by its deep integration within the 800xA’s unified engineering and operations environment, which spans control, safety, and asset management. Compared to using external HART modems, this module offers a more reliable, secure, and maintainable solution that is fully engineered into the control system’s I/O architecture.

Selection Suggestions and Precautions

1. Field Device Compatibility: Verify that your field instruments are HART-enabled and support the desired HART commands. While the ABB FM9925A-E provides the physical layer and master functionality, the specific device description files (DD/DTM) may be required for full configuration within 800xA.
2. Loop Resistance Calculation: HART communication requires the total loop resistance (wire resistance + intrinsic safety barrier resistance + ABB FM9925A-E internal impedance) to be within the HART specification (typically 250-1100 ohms). Exceeding this can attenuate the HART signal.
3. Configuration in 800xA: Each channel of the ABB FM9925A-E must be configured in Control Builder for its primary function (AI/AO) and the HART parameters. The associated field device should be configured as an asset in the system for full device management.
4. Grounding and Noise: For optimal HART communication, ensure proper single-point grounding of the instrument loop. Avoid running HART signal cables in parallel with high-voltage AC power cables to prevent noise interference that can disrupt the digital signal.
5. Safety Loop Considerations: When used in a safety instrumented function, the entire loop, including the ABB FM9925A-E module and its configuration, must be designed and validated according to the required Safety Integrity Level (SIL). The HART functionality is typically used for diagnostics and is not part of the safety-critical 4-20mA signal path.
