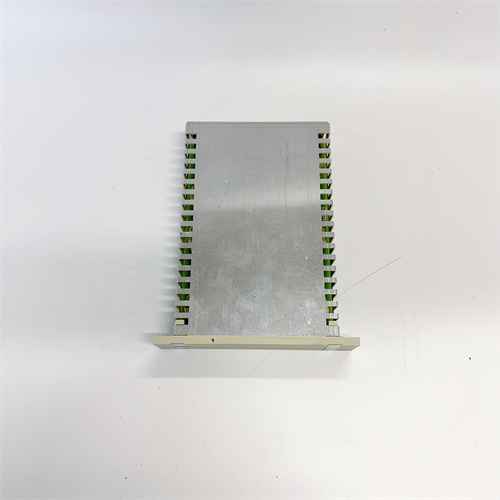

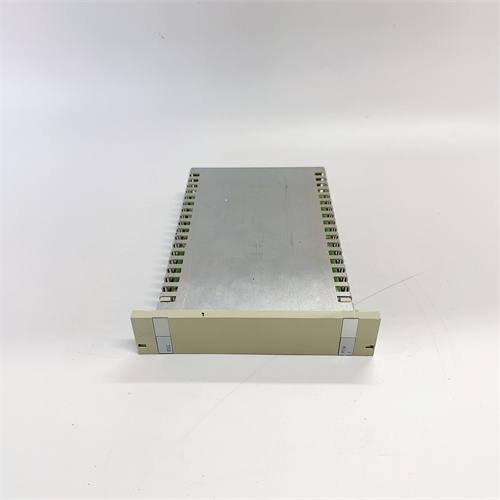

ABB E3EC HENF315125R1

Description

Product Description

The ABB E3EC HENF315125R1 is a high-performance, modular communication interface module from ABB’s renowned Freelance AC 900F distributed control system (DCS) series. This specific component, the ABB E3EC HENF315125R1, is designed to function as a Profibus DP slave module. It enables seamless and robust data exchange between the Freelance controller and a vast ecosystem of Profibus-compatible field devices such as remote I/O stations, drives, sensors, and actuators. This module is critical for integrating third-party equipment into the ABB automation environment, and its reliable operation is key to achieving unified process control. The ABB E3EC HENF315125R1 exemplifies the modularity and open connectivity that makes the Freelance system a versatile solution for hybrid and process applications.

Product Parameters

• Product Type: Profibus DP Slave Communication Module.
• Brand & System: ABB, for the Freelance AC 900F DCS platform.
• Model: ABB E3EC HENF315125R1.
• Communication Protocol: Profibus DP (Decentralized Peripherals) compliant to EN 50170.
• Data Transfer Rate: Configurable, supporting standard Profibus DP speeds up to 12 Mbps.
• Interface: 9-pin D-sub female connector (RS-485) for Profibus network connection.
• Module Addressing: Set via rotary switches on the front panel.
• Status Indication: LEDs for power, communication activity, and error diagnostics.
• Power Supply: Powered via the Freelance rack backplane.
• Mounting: Plugs into a dedicated slot in the Freelance AC 900F controller or station rack.
• Compatibility: Designed for use with specific Freelance controllers and bases (e.g., CI522, CI523).

Advantages and Features

The primary advantage of the ABB E3EC HENF315125R1 is its ability to bridge the ABB Freelance DCS with the widely adopted Profibus DP fieldbus standard, offering tremendous flexibility in device selection. Its key features include high-speed, deterministic data exchange, which is crucial for real-time control. The module supports comprehensive diagnostic functions via its LED indicators and the engineering software, allowing for quick fault localization. Its hot-swappable design (in supported configurations) facilitates maintenance without a full system shutdown, enhancing overall plant availability. The robust industrial design ensures stable operation in harsh plant floor environments.

Application Cases in Application Fields

This module is extensively used in industries where hybrid control (discrete and process) is required and where Profibus is the established field network. In the food and beverage industry, the ABB E3EC HENF315125R1 connects Freelance controllers to Profibus-based valve terminals, motor starters, and weighing systems on packaging lines. In water treatment plants, it integrates remote Profibus I/O panels scattered across filter beds and pump stations. For building automation in large facilities, it can link the control system to Profibus-based HVAC and energy metering devices. Its use is also common in manufacturing cells where ABB controllers need to communicate with third-party CNC machines or material handling systems via Profibus.

Comparisons with Competing Products

Compared to using a gateway device from a third-party vendor, the ABB E3EC HENF315125R1 offers native, optimized integration. It is recognized and configured directly within the Freelance Engineering Tool, providing a seamless user experience and guaranteed performance. Competing DCS/PLC platforms like Siemens PCS 7 or Siemens S7-300/400 have native Profibus-DP master capabilities on their CPUs, but for the ABB Freelance system, this module provides that dedicated, high-performance slave interface. It generally offers more reliable and straightforward integration than a standalone protocol converter, with direct support from ABB’s global service network.

Selection Suggestions and Precautions

• System Compatibility: Verify that your Freelance AC 900F controller base unit (e.g., CI522) has a free slot compatible with the ABB E3EC HENF315125R1 module. Consult the Freelance hardware catalog.
• Profibus Network Planning: Properly design the Profibus network segment, including correct termination (active/passive), baud rate selection, and addressing. Each ABB E3EC HENF315125R1 module must have a unique Profibus node address.
• GSD File: Ensure you have the correct and latest General Station Description (GSD) file for this module to integrate it into the Profibus master’s configuration software.
• Cable and Connectors: Use high-quality, shielded Profibus cables and connectors to ensure communication integrity and avoid noise-related issues.
• Configuration Backup: Always back up the configuration of the Freelance controller and the Profibus master. The module’s settings (address) are stored on the module itself.
