ABB DSTF610

Description

Product Description

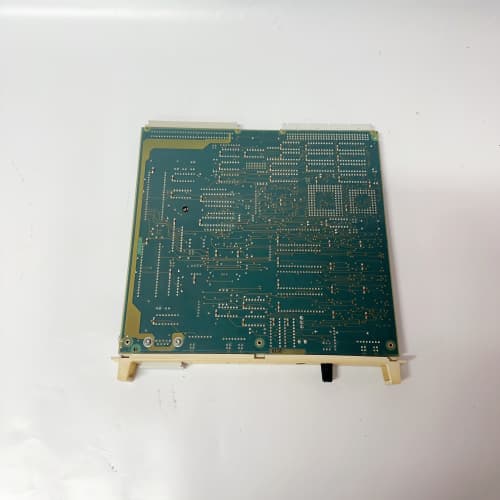

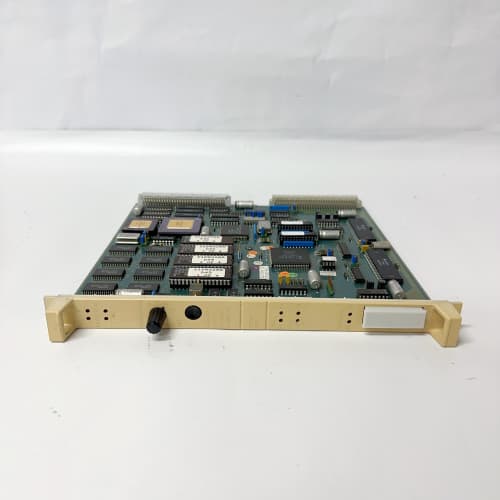

The ABB DSTF610 is a high-density Digital Input (DI) module designed for the ABB Advant OCS (Open Control System) and MOD 300 product families, specifically for the S800 I/O system. This module provides a reliable and high-channel-count interface for connecting discrete field devices such as pushbuttons, limit switches, relay contacts, and proximity sensors to the automation system. The ABB DSTF610 excels in applications requiring the monitoring of a large number of binary status points, converting field voltage signals into digital data for the controller. Engineered for robustness and reliability in continuous process environments, the ABB DSTF610 is a key component for gathering essential plant status information. For engineers maintaining Advant OCS systems, this module is a common and critical part of the I/O infrastructure. Technical data and user manuals for the ABB DSTF610 can be accessed at [Insert Link Here].

Product Parameters

• Product Type: Digital Input Module (High-Density)
• System Series: ABB Advant OCS, MOD 300 (S800 I/O).
• Number of Channels: 32 digital input channels.
• Input Type: Sinking or Sourcing, configurable in groups (typically in groups of 8 or 16). Designed for 24 VDC field signals.
• Input Voltage Range: Typically 0-30 VDC, with a defined ON voltage threshold (e.g., >11 VDC) and OFF threshold (e.g., <5 VDC).
• Isolation: Provides optical isolation between field wiring and the internal S800 I/O bus in groups.
• Update Rate: Input states are read and updated synchronously with the scan cycle of the connected controller (e.g., AC 800M).
• Connection: Field wiring connects to a removable terminal block or a dedicated Field Termination Assembly (FTA).
• Diagnostics: Module-level diagnostics (communication, health) are provided to the controller. Individual channel status is typically indicated by LEDs on the module or FTA.
• Mounting: Installs into an S800 I/O mounting unit (e.g., TU847, TU849).

Advantages and Features

• High Channel Density: The primary advantage of the ABB DSTF610 is its ability to monitor 32 discrete signals in a single module slot, maximizing I/O capacity and optimizing control cabinet space.
• Flexible Configuration: Channels can be configured in groups for different field wiring schemes (sinking vs. sourcing), providing adaptability to various sensor and switch types.
• Excellent Noise Immunity: The optical isolation protects the sensitive control system from electrical noise, transients, and potential ground loops present in field wiring.
• Hot Swappable: Designed to be hot-swappable in systems that support it, allowing for replacement without shutting down the process, thereby increasing system availability.
• Seamless System Integration: As a genuine ABB DSTF610 module, it is fully configured and recognized within the ABB engineering tools (e.g., Control Builder M, Advant Station), ensuring reliable data mapping and diagnostics.
• Proven Reliability: Part of the rugged S800 I/O family known for its long-term performance in harsh industrial environments.

Application Cases in Key Fields

• Pulp & Paper Mills: Monitoring hundreds of limit switches on paper machine sections, valve position feedback, and sheet break detectors.
• Chemical Plants: Reading status of pump run feedback contacts, tank level switch alarms, and safety interlock permissives across a large processing unit.
• Oil & Gas (Refining): Monitoring fire & gas system manual call points, emergency shutdown pushbuttons, and pressure switch statuses in a compressor station.
• Water and Wastewater Treatment: Checking the status of pump auto/off switches, high-level alarms in clarifiers, and filter bed wash sequence positions.
• Material Handling: Connecting to photoelectric sensors, pallet present switches, and conveyor motor overload contacts in large warehouse automation.

Comparisons with Competing Products

• Vs. Other S800 Digital Input Modules (e.g., DSTD410): The ABB DSTF610 offers higher channel density (32 vs. 16). Other models may offer different voltage ratings (e.g., 120V AC) or faster update times.
• Vs. Digital Input Modules from Other DCS Vendors (e.g., Honeywell, Emerson): Functionally equivalent modules exist. The ABB DSTF610 is distinguished by its specific mechanical design, communication protocol (S800 bus), and integration with ABB’s engineering software.
• Vs. PLC-based High-Density DI Cards (e.g., Siemens ET200SP): Modern PLC remote I/O offers similar density. The ABB DSTF610 is part of a DCS-focused I/O system, often perceived as more robust for heavy process industry applications but may use an older fieldbus technology.
• Vs. Generic I/O Slices: Generic modules lack the system integration, guaranteed performance, and vendor support of a purpose-built module like the ABB DSTF610.

Selection Suggestions and Precautions

• Selection Advice:
  1. Verify System Compatibility: Ensure the ABB DSTF610 is used with a compatible S800 mounting unit and controller (e.g., AC 800M).
  2. Count and Categorize Inputs: Tally all digital signals and verify they are 24 VDC. Ensure the number of sinking vs. sourcing devices aligns with the module’s configurable groups.
  3. Assess Wiring Strategy: Plan for the high number of field wires. Using a Field Termination Assembly (FTA) is highly recommended for organized and reliable terminations.
  4. Consider Future Expansion: The high density of the ABB DSTF610 is an advantage, but ensure there is a logical grouping of signals to allow for future maintenance and troubleshooting.
• Important Precautions:
  1. Field Power Supply Quality: Use a clean, well-regulated 24V DC power supply for the field devices. Noise on this supply can cause erratic input readings.
  2. Correct Group Configuration: Misconfiguring a channel group (e.g., wiring sinking sensors to a group configured for sourcing) will result in all channels in that group failing to read correctly.
  3. Fusing: Consider providing individual or group fusing for the field wiring to protect the module’s internal input circuits from sustained overcurrent caused by field shorts.
  4. LED Status Monitoring: Utilize the channel status LEDs on the module or FTA during commissioning and troubleshooting to quickly verify signal states.
  5. Software Configuration: The module must be correctly configured in the control system’s hardware configuration. The software I/O address must match the physical module’s slot position.
