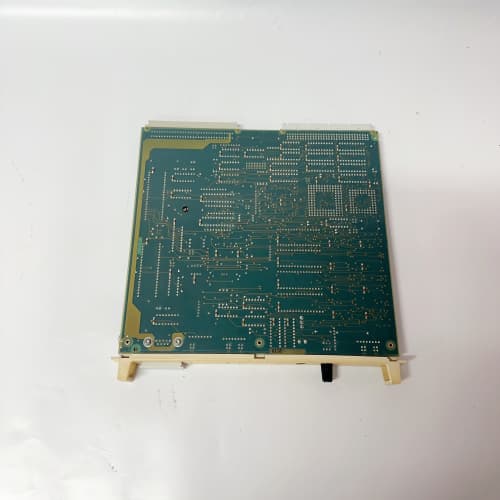

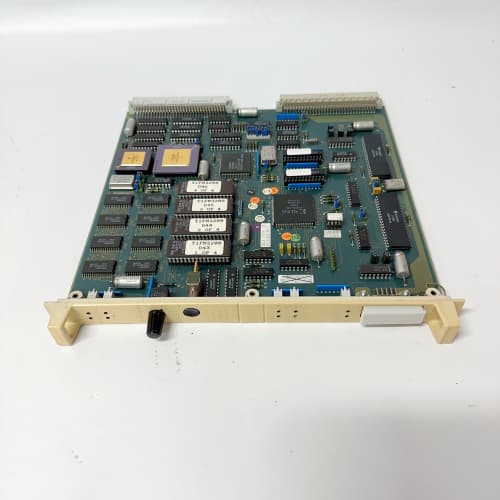

ABB DSCA190V 57310001-PK

Description

Product Overview and Introduction

The ABB DSCA190V 57310001-PK is a high-performance, rack-mountable vibration monitoring module from ABB’s comprehensive condition monitoring and machinery protection portfolio. This module, part of the ABB Ability™ System 800xA family, functions as a specialized Vibration Signal Conditioner or Monitoring Card. It is designed to interface with industrial vibration sensors—such as accelerometers, velocity transducers, or eddy current probes—to provide precise, continuous monitoring of machine health for critical rotating assets like turbines, compressors, pumps, and fans.

Detailed Product Parameters and Specifications

This module’s technical profile is defined by its input conditioning and measurement capabilities:

• Primary Function: Vibration Signal Conditioner / Single-Channel Monitor. It accepts raw sensor signals, provides excitation power (if required), conditions the signal, and extracts key vibration parameters.
• Input Types: Configurable for various vibration sensors:
  • Accelerometers: IEPE/ICP type (requires constant current excitation, e.g., 4 mA).
  • Velocity Sensors: Seismic velocity transducers.
  • Proximity Probes: Eddy-current probes for displacement measurement (typically requires an external proximitor).
• Measurement Parameters: Processes the input to provide key values such as:
  • Overall Vibration: RMS, Peak, or Peak-to-Peak values.
  • Spectral Data: May provide FFT (Fast Fourier Transform) spectra for frequency analysis.
• Dynamic Range & Frequency Response: Specifies the amplitude range (e.g., 0-25 mm/s) and frequency bandwidth (e.g., 2 Hz to 10 kHz) it can accurately measure.
• Signal Conditioning: Includes features like adjustable gain, high-pass and low-pass filtering, and integration (to convert acceleration to velocity or displacement).
• Output Signals: Provides analog outputs (e.g., 4-20 mA) proportional to vibration levels and buffered raw sensor signals for external analysis.
• Alarm Functionality: Features programmable alarm (Alert) and danger (Trip) setpoints with dedicated relay outputs for machinery protection.
• Communication: Integrates into the System 800xA via a compatible communication interface (e.g., connected to an S800 I/O card or directly via a fieldbus module), allowing data integration into the DCS/PLC.
• Power Supply: Typically operates on 24 V DC.

Key Advantages and Distinctive Features

The ABB DSCA190V 57310001-PK offers significant benefits for predictive maintenance and asset protection:

• High-Fidelity Signal Conditioning: Provides clean, accurate, and reliable vibration signals, which are the foundation for effective condition monitoring and diagnostics, enabling early detection of faults like unbalance, misalignment, and bearing defects.
• Seamless Integration with System 800xA: As a native component, it allows vibration data to be fully integrated into the operator’s control view, historian, and alarm management system, providing a unified operational and maintenance perspective.
• Dual Role of Monitoring & Protection: It not only provides data for predictive maintenance but also offers hardwired relay outputs for immediate machinery shutdown (permissive or trip) based on configurable setpoints, serving a critical safety function.
• Flexible Sensor Compatibility: The ability to interface with the most common industrial vibration sensor types makes it a versatile choice for monitoring diverse assets across a plant.
• Robust Industrial Design: Built for reliability in harsh plant environments with protection against electrical noise, vibration, and wide temperature ranges.
• Advanced Diagnostic Capabilities: By providing processed vibration parameters and raw signal access, it supports both basic monitoring and advanced diagnostic analysis, making the ABB DSCA190V 57310001-PK a key tool for any asset performance management program.

Application Scenarios and Case Studies

This module is deployed to protect and monitor high-value rotating equipment:

• Power Generation: Monitoring feedwater pumps, induced draft (ID) fans, gas/steam turbine bearings, and generator stators.
• Oil & Gas: Protecting centrifugal and reciprocating compressors on offshore platforms and in refineries, as well as pipeline pumps.
• Pulp & Paper: Monitoring critical pumps, refiners, and the large rotating rolls on paper machines.
• Mining & Minerals: Monitoring vibration on crushers, grinding mills, and large conveyor drive systems.
• Water & Wastewater: Protecting large raw water intake pumps and aeration blowers.

A typical application case is in a chemical plant’s critical cooling water pump. The ABB DSCA190V 57310001-PK is connected to an accelerometer on the pump’s bearing housing. It continuously provides a 4-20 mA signal proportional to vibration velocity to the plant DCS for trending. When vibration levels exceed a pre-set Alert value, it triggers an alarm for maintenance inspection. If levels reach the higher Danger setpoint, its relay directly initiates a pump trip via the safety system, preventing catastrophic bearing failure and prolonged downtime.

Comparison with Competing Products

Compared to similar single-channel vibration monitors from specialists like Bently Nevada (3500/42M), Emerson (CSI 6500 modules), or SKF (Microlog series), the ABB DSCA190V 57310001-PK has distinct positioning:

• 800xA Ecosystem Advantage: Its greatest strength is deep integration with ABB’s System 800xA DCS. For customers standardized on 800xA, it offers a more cohesive engineering, operation, and data management experience compared to standalone systems from vibration specialists.
• Balanced Functionality: It provides core protection and monitoring functions essential for most applications, potentially at a lower total integration cost than high-end, full-spectrum systems from pure-play condition monitoring vendors.
• ABB Brand Reliability: Benefits from ABB’s global support network and reputation for industrial automation reliability.

Competitors specializing in vibration may offer advantages in higher channel density per module, more advanced onboard diagnostics (e.g., automated fault detection), or a broader suite of analysis tools within their proprietary software. The choice often hinges on whether the priority is deep vibration analysis (favoring a specialist system) or DCS-integrated basic protection and monitoring (favoring the ABB solution).

Selection Guidelines and Important Considerations

Proper selection and implementation require careful planning:

1. Define the Monitoring Objective: Clearly determine if the primary need is for basic protection (trip/alarm), trend monitoring for maintenance, or advanced diagnostics. This guides sensor selection and module configuration.
2. Correct Sensor Selection and Matching: The performance of the entire loop depends on this. Match the sensor type (IEPE, velocity, etc.), sensitivity, and frequency range to the machine and fault types of concern. Ensure the DSCA190V is configured correctly for that sensor’s requirements (e.g., ICP power).
3. Setpoint Configuration: Alarm and trip setpoints must be carefully established based on machine history, manufacturer guidelines, or industry standards (ISO 10816). Incorrect setpoints lead to nuisance trips or missed failures.
4. System Integration Planning: Plan how the module will communicate data (4-20mA analog, or digital via fieldbus) to the control system and how alarms will be annunciated to operators.
5. Installation and Calibration: Sensor mounting is critical. Follow best practices for mounting accelerometers (clean, flat surface, proper torque). The system should be calibrated during commissioning, often by injecting a known signal from a calibrator.
6. Expertise and Documentation: Configuration and interpretation require some vibration analysis knowledge. Always use the official installation and operation manual for the ABB DSCA190V 57310001-PK, accessible via the product link, as the primary guide. For complex machinery, involve a vibration analyst to help establish baselines and setpoints. Regularly verify system operation through periodic checks.
