ABB DSAO120

Description

Product Description

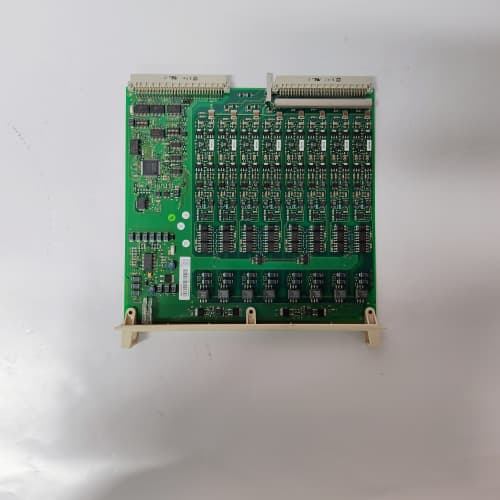

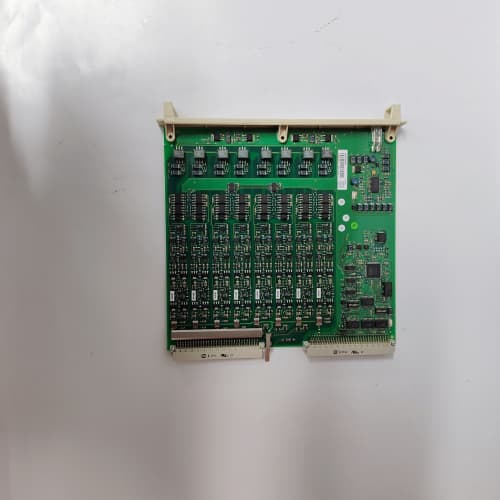

The ABB DSAO120 is a high-density Digital Signal Analog Output module designed for the ABB AC 800M series of high-performance programmable logic controllers (PLCs), which form the core of the System 800xA and Compact Product Suite automation platforms. This specialized module delivers 12 channels of configurable analog output control, enabling precise command of field actuators such as control valves, variable frequency drives (VFDs), and positioning systems. The ABB DSAO120 serves as a critical interface, converting digital setpoint values from the controller into highly accurate standard analog current (4-20 mA) signals. Engineered for reliability and precision in demanding process and factory automation applications, the ABB DSAO120 features advanced diagnostics, individual channel isolation, and a modular design that supports hot insertion and removal in live systems. Integrating the ABB DSAO120 into a control strategy provides a robust and scalable solution for complex analog control loops, making it a cornerstone module for applications requiring dependable analog command signals.

Product Parameters

• Product Type: Digital Signal Analog Output Module.
• I/O Type: 12-channel Analog Output (AO).
• Output Signal: Configurable per channel, typically 4-20 mA with HART protocol support, providing intelligent device communication and diagnostics.
• Resolution: High-resolution digital-to-analog conversion (typically 16-bit) for precise output control.
• Isolation: Channel-to-channel and channel-to-backplane isolation, ensuring signal integrity and system protection from ground loops and field-side faults.
• Communication: Interfaces with the AC 800M controller via the high-speed S800 I/O bus.
• Diagnostics: Comprehensive module and per-channel diagnostics, including wire break, short circuit, and overload detection, communicated directly to the controller.
• Mounting: Installs into a standard S800 I/O station (e.g., on a DIN-rail mounted base unit).
• Hot Swap: Supports module replacement during operation (hot swapping) without disturbing the process, when used in a system configured for this capability.

Advantages and Features

• High-Density Intelligent Outputs: Provides 12 configurable analog outputs in a single module slot, optimizing control cabinet space and reducing hardware costs per loop. The integrated HART support allows for advanced device management.
• Exceptional Accuracy and Stability: High resolution and advanced signal conditioning ensure precise and stable output signals, which is critical for accurate process control in applications like flow, pressure, and level regulation.
• Comprehensive Diagnostics and Safety: Advanced diagnostics enable predictive maintenance and rapid fault localization. The isolation design protects the controller and other channels from field-side electrical faults, enhancing overall system safety and availability.
• Seamless System Integration: As a native component of the ABB System 800xA and AC 800M ecosystem, the ABB DSAO120 is fully recognized, configured, and diagnosed within the Control Builder engineering software, ensuring guaranteed performance and simplified engineering.
• High Availability Design: The hot-swap capability minimizes downtime for maintenance or module replacement, supporting the high availability requirements of continuous processes.

Application Cases in Application Fields

• Chemical Processing: Precisely controlling the opening of multiple control valves to regulate the flow of reactants into a continuous stirred-tank reactor (CSTR).
• Oil & Gas Midstream: Managing the setpoints of variable frequency drives on pipeline booster pumps to maintain precise discharge pressure.
• Water Treatment: Adjusting the speed of chemical dosing pumps (e.g., for chlorine or pH adjustment) based on real-time analyzer feedback.
• Pharmaceutical Manufacturing: Controlling the pressure and flow rates within a clean-in-place (CIP) system to ensure validated cleaning cycles.

Comparisons with Competing Products

Competing products include analog output modules from other major PLC/DCS vendors, such as Siemens (SM 332 for S7-400), Emerson (DeltaV CHARM I/O), and Yokogawa (FIO for Centum VP). The ABB DSAO120 differentiates itself through its deep integration with the ABB 800xA architecture, offering a unified engineering and operational experience. Compared to standard PLC analog cards, the ABB DSAO120 typically offers higher channel density, built-in HART capability, and more robust diagnostics. Against other DCS-oriented I/O, its primary advantage is being part of the scalable and highly integrated S800 I/O family, known for reliability and hot-swap functionality. For users committed to or selecting the ABB AC 800M platform, the ABB DSAO120 is the optimal, system-guaranteed choice for analog output requirements.

Selection Suggestions and Precautions

1. System Compatibility Verification: Confirm that your controller is an ABB AC 800M CPU (e.g., PM802, PM803, PM851, PM861) and that the I/O station is a compatible S800 series base unit.
2. Load and Loop Compliance: Ensure the connected field device (e.g., valve positioner, VFD) has an input impedance within the module’s specified drive capability (typically a maximum loop resistance, e.g., 750 Ω). Exceeding this can cause signal inaccuracy.
3. HART Configuration: If utilizing the HART protocol for device configuration or diagnostics, ensure the control system software licenses and configuration are correctly set up to support HART pass-through or integration.
4. External Protection: While the module has diagnostic protection, each output circuit should be protected with an appropriately rated fuse in the field connection to safeguard against extreme fault conditions.
5. Module Configuration: The ABB DSAO120 must be correctly configured in the Control Builder M project, including setting the output type (4-20mA), fault state behavior (hold last value, go to predefined safe value), and diagnostic limits. Incorrect configuration can lead to unsafe process conditions.
