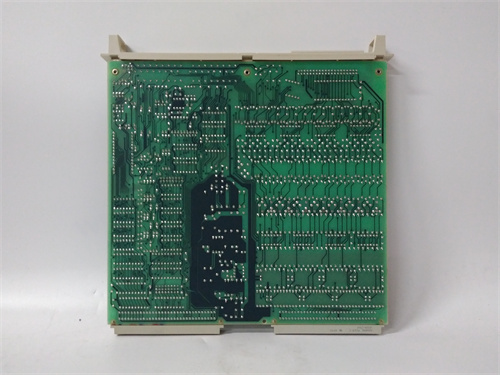

ABB DSAI146 3BSE007949R1

Description

Product Overview and Description

The ABB DSAI146 3BSE007949R1 is a high-reliability analog input module designed for use in ABB’s distributed control systems (DCS), particularly within the Advant Controller 400 series and SattLine automation platforms. This device, identified by the model DSAI146 and ordering code 3BSE007949R1, is a critical component for collecting analog signals from field devices such as pressure transmitters, temperature sensors, flow meters, and level transmitters. The ABB DSAI146 3BSE007949R1 converts these analog signals into digital values for processing by the control system, enabling precise monitoring and control of industrial processes.

The DSAI146 module is engineered for operation in harsh industrial environments and features high accuracy, galvanic isolation, and comprehensive diagnostic capabilities. It mounts in a standard Advant Controller I/O rack and interfaces directly with the system backplane. The use of the ABB DSAI146 3BSE007949R1 ensures accurate and reliable data acquisition from field instruments, which is fundamental for effective process control in industries such as pulp and paper, chemicals, power generation, and mining.

Technical Parameters

Based on the analysis of ABB Advant Controller documentation, the ABB DSAI146 3BSE007949R1 possesses the following key characteristics:

• Device Type: Analog Input Module for Advant Controller 400 series.
• Number of Channels: Typically 8 or 16 differential analog input channels.
• Input Signal Types:
  • 4-20 mA (with open circuit detection)
  • 0-20 mA
  • 0-10 V, ±10 V
  • Thermocouples (with cold junction compensation)
  • RTD (Pt100) with appropriate signal conditioning
• Resolution: High-resolution ADC (typically 12-bit or 14-bit) for accurate measurements.
• Accuracy: High accuracy across industrial temperature ranges.
• Galvanic Isolation: Channel-to-channel and channel-to-backplane isolation for protection against ground loops and electrical noise.
• Diagnostics: Built-in self-diagnostics and open circuit detection for 4-20 mA loops.
• Indication: Front-panel LED indicators for module status and channel activity.
• Power Supply: Powered via the Advant Controller backplane.
• Mounting: Installs into a dedicated slot in the Advant Controller I/O rack.
• Configuration: Configured using ABB’s programming tools (e.g., Advant Engineering Station).
• Part Numbers: ABB DSAI146 3BSE007949R1 is the complete identification, with 3BSE007949R1 being the primary ordering code.

Advantages and Key Features

The ABB DSAI146 3BSE007949R1 offers several key advantages for process automation:

• High Accuracy: The DSAI146 provides precise analog measurements, essential for tight process control and product quality in industries like chemicals and pharmaceuticals.
• Multiple Signal Support: The ability to handle various signal types (current, voltage, thermocouple, RTD) makes the ABB DSAI146 3BSE007949R1 versatile for different field instruments.
• Galvanic Isolation: Channel-to-channel isolation protects against ground loops and electrical noise, ensuring measurement integrity in electrically noisy industrial environments.
• Open Circuit Detection: For 4-20 mA inputs, the DSAI146 can detect broken wires, providing valuable diagnostic information to operators and maintainers.
• Proven Reliability: As part of the Advant Controller family, the ABB DSAI146 3BSE007949R1 has a long history of reliable operation in thousands of installations worldwide.

Application Cases in Key Industries

The ABB DSAI146 3BSE007949R1 is used in a wide variety of industrial applications:

• Pulp and Paper: The DSAI146 measures pressure and flow in pulp digesters, consistency transmitters in stock preparation, and temperature in paper machine drying sections.
• Chemical Processing: In chemical plants, the ABB DSAI146 3BSE007949R1 monitors reactor temperatures, distillation column pressures, and flow rates of raw materials.
• Power Generation: The module measures boiler drum levels, steam pressures, and fuel flow rates in thermal power plants.
• Mining and Minerals Processing: The DSAI146 monitors slurry densities, tank levels, and conveyor belt weights in mineral processing operations.
• Water and Wastewater Treatment: The ABB DSAI146 3BSE007949R1 reads flow, pressure, and level signals from instruments throughout treatment plants.

Comparison with Competitors

In the DCS analog input module market, ABB’s primary competitors are Siemens, Emerson, Yokogawa, and Honeywell.

• ABB DSAI146 3BSE007949R1 vs. Siemens Analog Input Modules: Siemens offers comparable analog input modules for its PCS 7 system. The DSAI146 is the native solution for ABB’s Advant systems, ensuring perfect compatibility and integration with ABB controllers.
• ABB DSAI146 3BSE007949R1 vs. Emerson: Emerson’s DeltaV and Ovation systems have their own analog input modules. The ABB DSAI146 3BSE007949R1 is specifically designed for the Advant platform, which has a significant installed base requiring ongoing support.
• ABB DSAI146 3BSE007949R1 vs. Yokogawa: Yokogawa’s CENTUM systems use their own I/O modules. The ABB DSAI146 3BSE007949R1 is a reliable, field-proven component for maintaining legacy Advant systems.

Selection Recommendations and Precautions

1. System Compatibility: The ABB DSAI146 3BSE007949R1 is designed for Advant Controller 400 series systems. Verify compatibility with your specific controller model, rack type, and system revision before ordering.
2. Signal Type Verification: Confirm that the input signal types (current, voltage, thermocouple, RTD) required for your application are supported by the DSAI146 and that any required external signal conditioning is in place.
3. Configuration Tools: Configuration of the ABB DSAI146 3BSE007949R1 requires ABB’s Advant Engineering Station software. Ensure you have access to the appropriate software and the necessary skills.
4. Wiring Practices: Follow standard industrial wiring practices when connecting field instruments to the DSAI146. Use shielded twisted-pair cable for analog signals and ensure proper grounding to minimize noise pickup.
5. ESD Precautions: The module contains sensitive electronic components. Follow strict Electrostatic Discharge (ESD) precautions when handling or installing the ABB DSAI146 3BSE007949R1.
