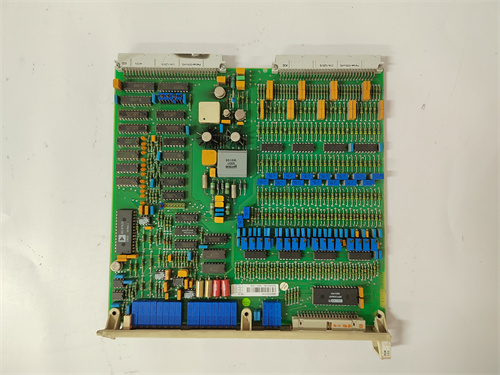

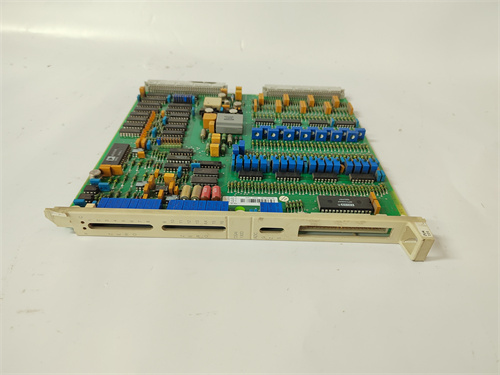

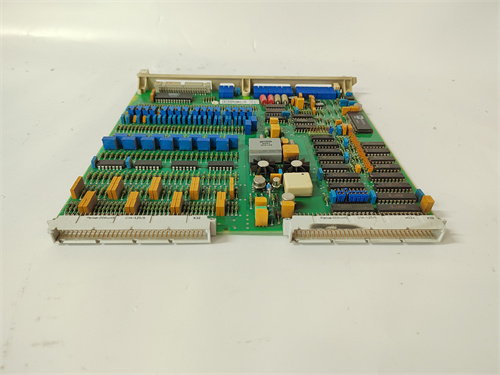

ABB DSAI130D 3BSE003127R1

Description

Product Description

The ABB DSAI130D 3BSE003127R1 is a high-density analog input module engineered for ABB’s Advant Controller 400 series and compatible S100 I/O systems, representing a cornerstone of ABB’s legacy distributed control infrastructure in process industries worldwide. This 16-channel analog input module provides isolated signal conditioning for standard industrial current and voltage signals, enabling seamless integration of field transmitters into Advant OCS and MOD 300 environments. The ABB DSAI130D 3BSE003127R1 accepts 4–20 mA, 0–20 mA, and 0–10 V DC input signals with software-configurable per-channel ranging, eliminating the need for hardware jumpers or resistor changes. Designed for continuous duty in refinery, chemical, and power generation applications, this module features transformer-isolated channel groups for exceptional common mode rejection and noise immunity. The ABB DSAI130D 3BSE003127R1 communicates with Advant controllers via the S100 I/O bus, supporting both single and redundant I/O configurations for critical process measurements.

Product Parameters

• Model: ABB DSAI130D 3BSE003127R1
• Module Type: Analog Input, Isolated, High Density
• Channel Count: 16, differential inputs
• Input Signal Ranges: 4–20 mA, 0–20 mA, 0–10 V DC (software configurable)
• Input Impedance: 250 Ω for current, > 1 MΩ for voltage
• Resolution: 12-bit A/D conversion
• Accuracy: ±0.2% of span at 25°C, ±0.5% over temperature range
• Update Rate: 20 ms for all channels (typical)
• Isolation: 500 V AC channel-to-channel (grouped, 4 channels per group), 1500 V AC channel-to-ground
• Common Mode Rejection: > 120 dB at 50/60 Hz
• Normal Mode Rejection: > 40 dB at 50/60 Hz
• Field Power: 24 V DC transmitter power available via backplane (optional)
• Indicators: Module status LED, communication LED, group fault LEDs
• Field Termination: 40-pin ELCO connector or 32-pin terminal block via transition cable
• Power Consumption: 4 W from S100 I/O bus
• Operating Temperature: 0°C to 55°C
• Certifications: CE, UL, CSA, ATEX Zone 2, FM Class I Div 2, Marine (DNV, ABS)

Advantages and Features

The ABB DSAI130D 3BSE003127R1 delivers robust performance in electrically harsh environments through its exceptional common mode rejection and grouped isolation architecture, effectively eliminating ground loop interference common in large distributed control installations. Unlike universal analog input modules requiring external signal conditioners for different signal types, the ABB DSAI130D 3BSE003127R1 accepts both current and voltage signals through software configuration, simplifying engineering and spare parts management. The module’s 16-channel density provides 2:1 space savings compared to earlier 8-channel Advant analog input modules, enabling I/O cabinet consolidation and reduced lifecycle costs. Built-in wire break detection continuously monitors 4–20 mA loops, automatically reporting open circuit conditions to the controller without additional external hardware. The ABB DSAI130D 3BSE003127R1 supports ABB’s redundant I/O architecture, where paired modules operate in hot-standby mode with automatic switchover upon primary module fault detection. Non-volatile configuration storage eliminates battery dependency, ensuring immediate operation following power restoration. The module’s field-proven design has demonstrated mean time between failure exceeding 500,000 hours in continuous process applications.

Application Cases in Application Fields

• Refinery Crude Distillation: Deployed on atmospheric and vacuum distillation units, the ABB DSAI130D 3BSE003127R1 monitors 16 pressure and differential pressure transmitters per module for column reflux ratio control, with redundant module configuration ensuring uninterrupted measurement during maintenance.
• Ethylene Cracker Furnaces: Installed in pyrolysis furnace applications, this module processes 4–20 mA signals from thermocouple transmitters on radiant coil outlets, with the ABB DSAI130D 3BSE003127R1 providing critical inputs for tube metal temperature monitoring and coking prediction.
• Chemical Batch Processing: Utilized in specialty chemical reactor trains, the ABB DSAI130D 3BSE003127R1 interfaces with Coriolis mass flow transmitters for precise ingredient addition, achieving ±0.1% batch consistency through high-accuracy analog measurement.
• Power Plant Boiler Control: Applied in coal-fired utility boilers, this module monitors furnace pressure transmitters for combustion control, with the ABB DSAI130D 3BSE003127R1‘s 20 ms update rate supporting fast-acting implosion protection systems.
• Pharmaceutical Fermentation: Implemented in sterile fermentation facilities, the ABB DSAI130D 3BSE003127R1 provides dissolved oxygen and pH transmitter monitoring, its grouped isolation preventing ground current paths through conductive fermentation media.

Comparison with Competing Products

The ABB DSAI130D 3BSE003127R1 represents a mature, cost-effective solution specifically optimized for ABB’s installed base of Advant and MOD 300 systems. While Honeywell’s 8C-PAIO1 offers superior resolution and HART communication, it requires significantly higher capital investment and cannot directly interface with legacy ABB controllers without gateway devices. Siemens SM 331 provides comparable specifications but at half the channel density, requiring double the cabinet space for equivalent I/O counts. The ABB DSAI130D 3BSE003127R1 remains the optimal choice for facilities committed to Advant infrastructure, delivering proven reliability at acquisition costs typically 40% lower than contemporary multi-vendor alternatives. Its 12-bit resolution, while modest by current standards, remains adequate for over 95% of continuous process measurements including pressure, flow, and level applications.

Selection Suggestions and Precautions

• System Compatibility Verification: Confirm that your Advant Controller 400 series or MOD 300 system version supports the ABB DSAI130D 3BSE003127R1; earlier systems may require I/O bus firmware upgrades or gateway interface modules.
• Signal Type Configuration: The ABB DSAI130D 3BSE003127R1 requires software configuration for current or voltage inputs; verify that no external shunt resistors are installed across current inputs to prevent accuracy degradation.
• Field Termination Selection: The ABB DSAI130D 3BSE003127R1 uses 40-pin ELCO connectors; order appropriate transition cables (ABB NTAI05 or NTAI06) or termination blocks (NTAI02) for field wiring interface.
• Channel Group Loading: The ABB DSAI130D 3BSE003127R1 organizes 16 channels into four isolated groups of four channels; maintain physical separation of field wiring between groups to preserve isolation integrity.
• Transmitter Power Considerations: If utilizing 24 V DC transmitter power from the backplane, verify that total current draw across all channels does not exceed 500 mA; external power supplies are recommended for large transmitter populations.
• Grounding Requirements: The ABB DSAI130D 3BSE003127R1 requires single-point grounding of shield wires at the I/O cabinet entry; do not connect shield wires to module termination points to prevent ground loop formation.
• Redundancy Configuration: For critical process measurements, configure redundant ABB DSAI130D 3BSE003127R1 modules in adjacent I/O slots with field wiring split to both modules; verify that controller logic accommodates two separate analog input points for voting or selection.
• Spare Parts Strategy: Given the ABB DSAI130D 3BSE003127R1‘s extensive installed base and ABB’s product lifecycle status for Advant platforms, maintain site-specific configured spare modules representing 5-10% of installed count; typical lead times for legacy modules extend to 8-12 weeks.
• Obsolescence Management: The ABB DSAI130D 3BSE003127R1 remains available but ABB has designated Advant technology as “Classic” status; facilities planning 10+ year operating horizons should evaluate System 800xA migration paths while maintaining adequate ABB DSAI130D 3BSE003127R1 spares.
• Environmental Installation: Install the ABB DSAI130D 3BSE003127R1 in clean, climate-controlled environments; module accuracy specifications assume ambient temperature variation less than 10°C/hour.
• Calibration Verification: While the ABB DSAI130D 3BSE003127R1 does not require routine calibration, critical custody transfer applications should perform annual accuracy verification using certified current/voltage sources with NIST-traceable certification.
• Connector Maintenance: ELCO connectors on the ABB DSAI130D 3BSE003127R1 are rated for 50 insertion cycles; mark installation date and track removal frequency, replacing connectors when approaching cycle limits to prevent intermittent contact failures.
