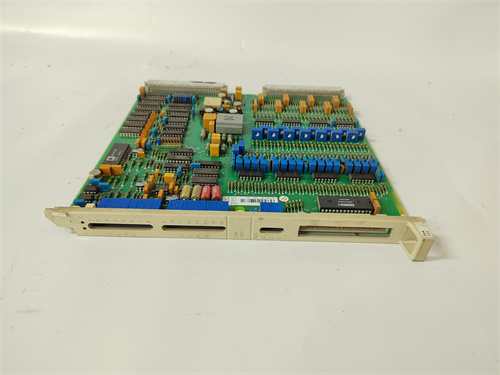

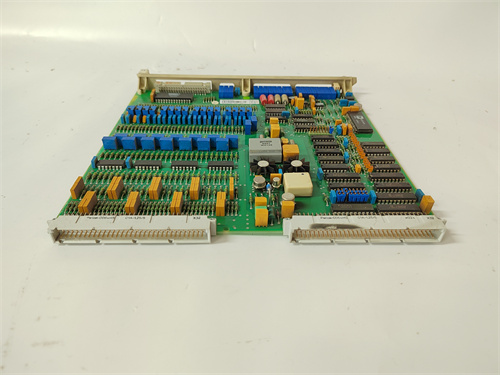

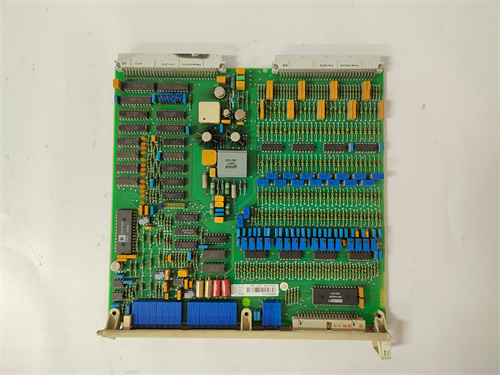

ABB DSAI130D 3BSE003127R1

Description

Product Description

The ABB DSAI130D 3BSE003127R1 is a high-performance, high-density Digital Signal Analog Input module from the ABB S800 I/O family, specifically designed for the AC 800M controller platform within the System 800xA and Compact Product Suite. This module is engineered for precision measurement, providing 16 channels of configurable analog input for acquiring signals from a wide array of field instruments such as pressure, temperature, flow, and level transmitters.  which are essential for regulatory control and monitoring. Featuring individual channel isolation and advanced diagnostics, the ABB DSAI130D 3BSE003127R1 is a cornerstone module for building reliable and scalable process data acquisition systems. Its design supports demanding industrial environments and is a critical component for ensuring data integrity in complex automation architectures.

Product Parameters

• Product Type: Digital Signal Analog Input Module for S800 I/O.
• I/O Type: 16-channel Analog Input (AI).
• Signal Ranges: Configurable per channel for standard industrial signals: 4-20 mA, 0-20 mA, 0-10 V, +/-10 V, and more.
• Resolution: High resolution, typically 16-bit, for precise measurement.
• Isolation: Channel-to-channel isolation and isolation from the system backplane to prevent ground loops and ensure signal integrity.
• Communication: Interfaces with the AC 800M controller via the high-speed, serial S800 I/O bus.
• Diagnostics: Comprehensive module diagnostics (watchdog, memory) and channel-level warnings (e.g., underrange, overrange, wire break detection for current inputs).
• Update Time: Fast, deterministic update time for all channels.
• Mounting: Plugs into a standard S800 I/O station base unit (e.g., TU833, TU834) on a DIN rail.
• Hot Swap: Supports module replacement during operation (hot swapping) in systems configured for this capability.
• Order Number: 3BSE003127R1 is the specific article code.

Advantages and Features

• High Channel Density: Consolidates 16 analog measurement points into a single module slot, optimizing control cabinet space and reducing hardware costs per point.
• Superior Accuracy and Stability: Advanced analog-to-digital conversion and signal conditioning ensure precise, drift-free measurements critical for quality control and advanced regulatory strategies.
• Excellent Noise Immunity and Isolation: The isolated design effectively rejects electromagnetic interference (EMI) and prevents ground loops, guaranteeing reliable signal acquisition even in electrically noisy environments.
• Advanced Diagnostics: Provides detailed diagnostics at both the module and individual channel level, enabling predictive maintenance, rapid fault localization, and reduced downtime.
• Seamless System Integration: As a native S800 module, the ABB DSAI130D 3BSE003127R1 is fully integrated into the ABB System 800xA or Compact Control Builder engineering environment, simplifying configuration, scaling, and maintenance.

Application Cases in Application Fields

• Chemical Processing Plant: Measuring dozens of reactor temperatures, pressures, and flow rates from 4-20 mA transmitters for precise batch and continuous process control.
• Power Plant Boiler Control: Acquiring analog signals from drum level, steam pressure, fuel flow, and flue gas oxygen analyzers for combustion optimization and safety.
• Oil & Gas Production Separator: Monitoring multiple pressure, temperature, and level transmitters on a production separator to control the oil, gas, and water separation process.
• Pharmaceutical Water-for-Injection (WFI) System: Measuring conductivity, temperature, and flow at critical points to ensure water quality meets pharmacopeia standards.

Comparisons with Competing Products

Competing products include high-density analog input modules from other automation vendors, such as the Siemens SM 331 (for S7-400), the Emerson DeltaV CHARM AI card, or the Rockwell Allen-Bradley 1756-IF16. The ABB DSAI130D 3BSE003127R1 differentiates itself through its optimal performance within the ABB ecosystem, particularly its deterministic performance on the S800 I/O bus and deep integration with the 800xA DCS. Compared to many PLC-oriented cards, it typically offers higher channel density, superior channel-to-channel isolation, and more robust diagnostics. Its key advantage is being a proven, high-performance component within the scalable and reliable S800 I/O family, designed for the high-availability requirements of process control. For users of ABB AC 800M controllers, the ABB DSAI130D 3BSE003127R1 is the system-validated choice for demanding analog input applications.

Selection Suggestions and Precautions

1. System Compatibility: Verify that your controller is an ABB AC 800M series CPU and that you have a compatible S800 I/O base unit with an available slot. Ensure the base unit firmware supports this module type.
2. Signal Configuration and Scaling: Precisely configure the input type (e.g., 4-20 mA) and engineering scaling (e.g., 4 mA = 0 bar, 20 mA = 10 bar) for each channel in the Control Builder M software. Incorrect configuration leads to erroneous process values.
3. Field Wiring Practices: Use proper shielded, twisted-pair cables for analog signals. Ensure the shield is grounded correctly at one end (usually the system end) to maximize the module’s inherent noise immunity.
4. Power Budget and Heat: When adding this or any module to an I/O station, verify the station’s power supply has sufficient capacity. High-density modules can generate heat; ensure adequate cabinet ventilation and adhere to specified ambient temperature limits.
5. Diagnostic Utilization: Actively use the module’s diagnostic data in the control application. Configure alarms for channel faults (like wire break) to enable immediate operator awareness and prompt maintenance action, preventing prolonged operation with bad data.
