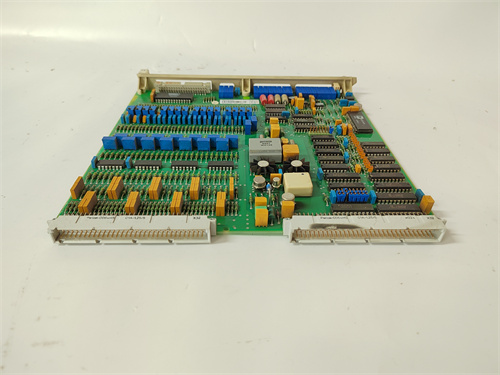

ABB DSAI130D

Description

Product Description

The ABB DSAI130D is a high-density, digital input module from the ABB S800 I/O family, designed for use with the AC 800M controller and other compatible ABB systems within the System 800xA distributed control system (DCS). This module serves as a critical interface for connecting a large number of field-level digital sensors—such as limit switches, pushbuttons, proximity sensors, and contact statuses—to the control system. Its primary function is to convert the state (ON/OFF) of these field devices into isolated, logic-level signals that the controller can read and process. By providing 32 isolated input channels in a single module slot, the ABB DSAI130D optimizes cabinet space and reduces the cost per point in applications requiring extensive monitoring of discrete events. The reliable operation of machine sequencing, safety interlocks, and status monitoring often depends on the accurate and noise-immune signal conversion provided by this module. Proper configuration and wiring of the ABB DSAI130D are fundamental to building a responsive and reliable automation control system for process and hybrid industries.

Product Parameters

• I/O Family: ABB S800 I/O.
• Module Type: 32-point Isolated Digital Input Module.
• Number of Channels: 32 isolated input channels.
• Input Type: Sourcing (PNP) or Sinking (NPN) – specific type defined by the model variant (“D” often indicates a specific voltage type, e.g., 24V DC).
• Input Voltage: Rated for 24V DC nominal.
• Operating Voltage Range: Typically 19-30V DC.
• Input Current: Typical current consumption per point when active.
• Isolation: Channel-to-channel and channel-to-system isolation (typically 500V AC) for safety and noise immunity.
• Response Time: Fast ON/OFF response time suitable for high-speed counting or sequencing.
• Status Indicators: Per-channel LED indicators (usually in groups) to show the real-time status (ON/OFF) of each input.
• Diagnostics: Module-level diagnostics with communication and error LEDs.
• Communication: Interfaces with the controller via the S800 station bus (e.g., Profibus DP, Foundation Fieldbus, or ABB’s native bus).
• Mounting: Installs into a slot on an S800 I/O station baseplate.

Advantages and Features

• High Channel Density: Provides 32 isolated digital inputs in a single module slot, maximizing I/O count per rack and minimizing the overall footprint and cost of the control system.
• Clear Diagnostic Visibility: Grouped LED indicators allow for quick visual inspection of the status of all 32 input points, significantly speeding up troubleshooting and commissioning.
• Robust Isolation: Electrical isolation between channels prevents noise and fault propagation from one field device to another or back to the sensitive control system, enhancing system reliability.
• Compatible with Standard Sensors: Designed to work seamlessly with standard 2-wire and 3-wire DC sensors (PNP or NPN) and dry contacts commonly used in industrial environments.
• Hot-Swappable (in supported configurations): Designed to be hot-swappable in redundant configurations, allowing for replacement without process shutdown, thereby increasing system availability.

Application Cases in Application Fields

• Chemical & Petrochemical Plants: Monitors the status of hundreds of valves (open/close limit switches), pump run feedback, and local emergency stop buttons across a large process unit.
• Power Plant Auxiliary Systems: Reads inputs from motor-driven pump statuses, tank level switches, and filter condition indicators in water treatment or fuel handling systems.
• Water and Wastewater Treatment: Interfaces with level switches in clarifiers, flow switch statuses, and alarm contacts from remote pump stations.
• Manufacturing Packaging Lines: Provides input from numerous photoelectric sensors, product presence detectors, and machine guarding interlock switches on high-speed lines.

Comparisons with Competing Products

• Vs. Siemens ET 200SP Digital Input Module (DI 32x24VDC): Siemens offers a comparable 32-point 24V DC input module for its distributed I/O system. Both serve the same core function. The choice is driven by the selected control ecosystem (System 800xA vs. TIA Portal/PCS 7), form factor, and engineering software preference.
• Vs. Emerson DeltaV Electronic Marshalling (CHARMs DI): Emerson’s CHARM system offers high density with flexible marshalling. The ABB DSAI130D is part of the traditional, high-density S800 rack system. The CHARM system emphasizes reduced wiring, while the S800 module is part of a denser, conventional architecture.
• Vs. Lower-Density or Non-Isolated Modules: Using multiple 8 or 16-point modules to achieve 32 inputs consumes more slots and backplane space. The ABB DSAI130D provides a more cost-effective and space-efficient solution with the added benefit of per-channel isolation that many lower-density modules lack.

Selection Suggestions and Precautions

1. Verify Sourcing vs. Sinking Compatibility: Determine if the ABB DSAI130D variant is sourcing or sinking and ensure it matches the field devices. A sourcing module requires sinking field contacts, and vice-versa. Mismatching will prevent proper operation.
2. Calculate Backplane Load: While the module draws field power externally, it consumes +5V power from the S800 baseplate for its electronics. Ensure the baseplate’s power budget is not exceeded when populating it with multiple high-density modules.
3. Proper Wiring and Fusing: Use appropriately sized wire and adhere to torque specifications on the terminal block. It is good practice to use an external fuse or a fused terminal block for groups of inputs to protect the module’s internal circuits.
4. Configuration in Engineering Software: The module must be correctly declared in the System 800xA hardware configuration (Control Builder). The 32 points will occupy a contiguous block of %I (input) addresses that must be mapped correctly in the application logic.
5. Consider Diagnostic Requirements: For critical inputs, utilize the module’s diagnostic capabilities within the control logic. Plan how to handle diagnostics like communication loss to the module itself, which can be configured to set all inputs to a safe state (0 or 1).
