ABB DSAI130D

Product Overview and Introduction

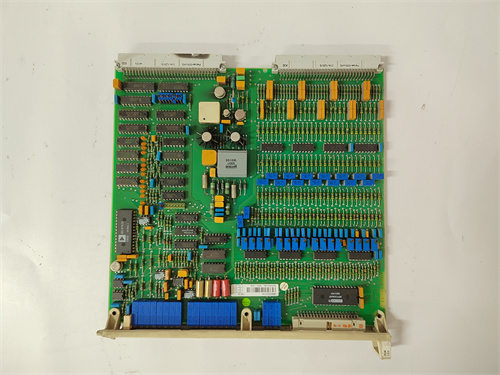

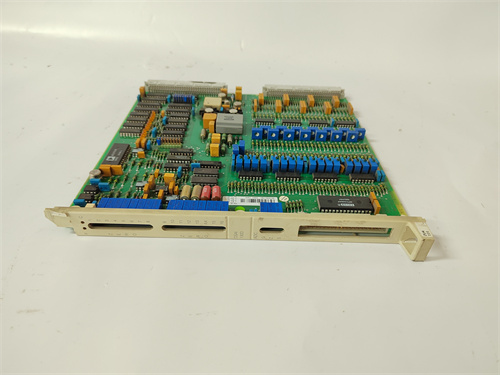

The ABB DSAI130D is a high-density, 16-channel analog input module belonging to the ABB S800 I/O family, a core component of the ABB Ability™ System 800xA and Compact Product Suite (AC 800M) distributed control system (DCS). This module is engineered to reliably interface a wide array of analog field sensors to the control system, converting standard current and voltage signals into precise digital data for monitoring and control. The ABB DSAI130D is a workhorse for process automation, providing critical measurement data from points like pressure transmitters, temperature transmitters, and flow meters. Its robust design and integration with the ABB ecosystem make it a staple in industries such as oil & gas, chemical, power, and pulp & paper.

Detailed Product Parameters and Specifications

The technical performance of the DSAI130D is defined by the following key specifications:

• Channel Configuration: 16 single-ended analog input channels, offering high point density in a single module slot.
• Input Signal Types: Dedicated to standard process signals:
  • Current Input: 4-20 mA (with a 125-ohm internal sampling resistor).
  • Voltage Input: 0-10 V DC.
• Resolution: High-resolution analog-to-digital conversion, typically 15 bits plus sign, ensuring accurate representation of the process variable.
• Update Rate: Features a configurable conversion time per channel, balancing speed and noise rejection, suitable for standard process control loops.
• Accuracy: High typical accuracy (e.g., ±0.1% of range) under specified conditions, which is essential for reliable control.
• Input Impedance: High input impedance for voltage inputs to minimize signal loading from the field device.
• Isolation: Channels are group-isolated (e.g., in banks of 8) from the internal logic and fieldbus, providing protection against ground loops and noise.
• Fieldbus Connection: Interfaces with the controller via the S800 I/O’s internal fieldbus, which connects to the ABB MasterBus 300 network.
• Diagnostics: Includes comprehensive channel-level diagnostics for open wire, under-range, and over-range conditions.
• Power Consumption: Draws power from the S800 baseplate.
• Environmental: Designed for industrial environments with standard operating temperature ranges.

Key Advantages and Distinctive Features

The ABB DSAI130D module offers several distinct benefits for industrial automation:

• High Density and Cost Efficiency: Sixteen channels in a single module optimize control cabinet space and reduce cost per I/O point, simplifying system design and spare parts management.
• Proven Reliability and Longevity: As a core component of the widely deployed S800 I/O system, it has a long track record of reliable operation in demanding continuous processes, minimizing unplanned downtime.
• Dedicated Signal Conditioning: The module provides built-in, optimized conditioning for the most common industrial analog signals (4-20mA and 0-10V), ensuring stable and accurate measurements without external converters.
• Seamless System Integration: Configuration, scaling, and diagnostics are fully integrated within the ABB Control Builder M or 800xA engineering environment, allowing for efficient commissioning and maintenance.
• Robust Industrial Design: Built to withstand industrial environments with protection against electromagnetic interference (EMI) and vibration. Its modular design allows for easy replacement.
• Comprehensive Diagnostics: Advanced channel-by-channel diagnostic capabilities enable predictive maintenance, alerting operators to sensor failures (open circuit) or signal abnormalities before they cause a process shutdown. This makes the ABB DSAI130D a dependable foundation for any control loop.

Application Scenarios and Case Studies

This analog input module is ubiquitous in process measurement and control:

• Chemical Processing: Connecting multiple pressure transmitters (4-20mA) on reactors, level transmitters on storage tanks, and analyzer outputs (0-10V).
• Oil & Gas Production: Monitoring wellhead pressures, pipeline pressures, and separator levels across a production platform or onshore field.
• Power Generation: Measuring feedwater flow, fuel gas pressure, and bearing temperatures (via transmitters) in a combined cycle power plant.
• Water & Wastewater Treatment: Acquiring signals from flow meters, dissolved oxygen sensors, and chemical dosing pump speed controllers.
• Pharmaceutical Manufacturing: Monitoring critical process parameters (CPPs) like vessel pressure and temperature in batch operations.

A common application case is in a large refinery’s distillation unit, where dozens of ABB DSAI130D modules are installed in remote I/O cabinets. They reliably gather data from hundreds of temperature and pressure points on the column and associated heat exchangers, providing the AC 800M controller with the data needed for advanced process optimization and safe operation.

Comparison with Competing Products

Compared to similar high-density analog input modules from competitors like Emerson (DeltaV CHARMs AI), Siemens (SIMATIC ET 200SP AI), or Yokogawa (FA-M3 AI modules), the ABB DSAI130D is a strong competitor:

• Ecosystem Optimization: It delivers guaranteed performance, ease of configuration, and long-term support within the ABB 800xA/AC 800M ecosystem, which is a decisive factor for ABD DCS customers.
• Proven Legacy and Stability: For brownfield sites with existing S800 I/O, the DSAI130D represents a reliable, known quantity with extensive field history.
• Density and Simplicity: Its 16-channel count for standard signals remains highly competitive, offering a straightforward solution for high-volume analog points.

Competitors’ modern modules may offer advantages such as universal channels (accepting voltage, current, RTD, TC on any channel), higher resolution, faster sampling rates, or native PROFINET/EtherNet IP connectivity. The choice often hinges on the installed base DCS platform and the specific need for universal versus dedicated signal type modules.

Selection Guidelines and Important Considerations

Selecting and applying the ABB DSAI130D requires careful attention to application details:

1. Confirm System Compatibility: This module is designed for the ABB S800 I/O system. Verify compatibility with your specific S800 baseplate (e.g., S800L) and that your AC 800M controller or CI871 communication interface supports the required I/O profile.
2. Signal Type Matching: The DSAI130D is dedicated to 4-20mA and 0-10V inputs. Ensure your field transmitters match these output types. It cannot directly accept thermocouples or RTDs.
3. Wiring and Grounding: Adhere to best practices for analog signal wiring. Use shielded, twisted-pair cables and ensure proper grounding at a single point to maximize noise immunity, especially given the group isolation.
4. Configuration and Scaling: Plan the engineering data (scaling from raw counts to engineering units, alarm limits) for each channel using Control Builder M. Utilize the module’s diagnostic features for open wire detection.
5. Spare Parts Strategy: For critical processes, maintain a spare ABB DSAI130D module on site. When sourcing, use the exact model number and consult the official datasheet available via the DSAI130D product link.
6. Installation and Maintenance: Ensure the module is properly seated in its baseplate. Follow electrostatic discharge (ESD) precautions. During operation, use the system diagnostics to monitor channel health. Understand the procedure for safe module replacement (often possible under power with proper precautions in redundant systems).
