ABB DO814 | I/O Module, OEM Stock

Description

Product Introduction

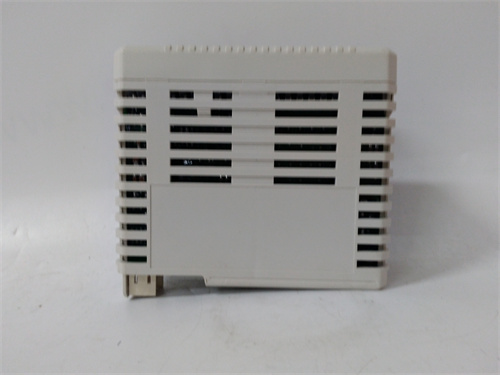

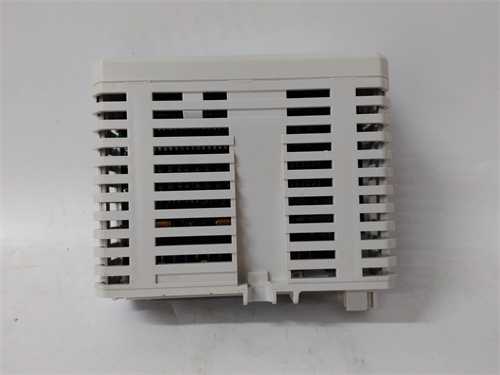

The ABB DO814 is an 8-channel digital output module from the S800 I/O family, designed for use with ABB AC800M, AC500, and other control systems. This module provides high-side switching for 24 V DC loads such as solenoid valves, contactors, indicator lights, and small motors. The DO814 mounts on an S800 I/O termination unit (TU) and communicates with the controller via the Modulebus, supporting both simplex and redundant configurations.

The S800 I/O platform is ABB’s standard distributed I/O solution for process and discrete automation. The DO814 is the standard digital output module for applications requiring 0.5 A per channel with individual channel diagnostics. For system integrators, this module provides reliable switching with short-circuit protection, over-temperature protection, and open-load detection, ensuring robust operation in industrial environments.

Key Technical Specifications

Key Selling Points & Differentiators

• Short-Circuit Protection: Each output channel includes electronic short-circuit protection. In the event of a short, the channel limits current and reports a fault to the controller.
• Open-Load Detection: The DO814 detects open-load conditions (e.g., broken wire, disconnected load) and reports the fault, simplifying troubleshooting.
• Over-Temperature Protection: Thermal protection shuts down affected channels if the module exceeds safe operating temperature, preventing damage.
• Redundant Modulebus Support: When installed on a redundant termination unit (TU830 or TU840), the DO814 supports dual Modulebus communication paths for high-availability applications.
• Hot-Swap Capability: Replace a failed module without powering down the I/O station. The controller continues operating, and outputs default to configured safe states during the swap.

Frequently Asked Questions (FAQ)

Q: What is the difference between the DO814 and the DO810?
The DO810 is an 8-channel digital output module with 0.5 A per channel but without individual channel diagnostics. The DO814 adds:

• Short-circuit protection per channel
• Open-load detection per channel
• Over-temperature protection

For applications requiring diagnostic feedback, the DO814 is the preferred choice. For basic switching without diagnostics, the DO810 is a lower-cost alternative.

Q: Which termination unit is compatible with the DO814?
The DO814 works with any S800 I/O termination unit that supports digital output modules. Common options include:

• TU810: Standard, non-redundant
• TU830: Redundant Modulebus with external 24 V power
• TU840: Redundant Modulebus with internal 24 V power distribution

Verify your existing TU part number before ordering to ensure mechanical compatibility.

Q: What is the maximum load per channel?
The DO814 provides 0.5 A continuous per channel. For inductive loads (solenoids, relays), we recommend using a flyback diode across the load to suppress voltage spikes when the output turns off. For loads exceeding 0.5 A, use an interposing relay.

Q: Can I use the DO814 with AC loads?
No. The DO814 is designed for 24 V DC loads only. For AC output applications, use a relay output module such as the DO820 or an external interposing relay.

Q: Does the DO814 support redundancy?
Yes, when installed on a redundant termination unit (TU830 or TU840), the DO814 supports redundant Modulebus communication. However, the outputs themselves are not redundant. For output redundancy (two modules controlling the same load), additional external circuitry is required.

Q: What happens to outputs during a communication failure?
The outputs default to a configured safe state. This is set in the controller configuration and can be:

• Outputs turned off (default)
• Outputs hold last value
• Outputs set to a predefined pattern

The safe state is applied when the module loses communication with the controller.

Q: What testing do you perform before shipping?
For new factory-sealed units, we do not break the seal to maintain OEM warranty eligibility. Our QC process includes visual inspection of packaging integrity, verification of the DO814 part number, and anti-counterfeit checks. For units where testing is requested, we perform a full functional test on a live S800 I/O system, verifying all 8 output channels, short-circuit protection, open-load detection, and Modulebus communication. A test report is available upon request.
