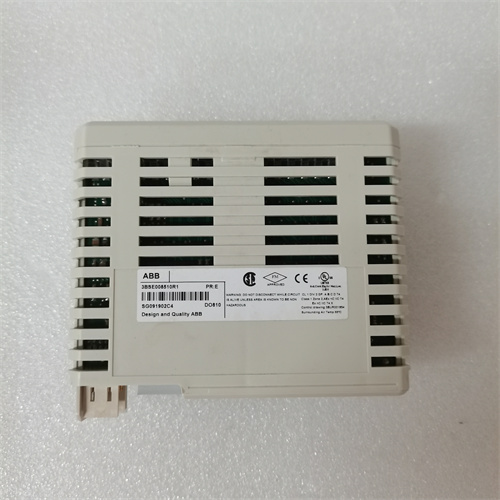

ABB DO801 Digital Output Module

Product Description

The ABB DO801 is a high-density, 16-channel digital output module from ABB’s versatile S800 I/O series, a cornerstone of the ABB IndustrialIT/800xA and AC 800M control systems. This module functions as a critical actuator interface, converting digital commands from the controller into physical on/off power signals to control field devices such as solenoid valves, motor contactors, indicator lamps, and alarms. Engineered for reliability and precise timing in demanding process and discrete manufacturing environments, the ABB DO801 ensures that control logic is accurately translated into physical actions. Its robust construction provides excellent noise immunity and protection against electrical transients. For comprehensive technical data, wiring diagrams, and configuration manuals, please visit the official product resource: ABB DO801. Integrating the DO801 into an S800 I/O station expands the system’s capability to directly drive a significant number of actuators from a single module slot, optimizing cabinet space and system cost. The dependable performance of this output module is fundamental for executing safety interlocks, sequential control, and process automation commands without failure.

Product Parameters

• Product Model: ABB DO801
• Series: ABB S800 I/O.
• Module Type: Digital Output (DO).
• Number of Channels: 16 independent output channels.
• Output Type: Sourcing or Sinking transistor outputs, typically for 24V DC loads.
• Output Current Rating: Rated for a specific current per channel (e.g., 0.5 A) and a maximum total current per group or module.
• Switching Frequency: Capable of high switching frequencies, suitable for pulse-width modulation (PWM) control of devices like proportional valves.
• Output Status Indication: Individual LED for each channel to provide clear visual confirmation of the output state (ON/OFF).
• Protections: Includes protection against short-circuit, overload, and overtemperature. Many versions feature electronic short-circuit protection that allows the channel to reset automatically once the fault is cleared.
• Isolation: Channel-to-channel and/or group isolation between the internal logic and the field power side.
• Communication: Connects to the controller via the high-speed internal S800 I/O bus, which interfaces through a Communication Interface (CI) module.

Advantages and Features

• High Channel Density: Sixteen outputs in a single module provide excellent space efficiency, reducing the number of modules and baseplates required for applications with many actuators.
• High Reliability & Long Life: Solid-state transistor outputs offer a much longer mechanical lifespan than relay contacts, especially in high-cycle switching applications, ensuring maintenance-free operation.
• Fast Switching Speed: Enables control of high-speed devices and allows for PWM functionality, extending the module’s use beyond simple on/off control to basic analog-like modulation.
• Advanced Diagnostics: Per-channel LED indicators allow for immediate local troubleshooting. The module also provides diagnostic feedback to the control system for remote monitoring of output health and fault conditions.
• Seamless System Integration: As a native S800 module, the DO801 is fully supported by ABB’s engineering tools (e.g., Control Builder M), allowing for easy configuration, parameterization, and integration into the overall control strategy.

Application Cases in Various Fields

• Water Treatment Plant: Controls the actuation of numerous motorized valves for filter backwashing sequences and commands pump run/stop signals across different treatment stages.
• Packaging Machinery: Drives solenoids for pneumatic cylinders controlling product gates, pushers, and fill nozzles on a high-speed filling and capping line.
• Automotive Assembly: Activates weld gun clamps, adhesive applicators, and tooling positioners on a robotic body-in-white assembly station based on signals from the main controller.
• Material Handling System: Commands motor starters for conveyor sections, activates divertor arm solenoids, and controls sortation doors in a warehouse distribution center.

Comparison with Competing Products

The ABB DO801 competes with high-density digital output modules from other major DCS/PLC providers like Siemens (ET 200S) and Emerson (DeltaV CHARMs). Its primary advantage is its optimized performance and engineering efficiency within the ABB S800 and AC 800M ecosystem. Compared to relay output modules, the DO801 offers vastly superior switching speed and longevity for DC loads, though it cannot switch AC voltages directly. Against lower-cost or generic digital output cards, it provides higher channel density, robust built-in diagnostics, electronic short-circuit protection, and the reliability demanded in continuous process industries.

Selection Suggestions and Precautions

1. Load Matching (Critical): Absolutely ensure the load characteristics match the module specifications. Confirm:
   • Voltage: The load operates on 24V DC.
   • Current: The load’s inrush and steady-state current per channel is within the rated output current. The total current for all simultaneously active channels must not exceed the module’s total current limit.
2. Inductive Load Protection: When driving inductive loads (solenoids, relays, contactor coils), you must use a protection device such as a flyback diode across the DC load or a metal-oxide varistor (MOV) to suppress voltage spikes that can destroy the transistor outputs.
3. External Fusing: While the module may have electronic protection, it is a best practice to install an external fuse on each output circuit or on common power rails for additional protection against wiring shorts.
4. Sourcing vs. Sinking Configuration: Verify the specific wiring diagram for your DO801 module variant (sourcing or sinking) and wire your field devices and power supply accordingly to create a complete circuit. Incorrect wiring will prevent operation.
