ABB DO630

Description

Product Description

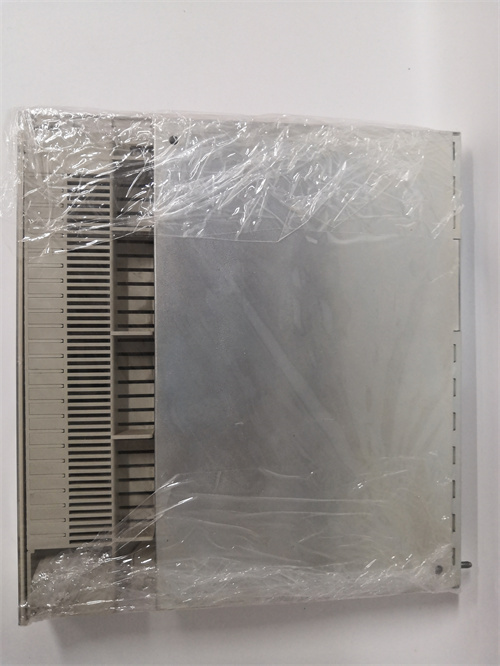

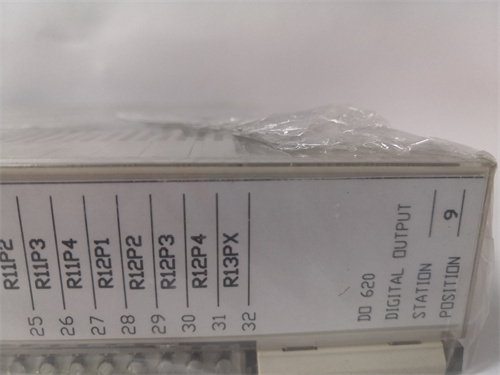

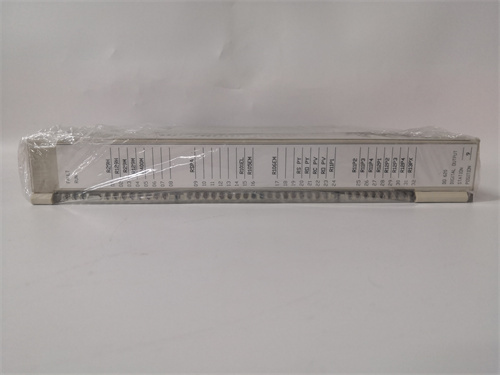

The ABB DO630 is a digital output module for the ABB AC 800M High Integrity controller family, designed for demanding safety applications within the System 800xA environment. This module provides a critical and certified interface for sending command signals to field actuators in Safety Instrumented Systems (SIS), such as solenoid valves, motor starters, and alarm annunciators. Engineered with a focus on fail-safe behavior and high diagnostic coverage, the ABB DO630 ensures outputs can be driven to a predefined safe state upon detection of an internal fault or upon command from the safety logic. It is a key component for achieving Safety Integrity Levels (SIL) 2 and 3 in critical processes. For engineers designing or maintaining SIS loops, the integrity and reliability of the ABB DO630 are non-negotiable. Technical documentation and safety manuals for this module are available at [Insert Link Here].

Product Parameters

• Product Type: High Integrity Digital Output Module (SIL-rated)
• System Series: ABB AC 800M HI (High Integrity) for System 800xA Safety Systems.
• Channels: Typically 8 or 16 channels of isolated digital outputs.
• Output Type: Sourcing transistor outputs for 24 VDC field devices.
• Safety Integrity: Certified for use in Safety Instrumented Systems up to SIL 3 according to IEC 61508 and IEC 61511 standards.
• Redundancy: Supports hardware redundancy (e.g., 1oo1D, 1oo2 architectures). Modules are used in pairs for fault-tolerant configurations.
• Output Current Rating: Each channel rated for a specific current (e.g., 2 A), with a total module current limit.
• Diagnostics: Extensive built-in diagnostics including output wire-break (open circuit) detection, short-circuit detection, overload detection, and internal circuit cross-checking to detect dangerous failures.
• Communication: Interfaces with the AC 800M HI controller via the secure and deterministic S800 I/O bus.
• Isolation: High-grade isolation between channels and from the field to the internal logic.

Advantages and Features

• Certified Safety Performance: The primary advantage of the ABB DO630 is its TÜV-certified design for SIL 3 applications, providing a verified hardware platform for final element control in safety loops.
• High Diagnostic Coverage (DC): Implements advanced diagnostics to detect a high percentage of dangerous failures, contributing to a high Safe Failure Fraction (SFF) required for high SIL levels.
• Fail-Safe Design: Engineered to de-energize outputs (or drive to a predefined safe state) upon a detected internal fault, ensuring the process can reach a safe condition.
• High Availability with Redundancy: Support for redundant (1oo2) configurations allows for continued operation during maintenance or a single module failure, increasing process availability without compromising safety.
• Seamless 800xA Safety Integration: The ABB DO630 is fully configured, validated, and documented within the ABB System 800xA safety engineering workflow, ensuring consistency and auditability.
• Robust and Reliable: Built for industrial environments with high immunity to electrical noise and designed for long-term, stable operation.

Application Cases in Key Fields

• Oil & Gas: Controlling Emergency Shutdown (ESD) valves, blowdown valves, and fire damper actuators on offshore platforms and in refineries (SIL 2/3).
• Chemical/Petrochemical: Operating safety-related solenoid valves for reactor quench systems, emergency venting, and compressor shutdown systems.
• Power Generation: Driving outputs for burner management system (BMS) shutoff valves and turbine trip solenoids.
• Pharmaceutical: Activating safety interlocks for containment or emergency cooling in API manufacturing where functional safety is required.
• Pipelines: Controlling mainline block valves and emergency shutdown systems for pump/compressor stations.

Comparisons with Competing Products

The ABB DO630 competes directly with digital output modules from other dedicated safety system vendors:

• Vs. HIMA DO Modules (e.g., for F35 series): Both are TÜV-certified for SIL 3. The ABB DO630 is deeply integrated into the 800xA engineering environment, which is advantageous for sites using ABB’s DCS for basic process control.
• Vs. Siemens S7-400H F/FH Digital Output Modules: Siemens offers similar functionality within its fail-safe PLC platform. The choice often centers on overall system architecture preference and existing site standards.
• Vs. Emerson DeltaV SIS Digital Output Cards: Emerson’s solution is similarly integrated with its DeltaV DCS. The ABB DO630 is distinguished by its specific certification for use with the AC 800M HI controller.
• Vs. Standard Digital Output Modules: Unlike standard control DO modules, the ABB DO630 carries the necessary safety certifications, advanced diagnostics, and fail-safe design principles that standard modules do not possess.

Selection Suggestions and Precautions

• Selection Advice:
  1. Derive from Safety Requirement Specification (SRS): Selection must be based on a formal SRS from a process hazard analysis (e.g., LOPA). The required SIL, hardware fault tolerance, and safe state dictate the configuration.
  2. Determine Load Characteristics: Precisely match the output current rating of the ABB DO630 to the inrush and holding current of the field device (solenoid, relay coil). Use intermediate relays for higher loads.
  3. Define Redundancy Needs: For higher availability or stricter safety requirements, plan for a redundant (1oo2) configuration using a paired set of modules.
  4. Verify System Compatibility: Ensure use with a compatible AC 800M High Integrity controller and within a certified S800 I/O system.
• Important Precautions:
  1. Use in Certified Configurations Only: The SIL rating is valid only when used in ABB’s certified hardware/software configurations. Do not deviate from approved designs and wiring practices.
  2. External Fusing: Despite internal protection, ABB typically requires external, dedicated fuses for each output channel as per safety design guidelines to ensure isolation and comply with certification.
  3. Proof Testing: The SRS will mandate a periodic proof test to verify the ABB DO630 module and the entire output loop function correctly. The design must facilitate this testing.
  4. Bypass Management: Any administrative bypass of an output channel for maintenance requires a strict, documented management-of-change (MOC) procedure.
  5. Wiring Segregation: Safety output wiring must be physically separated from non-safety and power cables to maintain integrity and prevent interference.
