ABB DI840 3BSE020836R1 | I/O Module, OEM Stock

Description

Product Introduction

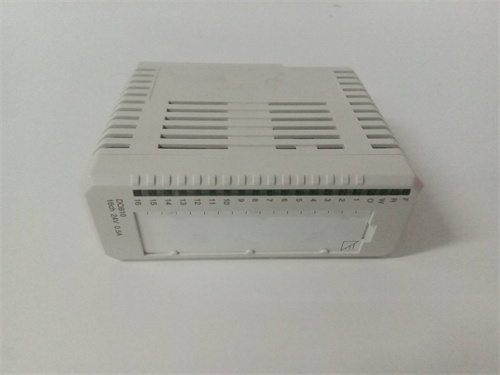

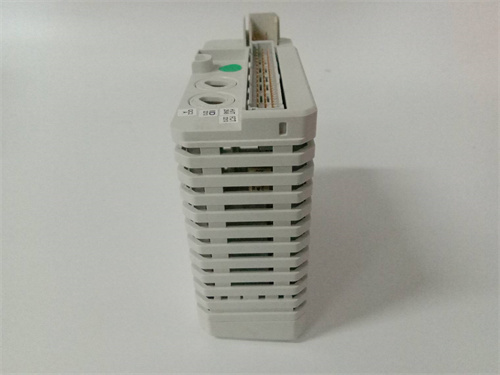

The ABB DI840 is a 16-channel digital input module from the S800 I/O family, designed for use with ABB AC800M, AC500, and other control systems. This module provides high-density discrete input acquisition for standard industrial sensors, limit switches, pushbuttons, and interlock contacts. The DI840 mounts on an S800 I/O termination unit (TU) and communicates with the controller via the Modulebus, supporting both simplex and redundant configurations.

The S800 I/O platform is ABB’s standard distributed I/O solution for process and discrete automation. The DI840 is the high-density counterpart to the DI810, offering the same electrical characteristics in a compact 16-channel form factor. For system integrators, this module reduces the number of I/O modules required for large installations, minimizing cabinet space and termination unit costs. The 3BSE020836R1 suffix indicates the current revision with enhanced diagnostics and improved noise immunity.

Key Technical Specifications

Key Selling Points & Differentiators

• High Channel Density: 16 channels per module reduces I/O cabinet footprint and termination unit count compared to 8-channel alternatives. Ideal for applications with high discrete input counts.
• Programmable Input Filtering: Selectable filter times from 1 ms to 32 ms allow optimization for fast response or noise rejection based on application requirements.
• Redundant Modulebus Support: When installed on a redundant termination unit (TU830 or TU840), the DI840 supports dual Modulebus communication paths for high-availability applications.
• Enhanced Diagnostics: Individual channel diagnostics include open-circuit detection and short-circuit monitoring. Status LEDs on the module faceplate provide immediate visual confirmation of channel health.
• Hot-Swap Capability: Replace a failed module without powering down the I/O station. The controller continues operating, and I/O values default to configured safe states during the swap.

Frequently Asked Questions (FAQ)

Q: What is the difference between the DI840 and the DI810?
The DI810 is an 8-channel digital input module. The DI840 offers 16 channels in the same physical footprint, providing twice the channel density. Both modules share the same electrical specifications, filter options, and termination unit compatibility. If you need higher channel density to reduce module count, the DI840 is the correct choice. If you need fewer channels per module for easier troubleshooting or isolation, the DI810 is appropriate.

Q: Which termination unit is compatible with the DI840?
The DI840 works with any S800 I/O termination unit that supports digital input modules. Common options include:

• TU810: Standard, non-redundant
• TU830: Redundant Modulebus with external 24 V power
• TU840: Redundant Modulebus with internal 24 V power distribution
• TU812: Compact version for space-constrained panels

Verify your existing TU part number before ordering to ensure mechanical compatibility.

Q: Does the DI840 support interrupt inputs?
No. The DI840 does not support hardware interrupt inputs. If you need inputs that trigger immediate controller action, consider the DI880 or a dedicated high-speed counter module. The DI840 is polled during the standard I/O scan cycle.

Q: Can I use the DI840 in a safety application?
No. The DI840 is a standard I/O module and is not SIL-rated. For safety applications requiring up to SIL 3, ABB offers the S800 I/O safety modules (DI880, DO880, etc.). These modules use a different backplane and require a safety controller (AC800M High Integrity) or a safety gateway.

Q: What is the maximum cable length for field wiring?
For standard 24 V DC inputs, the maximum cable length is 600 meters (2,000 feet) when using shielded cable and proper grounding practices. For high-speed applications using the 1 ms filter setting, we recommend limiting cable runs to 50 meters (164 feet) to avoid signal degradation from electrical noise.

Q: Can I mix DI840 modules with DI810 modules in the same I/O station?
Yes. The S800 I/O system supports mixing any digital and analog modules within the same station. The termination units and Modulebus communication handle the mixed configuration seamlessly. There are no restrictions on module mix beyond power budget and slot availability.

Q: What testing do you perform before shipping?
For new factory-sealed units, we do not break the seal to maintain OEM warranty eligibility. Our QC process includes visual inspection of packaging integrity, verification of the DI840 part number and 3BSE020836R1 suffix, and anti-counterfeit checks. For units where testing is requested, we perform a full functional test on a live S800 I/O system with an AC800M controller or Modulebus simulator, verifying all 16 channels, filter settings, and diagnostic functions. A test report is available upon request.
