ABB DI818 3BSE069052R1 | Input Module, In Stock, Fast Shipping

Description

Product Introduction

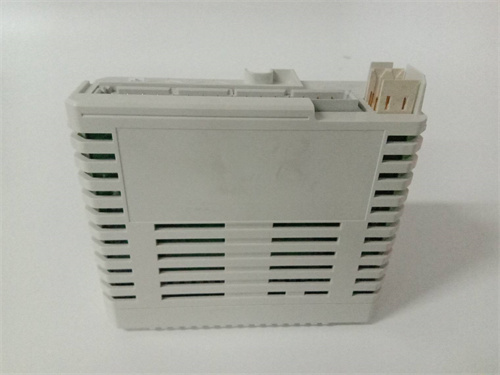

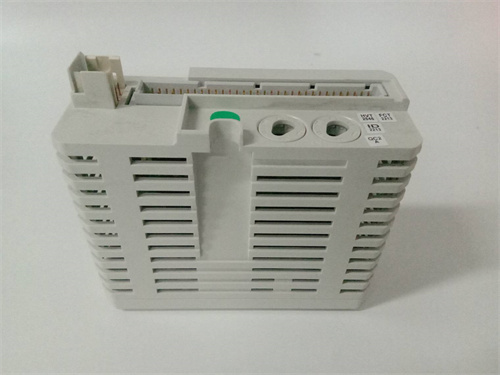

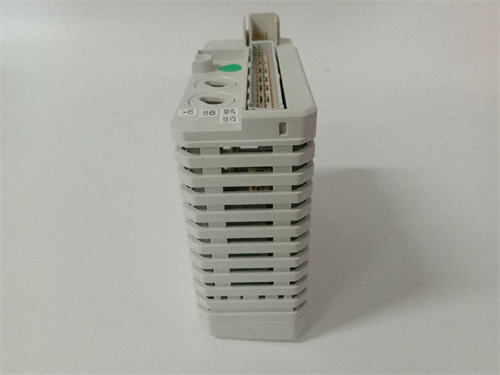

The ABB DI818 is a 16-channel digital input module from the S800 I/O family, designed for use with ABB AC800M controllers and distributed control systems. This module provides high-speed discrete input acquisition for applications requiring fast response times, such as packaging machinery, conveyor systems, and high-speed counting. The DI818 mounts on a S800 I/O terminal unit (TU) and communicates with the controller via the Modulebus, a redundant communication backbone that supports hot-swap and high availability.

The S800 I/O platform is ABB’s standard distributed I/O solution for both process and discrete automation. The DI818 distinguishes itself with configurable input filtering and diagnostics that go beyond standard discrete modules. For system integrators, this module offers the flexibility to handle both standard industrial sensors and high-speed encoder inputs without requiring specialty counters for moderate-frequency applications. The 3BSE069052R1 suffix indicates the current revision with enhanced diagnostics and improved noise immunity compared to earlier variants.

Key Technical Specifications

Key Selling Points & Differentiators

• High-Speed Response: Configurable filtering down to 0.25 ms allows capture of fast sensor events without a dedicated high-speed counter module. Reduces system cost for moderate-frequency applications.
• Redundant Modulebus Support: When installed on a redundant terminal unit (TU830 or TU840), the DI818 supports dual Modulebus communication paths for high-availability applications. Switchover is automatic and does not disrupt I/O scanning.
• Enhanced Diagnostics: Individual channel diagnostics include open-circuit detection, short-circuit monitoring, and over-temperature warnings. Status indicators on the module faceplate provide immediate visual confirmation of channel health.
• Hot-Swap Capability: Replace a failed module without powering down the I/O station. The controller continues operating, and I/O values default to configured safe states during the swap.
• OEM Authenticity: Each unit undergoes visual inspection for ABB branding, serial number traceability, and factory packaging verification. We log hardware revision and firmware version before shipping.

Frequently Asked Questions (FAQ)

Q: Which terminal unit (TU) is compatible with the DI818?
The DI818 works with any S800 I/O terminal unit that supports digital input modules. Common options include:

• TU810: Standard, non-redundant
• TU830: Redundant Modulebus with external 24 V power
• TU840: Redundant Modulebus with internal 24 V power distribution
• TU812: Compact version for space-constrained panels

Verify your existing TU part number before ordering to ensure mechanical compatibility.

Q: What is the difference between the DI818 and the DI810?
The DI810 is a standard 16-channel digital input module with fixed 1 ms filtering and no open-circuit detection. The DI818 offers programmable filtering (down to 0.25 ms) and enhanced diagnostics including open-circuit and short-circuit detection. For high-speed applications or systems requiring advanced diagnostics, the DI818 is the correct choice. For basic discrete inputs where speed and diagnostics are not critical, the DI810 is a lower-cost alternative.

Q: Can I use this module in a safety application?
No. The DI818 is a standard I/O module and is not SIL-rated. For safety applications requiring up to SIL 3, ABB offers the S800 I/O safety modules (DI880, DO880, etc.). These modules use a different backplane and require a safety controller (AC800M High Integrity) or a safety gateway.

Q: What is the maximum cable length for field wiring?
For standard 24 V DC inputs, the maximum cable length is 600 meters (2,000 feet) when using shielded cable and proper grounding practices. For high-speed applications using the 0.25 ms filter setting, we recommend limiting cable runs to 50 meters (164 feet) to avoid signal degradation and false triggering from noise.

Q: Does the DI818 support interrupt inputs?
No. The DI818 does not support hardware interrupt inputs. If you need inputs that trigger immediate controller action (e.g., for fast shutdown or position capture), consider the DI890 or a dedicated high-speed counter module. The DI818 is polled during the standard I/O scan cycle.

Q: What testing do you perform before shipping?
We test each DI818 on a live S800 I/O system with an AC800M controller or Modulebus simulator. This includes verifying communication handshake, cycling all 16 channels through on-off states with a calibrated signal source, measuring response time at multiple filter settings, and performing a 24-hour continuous power-on test to catch intermittent failures. A test report with channel mapping and diagnostic results is included with each shipment.

Q: Can I hot-swap the DI818 without losing configuration?
Yes. The module configuration is stored in the controller, not on the module itself. When you insert a new DI818, the controller automatically downloads the configuration parameters (filter settings, diagnostics enable, etc.) to the module. No reconfiguration is required. However, if the new module has a different firmware revision, the controller will log a mismatch warning but continue normal operation as long as the module is compatible.
