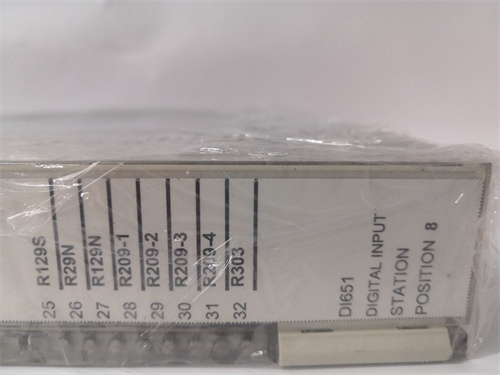

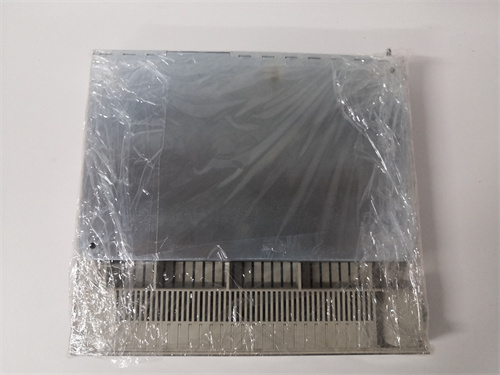

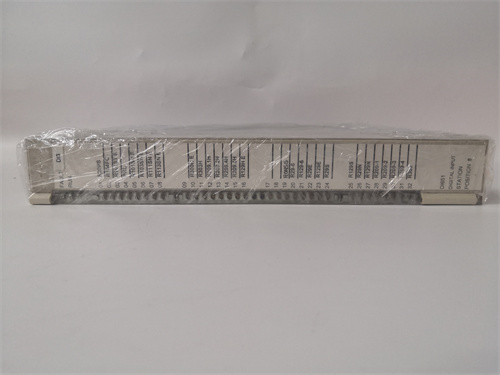

ABB DI651 | 16-Channel 24V DC Input Module

Description

Product Introduction

That refinery in Texas—the one with the AC800M system controlling the catalytic cracker—had a “valve position” alarm last spring. The operators saw a “closed” status on a valve that was clearly open. The techs checked the limit switch, the wiring, even the valve itself. Nothing. I pulled the DI651 from the rack and bench-tested it. Channel 12 had a stuck input—it was reading high regardless of the input state. One bad optocoupler, one $500 module, one very confusing shift for the operators.

The ABB DI651 is a 16-channel digital input module from the S800 I/O family. It’s a versatile module—each channel can be configured for sinking or sourcing inputs, so it works with both types of field devices. The inputs are optically isolated from the backplane and from each other, so a surge on one channel won’t affect the rest. The module also has line monitoring: it can detect open circuits and short circuits on the field wiring. In a refinery, it’s reading valve limit switches, motor starter aux contacts, and pushbutton statuses.

Key Technical Specifications

Quality Inspection Process (SOP Transparency)

A digital input module gets a thorough functional test. Here’s our process.

1. Incoming Verification
   • Match the model: DI651. (There are variants—this is the standard version.)
   • Visual inspection: Look for bent pins on the backplane connector. Check the front panel for scratches.
   • Inspect the PCB for conformal coating—should be even, no bubbles.
   • Verify the revision sticker.
2. Power-On Self-Test
   • Install the module in an S800 test rack with a known-good power supply and processor.
   • Apply rack power—watch the “OK” LED.
   • Connect to the engineering workstation, verify the module is recognized.
3. Input Functional Test
   • Connect a 24V DC source to each channel in sequence (configured for sourcing).
   • From the engineering workstation, verify the input state changes.
   • Test at 24V, 20V (minimum), and 30V (maximum)—must switch correctly.
   • Reconfigure channels for sinking and repeat.
4. Line Monitoring Test
   • For a sample of channels, simulate open circuit (disconnect input).
   • Verify the fault is detected and reported.
   • Simulate short circuit (connect input to common).
   • Verify the fault is detected.
5. Isolation Test
   • 500V megger between field terminals (shorted) and backplane ground—>10 MΩ.
   • Repeat between each channel’s terminals and the next channel—>10 MΩ.
6. Thermal Soak
   • 4 hours at 55 °C in a thermal chamber, all inputs at 24V.
   • Monitor for any fault indications or input dropouts.
7. Firmware Verification
   • Read the firmware version via the engineering workstation.
   • Log it in the test report.
8. Final QC & Packaging
   • QC sticker with test date and operator initials.
   • Wrap in anti-static bag.
   • Double-box with foam padding.
   • Test report included—input threshold results, line monitoring check.

Field Replacement Pitfalls

I’ve swapped these in refineries, chemical plants, and offshore platforms. Here’s where people go wrong.

❗Sinking vs. Sourcing Confusion
The DI651 can be configured for sinking or sourcing per channel. If you have a sourcing field device (like a PNP proximity switch), you need the module configured for sinking. If you have a sinking device (NPN), you need sourcing. Get it wrong, and the input won’t work. Check your field devices before configuring.

Line Monitoring Resistors
The line monitoring feature works by injecting a small test current. For dry contacts, you may need external resistors to create a path for the test current. Check the manual for required values.

External Power
The module needs 24V field power for the inputs. If you assume it’s powered from the backplane, you’ll have no inputs. Connect field power separately.

Grounding
The inputs are referenced to the module’s common. If your field devices are grounded at the sensor end, you can create ground loops. Use isolated sensors or signal isolators.

Channel Configuration
Some versions of this module require configuration per channel. If you replace a module without restoring the configuration, your inputs may not work. Always back up the config first.

Nail these five, and your DI651 will read those inputs for years.

New Original vs. Refurbished: Why It Matters

“New Original (New Surplus)” means this module was manufactured by ABB, packed in its original box, and never installed. The optocouplers have zero hours, the inputs have never been energized, and the terminal block has never been wired.

Refurbished risk in plain terms
A refurbished ABB input module often comes from a decommissioned plant. The optocouplers age—their current transfer ratio drops. A refurbisher tests it at room temperature and calls it good. In the field, at high temperature, it may fail to detect an input.

Real cost of a refurbished failure
If this module fails to detect a critical limit switch, the process may not shut down when it should. The result could be a safety incident. The cost of that event dwarfs the price difference.

What we provide as proof

• ABB box (or photos).
• Serial number recorded.
• Input threshold test results.
• Line monitoring verification.
• 12‑month warranty.

Pricing context
We’re priced 35% above the cheapest “pulled” ABB modules and 20% below ABB’s current list price. That pays for the full functional test, the line monitoring check, and the warranty.

Performance Benchmarks & Test Results

Test conditions: S800 test rack, 24.0V DC field supply, ambient 24 °C.

We keep the full test data—ask, and we’ll email the PDF.
