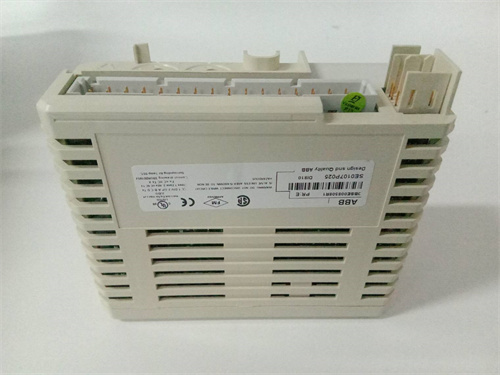

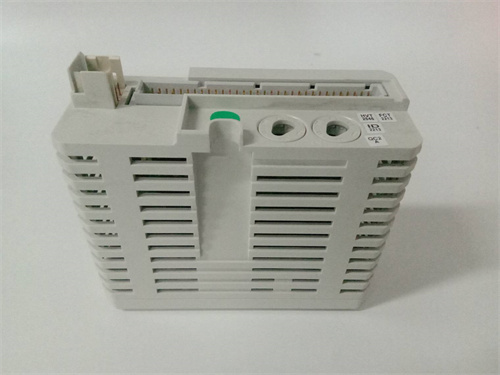

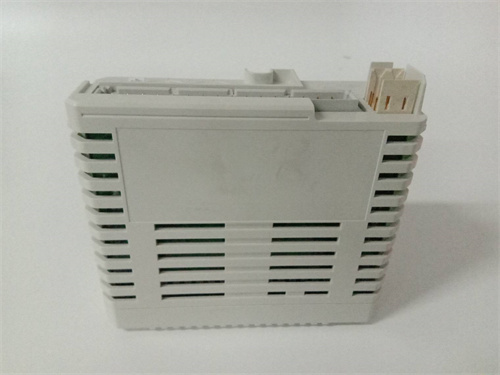

ABB DI610: 16-Channel Digital Input Module for S800 I/O

Product Description

The ABB DI610 is a high-density digital input module for the ABB S800 I/O system, which is a core component of the System 800xA and Compact Product Suite control platforms. This module is designed to acquire the status of a large number of field devices by providing 16 electrically isolated input channels. The ABB DI610 reads 24V DC signals from devices such as pushbuttons, limit switches, proximity sensors, and relay contacts, converting them into digital data for the controller’s logic. Its compact design offers excellent channel density per rack slot, making it an efficient choice for applications with many discrete status points. The reliable performance of the ABB DI610 is fundamental for accurate process monitoring and interlocking in industrial automation.

Product Parameters

• Product Type: Digital Input Module

• Manufacturer: ABB

• Part Number: DI610

• I/O System: S800 I/O

• Number of Channels: 16 channels, electrically isolated in groups (e.g., 8 channels per group).

• Input Type: 24V DC, Sink or Source (configurable per group via wiring to common terminal).

• Input Voltage Range: Typically 0-30V DC.

• Logic Levels: Logic 1: 15-30V DC, Logic 0: 0-5V DC.

• Isolation: 500V AC between field and system, and between channel groups.

• Connection: Via S800 I/O terminal units (e.g., TU847, TU848, TU849).

• Diagnostics: Module OK LED, and per-channel status indication on the terminal unit.

Advantages and Features

The primary advantage of the ABB DI610 is its combination of high channel count, electrical isolation, and seamless integration within the S800 I/O and System 800xA ecosystem. The isolation between channel groups prevents faults or noise on one set of inputs from affecting others, enhancing overall system reliability. The module offers a fast response time and excellent noise immunity, which is crucial for accurate reading of signals in electrically noisy industrial environments. Configuration is straightforward within ABB’s engineering tools, and the module’s status is fully visible for diagnostics. The ABB DI610 is designed for high availability and supports hot-swapping in redundant I/O configurations, minimizing downtime during maintenance.

Application Cases in Various Fields

This module is used in virtually any industry requiring discrete status monitoring. In Manufacturing, the ABB DI610 reads signals from safety gates, part presence sensors, and machine cycle completion switches on assembly and packaging lines. Within Water and Wastewater Treatment, it monitors pump run status, valve limit switches, and tank level alarms. For Building Automation, it interfaces with door/window contacts, fire alarm inputs, and occupancy sensors. It is also extensively used in Material Handling for conveyor sensor inputs and in Process Industries for reading the status of manual switches and local control panel indicators.

Comparisons with Competing Products

Compared to digital input modules from other PLC manufacturers (like Siemens SM321 or Rockwell 1756-IB16), the ABB DI610 offers comparable functionality but is distinguished by its deep integration with the S800 I/O system and the System 800xA engineering environment. Its group isolation is a robust feature often found as standard. Compared to lower-cost, non-isolated modules, the ABB DI610 provides superior protection against ground loops and electrical noise, which is critical in large-scale or process plant applications. For users within the ABB ecosystem, it represents a reliable, well-supported, and high-performance choice.

Selection Suggestions and Precautions

1. Sinking vs. Sourcing Configuration: The ABB DI610 module itself is universal, but its operation as a sinking or sourcing input is determined by how you wire the common terminals of the channel groups on the terminal unit. Plan your field device wiring scheme accordingly before installation.

2. Terminal Unit Selection: The ABB DI610 requires a compatible S800 terminal unit (TU). Select the correct TU model (e.g., TU847 for standard I/O) that supports digital input modules and provides the necessary screw terminals or connectors.

3. External Power Supply: The 24V DC for the field devices must be supplied from an external power source, not from the controller. Ensure this supply is adequately sized and fused for the total number of active inputs.

4. Wiring and Noise Immunity: For long cable runs or noisy environments, use shielded twisted-pair cables. Connect the shield to ground at the cabinet entry point (usually at the terminal unit) to minimize electromagnetic interference on the signals read by the ABB DI610.

5. Diagnostic Utilization: Utilize the module and channel status information available in the System 800xA operator station or engineering workstation. This allows for quick identification of faulty field devices, wiring problems, or a failed ABB DI610 module itself, speeding up troubleshooting.
