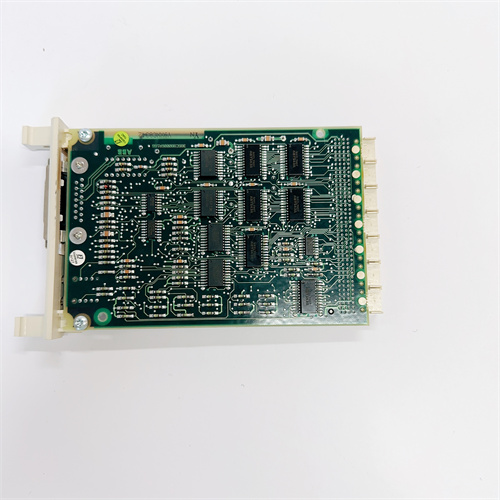

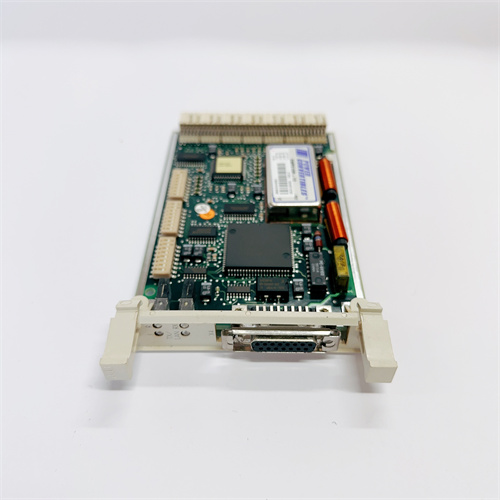

ABB CS513 3BSE000435R1

Description

Product Overview

The ABB CS513 3BSE000435R1 is a highly specialized processor/controller module for the ABB Advant Controller 150 (AC 150) system, a part of the broader MOD 300 distributed control system (DCS) family.  This module is not a simple I/O card but the central computing unit of a control node, responsible for executing complex regulatory and sequential control strategies in critical process applications. The ABB CS513 3BSE000435R1 integrates the microprocessor, memory, and communication interfaces required to manage a segment of a plant’s automation, handling tasks from basic PID loop control to advanced interlocking. Its design reflects the robust, fault-tolerant principles of its era, built for 24/7 operation in demanding environments like refineries and power plants. The performance and reliability of the entire control loop hinge on the integrity of the ABB CS513 3BSE000435R1, making it the definitive core component of an AC 150 station.

Product Parameters

• Product Family: ABB MOD 300 / Advant OCS (AC 150 Controller).
• Module Type: Central Processing Unit (CPU) Module.
• Ordering Code: CS513 (Type Designation), 3BSE000435R1 (Article Number).
• Processor: Proprietary ABB microprocessor architecture of its generation.
• Memory: Includes volatile working memory (RAM) and non-volatile memory for storing the operating system and application code, often supported by battery backup.
• Control Capacity: Designed to handle a defined number of function blocks, loops, and I/O connections as per the MOD 300 system architecture.
• Communication Interfaces:
  • Operator Bus: For connection to operator stations (OS) for HMI functions.
  • Field Bus: For communication with I/O subsystems and other controllers via the MOD 300 Field Bus (MFB).
  • Peer-to-Peer: Capability for communication with other AC 150 or AC 410 controllers.
• Redundancy: Supports redundant (paired) configuration for high-availability applications, where a standby ABB CS513 3BSE000435R1 module can take over control in case of a failure in the master.
• Power Supply: Powered from the AC 150 baseplate/rack.

Advantages and Key Features

The primary advantage of the ABB CS513 3BSE000435R1 was its integration into a comprehensive, scalable DCS platform, providing powerful and deterministic control for continuous processes. A key feature was its support for hardware redundancy, enabling the creation of fault-tolerant control nodes critical for processes where unscheduled downtime was unacceptable. The module offered robust processing capabilities for its time, efficiently executing the control application built using ABB’s MOD 300 engineering tools. Its certified communication protocols ensured reliable and secure data exchange within the MOD 300 network. The physical construction of the ABB CS513 3BSE000435R1 was designed for industrial durability, with components selected for long-term reliability. For system integrators, the well-defined architecture and engineering workflow surrounding the ABB CS513 3BSE000435R1 provided a stable platform for implementing complex automation strategies.

Application Cases in Industry

The ABB CS513 3BSE000435R1 was deployed as the central controller in MOD 300 DCS installations across heavy process industries, including:

• Fossil Fuel Power Generation: Controlling boiler feedwater systems, combustion management, and turbine auxiliary systems.
• Oil & Gas Refining: Managing distillation column controls, reactor temperature and pressure loops, and utility plant operations in refineries.
• Pulp & Paper Production: Overseeing critical sections of the pulping line, chemical recovery, or paper machine controls.
• Chemical Processing: Executing batch reactor sequences, continuous distillation, and complex safety interlocks.
  In these applications, the controller managed hundreds of I/O points and executed control algorithms vital for safe, efficient, and consistent production.

Comparison with Competing Products

In its operational era, the ABB CS513 3BSE000435R1 competed with other proprietary DCS controller modules from vendors like Honeywell (TDC 3000 Process Manager) and Foxboro (I/A Series CP). Its competitive edge lay in the specific capabilities and system architecture of the MOD 300 platform, such as its networking and database management. Compared to modern programmable automation controllers (PACs) or newer DCS controllers (like ABB’s own AC 800M), the ABB CS513 3BSE000435R1 represents an older, more closed architecture with less processing power, memory, and open connectivity. However, for its time, it offered a high level of integration and reliability that made it a preferred choice for large-scale process automation projects where ABB’s MOD 300 system was selected.

Selection Suggestions and Precautions

1. Legacy System Spare: The ABB CS513 3BSE000435R1 is almost exclusively selected today as a spare part for maintaining existing MOD 300 systems. It is not suitable for new projects.
2. Exact Part & Firmware Match: Verification of the exact article number and firmware revision is critical. Controllers often require specific firmware versions to be compatible with the overall system software and I/O configuration. A mismatch can cause communication failures or erratic operation.
3. Application Software Backup: The controller module is typically blank or contains generic firmware. The specific plant application software is stored separately on the MOD 300 system’s common database. A verified, recent backup of the entire system configuration is absolutely essential before replacing this module.
4. Redundancy Configuration: If replacing a module in a redundant pair, follow ABB’s precise procedures for synchronization and cutover to avoid process disturbances. The standby module must be correctly synchronized with the master.
5. Battery Check: If the module has a battery for memory backup, check its condition. A failed battery can lead to loss of the controller’s configuration if power is cycled.
6. Migration Planning: Given the age of this technology, plants relying on the ABB CS513 3BSE000435R1 should have a long-term migration plan to a modern control system (e.g., ABB System 800xA) to manage obsolescence risk and access modern features.
