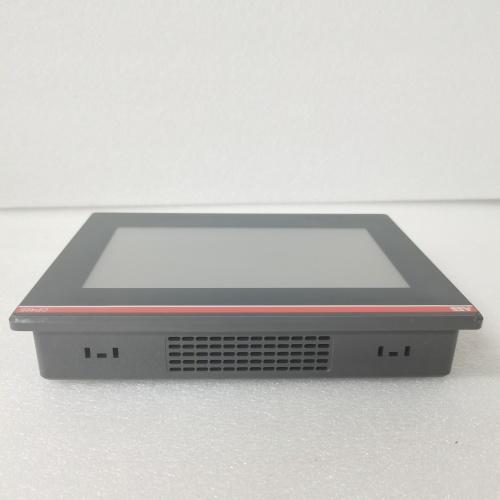

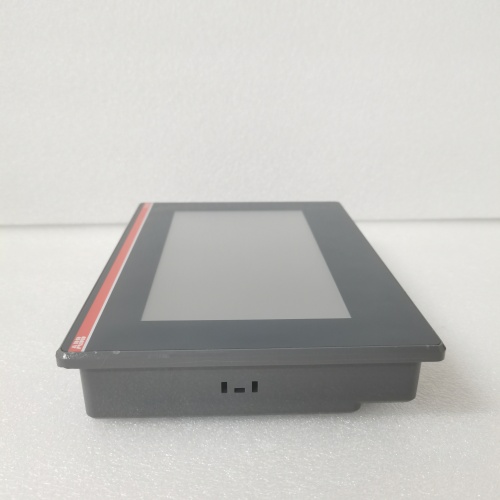

ABB CP502

Description

Product Description

Product Parameters

Advantages and Features

1. Compact Form Factor & Space Efficiency

   The ABB CP502 features a slim 50 mm depth and compact footprint, making it perfect for space-constrained control cabinets and distributed field stations where larger HMIs are impractical. Its panel-mount design ensures easy integration into existing control setups without requiring extensive modifications.

2. Multi-Protocol Communication Compatibility

   Equipped with Ethernet and RS-485 interfaces, the ABB CP502 supports a wide range of industrial protocols, enabling seamless connectivity with ABB’s native control systems and third-party PLCs from leading manufacturers. This eliminates the need for external protocol converters, streamlining system architecture and lowering total cost of ownership.

3. Rugged Design for Industrial Environments

   With an IP65-rated front panel, the ABB CP502 is dustproof and waterproof, suitable for washdown environments in food processing and chemical plants. Its EMI shielding and wide operating temperature range ensure stable performance in high-noise industrial settings, while its low power consumption reduces energy costs for continuous operation.

4. User-Friendly Operation & Data Management

   The ABB CP502 features an intuitive touch interface with customizable application screens, allowing operators to access critical process data with minimal training. Its USB host port supports real-time data logging to external storage devices, enabling compliance reporting and process trend analysis for quality control purposes.

Application Cases in Application Fields

1. Distributed Water Treatment Stations

   In a municipal water distribution network, the ABB CP502 is deployed at remote pumping stations to monitor water pressure, flow rate, and pump status. Its compact size fits into small field enclosures, while its Modbus RTU connectivity links to local PLCs for localized control of pump start/stop sequences. The panel’s data logging feature captures pressure trends, helping operators optimize pump operation and reduce energy consumption by 12%.

2. Packaging Machinery Control

   A food packaging plant uses the ABB CP502 as the operator interface for its vertical form-fill-seal (VFFS) machines. Its glove-operable touchscreen allows operators to adjust bag length, sealing temperature, and production speed without removing protective gear, while its IP65 front panel withstands daily washdowns. The panel’s alarm system triggers alerts for low film stock or seal failures, minimizing production downtime.

3. HVAC and Building Automation

   A commercial office building integrates the ABB CP502 into its HVAC system to monitor and control air handling units (AHUs) and chiller plants across multiple floors. Its Ethernet connectivity enables centralized monitoring via the building’s DCS, while its localized control capabilities allow on-site adjustments to temperature and airflow settings. The panel’s low power consumption aligns with the building’s energy efficiency goals, reducing operational costs over time.

Comparisons with Competing Products

Selection Suggestions and Precautions

Selection Suggestions

1. Choose the ABB CP502 for small-scale, distributed control applications requiring a compact HMI with multi-protocol connectivity, especially in space-constrained field enclosures.
2. Verify compatibility with your existing control system protocol (e.g., Modbus RTU for remote PLCs, Ethernet/IP for Allen-Bradley systems) before deployment.
3. Prioritize this panel for washdown environments or facilities where glove-operable touchscreens and IP65 front protection are essential.

Precautions

1. Ensure the ABB CP502 is mounted in a protected enclosure to maintain its IP20 rear protection rating and prevent dust or moisture damage to internal components.
2. Use shielded communication cables for RS-485 and Ethernet connections to minimize electromagnetic interference and ensure stable data transmission.
3. Avoid exposing the panel to temperatures outside its specified operating range, as this may cause permanent damage to the LCD display or touchscreen.
4. Perform regular firmware updates via the USB port to unlock new features and address potential security vulnerabilities.
