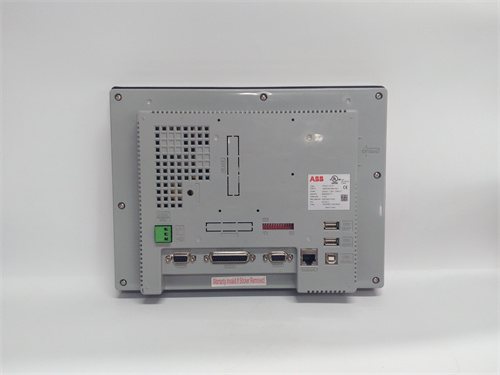

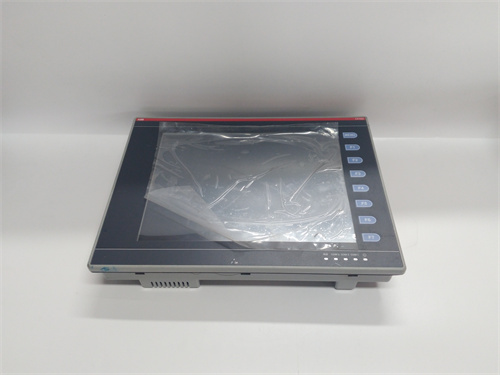

ABB CP450-T-ETH

Description

Product Description

The ABB CP450-T-ETH is a high-performance operator panel or touch screen interface designed as a key human-machine interface (HMI) component for ABB’s industrial automation systems, specifically for the AC 800M controller family within ABB’s System 800xA DCS architecture. The “CP” designation typically indicates a Control Panel or operator interface device, “T” indicates touch screen capability, and “ETH” indicates Ethernet connectivity. The core function of the ABB CP450-T-ETH is to provide operators with a local graphical interface to monitor process parameters, alarms, and system status, as well as to enter commands and acknowledge alarms directly at the equipment location. It features a high-resolution color TFT touch screen display for intuitive operation. The ABB CP450-T-ETH communicates with AC 800M controllers and other system components over Ethernet, providing real-time visualization and control capabilities. Engineered for industrial environments, the ABB CP450-T-ETH features robust construction, IP-rated front panel protection, and reliable performance over a wide operating temperature range.

Product Parameters

• Model Number: ABB CP450-T-ETH
• Type: Operator Panel / Touch Screen HMI
• Series: ABB System 800xA / AC 800M
• Display: High-resolution color TFT LCD with touch screen
• Input Method: Resistive or capacitive touch screen
• Function: Local monitoring and control interface for operators
• Communication: Ethernet for connection to plant control network
• Software: Compatible with ABB’s 800xA operations environment
• Diagnostics: Self-diagnostics with status indicators
• Indicators: Power and communication status LEDs
• Power Supply: 24 VDC
• Mounting: Panel mount in control cabinets with IP65 front protection
• Operating Temperature: 0°C to 50°C (typical)
• Certification: CE, UL, CSA, ATEX (for hazardous area installations when properly housed)

Advantages and Features

The primary advantage of the ABB CP450-T-ETH lies in its seamless integration with ABB’s System 800xA ecosystem and its intuitive touch screen interface. Using the ABB CP450-T-ETH, operators can monitor and control processes locally without needing to access central control rooms or use separate HMI stations. The panel’s high-resolution display provides clear visualization of process graphics, trends, and alarms. The intuitive touch screen interface allows operators to quickly navigate screens, acknowledge alarms, and enter setpoints. Ethernet connectivity ensures fast and reliable communication with the control system. As an original ABB component, the ABB CP450-T-ETH guarantees perfect compatibility with AC 800M controllers and the 800xA software environment. The rugged construction with IP65 front protection ensures reliable operation in industrial environments with dust, moisture, and temperature variations.

Application Cases in Application Fields

The ABB CP450-T-ETH finds application across various industries where ABB’s System 800xA is deployed and local operator access is required.

• Chemical Processing: In a chemical plant, the ABB CP450-T-ETH mounted on a reactor skid allows operators to monitor reaction temperatures and pressures, and manually adjust setpoints during batch operations.
• Power Generation: At a power plant, local operator panels near boiler feed pumps provide quick access to pump status, vibration readings, and start/stop controls.
• Water Treatment: In a water treatment facility, ABB CP450-T-ETH panels at filter buildings enable operators to monitor filter differential pressure and initiate backwash sequences locally.
• Pharmaceutical Manufacturing: In validated facilities, local operator panels provide secure access for recipe selection and batch monitoring.
• Pulp and Paper: At paper mills, local panels on paper machines allow operators to monitor machine speed and product quality parameters.

Comparison with Competing Products

When compared to similar operator panels from other manufacturers such as Siemens (SIMATIC HMI) or Rockwell Automation (PanelView), the ABB CP450-T-ETH offers specific advantages for users invested in ABB’s System 800xA ecosystem. It provides direct compatibility and seamless integration with ABB’s control system software and engineering tools, simplifying configuration and reducing engineering effort. For facilities with existing ABB infrastructure, the ABB CP450-T-ETH ensures consistent operator experience and access to ABB’s technical support.

Selection Suggestions and Precautions

When selecting the ABB CP450-T-ETH for your application, first verify compatibility with your specific ABB controller model and 800xA software version. Confirm the physical mounting dimensions and cutout requirements match your control panel design. Before installation, carefully inspect the panel for any signs of physical damage. Observe proper electrostatic discharge precautions when handling the module. When installing in a panel, ensure proper sealing to maintain the IP65 protection rating. Configure the panel using ABB’s engineering software, setting appropriate communication parameters and loading the required graphics and control screens. After installation, verify communication with the controller and test all operator functions. For critical applications, maintain a spare ABB CP450-T-ETH panel on hand to minimize downtime in case of failure.
