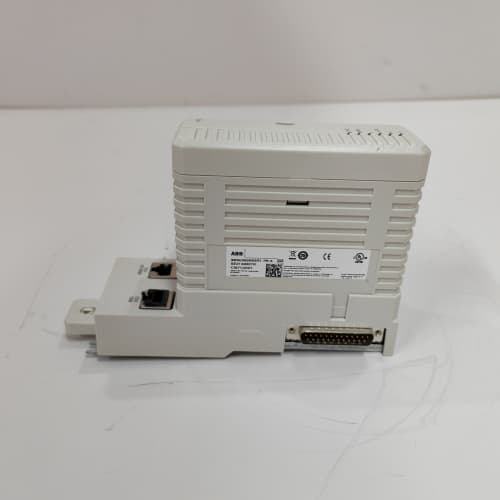

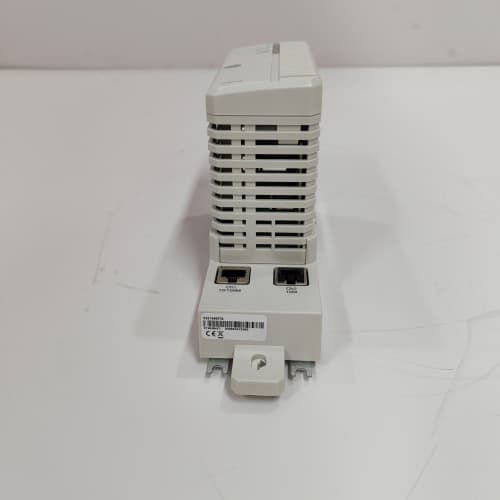

ABB CI871AK01 3BSE092693R1

Description

Product Description

The ABB CI871AK01 3BSE092693R1 is a high-performance communication interface module designed as a key component for ABB’s industrial automation systems, specifically for the AC 800M controller family and S800 I/O systems within ABB’s System 800xA DCS architecture. The “CI” designation stands for Communication Interface, indicating its primary function in enabling data exchange between control system components. The core function of the ABB CI871AK01 is to provide connectivity between ABB controllers and fieldbus networks, particularly Profibus DP. It serves as a master or slave device on Profibus networks, allowing the AC 800M controller to communicate with distributed I/O stations, drives, intelligent sensors, and other field devices. The “AK01” suffix represents a specific version or revision of the base CI871 module. Engineered for demanding industrial environments, the ABB CI871AK01 features robust construction, comprehensive diagnostic capabilities, and reliable performance over a wide operating temperature range.

Product Parameters

• Model Number: ABB CI871AK01 3BSE092693R1
• Type: Communication Interface Module (Profibus DP)
• Series: ABB AC 800M / S800 I/O (System 800xA)
• Function: Profibus DP communication between controller and field devices
• Protocol Support: Profibus DP-V0, DP-V1
• Transmission Speed: 9.6 kbit/s to 12 Mbit/s (auto-detecting)
• Operation Modes: Master or Slave (configurable)
• Station Addressing: Configurable via software or switches
• Isolation: Galvanic isolation between fieldbus and internal electronics
• Diagnostics: Comprehensive self-diagnostics with LED status indicators
• Indicators: Front-panel LEDs for power, communication activity, module status, and bus fault
• Power Supply: +5 VDC from backplane
• Mounting: In S800 I/O mounting base (TU8xx series) on DIN rail
• Connectors: 9-pin D-sub female for Profibus DP interface
• Operating Temperature: 0°C to 60°C
• Certification: CE, UL, CSA, ATEX (for hazardous area installation when properly housed)

Advantages and Features

The primary advantage of the ABB CI871AK01 lies in its seamless integration with ABB’s System 800xA ecosystem while providing open connectivity to Profibus DP networks. Using the ABB CI871AK01, engineers can connect ABB AC 800M controllers to a wide variety of field devices from different manufacturers, making the system open and flexible. The module supports both master and slave modes, allowing it to be used in various network architectures. The AK01 version of the ABB CI871AK01 incorporates the latest firmware enhancements, improved diagnostics, and ensures compatibility with current versions of ABB’s engineering tools. Comprehensive diagnostic features provide detailed information about network health and communication status, accessible through ABB’s engineering software. The module’s robust design ensures reliable operation in industrial environments with vibration, temperature extremes, and electrical noise. Hot-swapping capability allows replacement without disturbing fieldbus communication in properly configured systems.

Application Cases in Application Fields

The ABB CI871AK01 finds essential application across various process and hybrid industries requiring reliable Profibus DP connectivity.

• Chemical Processing: In a continuous chemical plant, the ABB CI871AK01 connects remote I/O racks located near reactor vessels to a central AC 800M controller via Profibus DP, enabling precise monitoring of temperatures and pressures while reducing long analog cable runs.
• Oil and Gas Production: On an offshore platform, the ABB CI871AK01 enables communication to wellhead I/O, ensuring critical process data is transmitted reliably to the main control system.
• Water and Wastewater Treatment: For a large municipal water treatment facility, the ABB CI871AK01 allows the central SCADA system to communicate with remote pump stations via Profibus DP.
• Pharmaceutical Manufacturing: In a validated pharmaceutical facility, the ABB CI871AK01 ensures deterministic communication between the control system and critical process I/O.
• Mining and Minerals Processing: On conveyor systems spanning kilometers, the ABB CI871AK01 enables distributed I/O for emergency stops and belt monitoring devices.

Comparison with Competing Products

When compared to similar Profibus DP interface modules such as the Siemens ET 200M IM153-2 or the Rockwell Automation 1794-ACN15, the ABB CI871AK01 offers distinct advantages for users invested in ABB’s System 800xA ecosystem. While Siemens modules excel in SIMATIC environments, the ABB CI871AK01 provides tighter integration with ABB’s engineering tools and asset management software. Compared to generic Profibus DP slave devices, the ABB CI871AK01 offers superior diagnostic capabilities and seamless configuration through ABB’s Control Builder software. Its ability to work with both standard and intrinsically safe I/O modules gives the ABB CI871AK01 flexibility in facilities with mixed hazardous area requirements.

Selection Suggestions and Precautions

When selecting the ABB CI871AK01 for your project, first verify compatibility with your specific S800 I/O mounting bases (TU8xx series) and your Profibus master class. Ensure that the AK01 firmware version of the ABB CI871AK01 matches your control system requirements. Proper termination of the Profibus network is critical when installing the module; ensure correct station addressing and that bus terminators are enabled at physical ends of network segments. When configuring the module in your engineering software, pay careful attention to Profibus baud rate settings and GSD file compatibility. Always observe proper grounding and shielding practices to prevent communication errors caused by electromagnetic interference. Before commissioning, perform complete communication testing to verify correct data exchange between the ABB CI871AK01 and the Profibus master. Finally, maintain current documentation of the module’s configuration to support troubleshooting and future expansion. For critical applications, maintain a spare ABB CI871AK01 module on hand to minimize downtime in case of failure.
