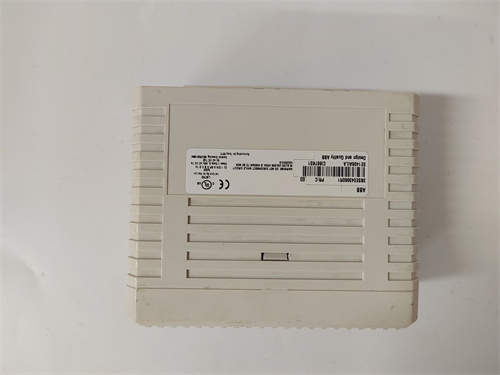

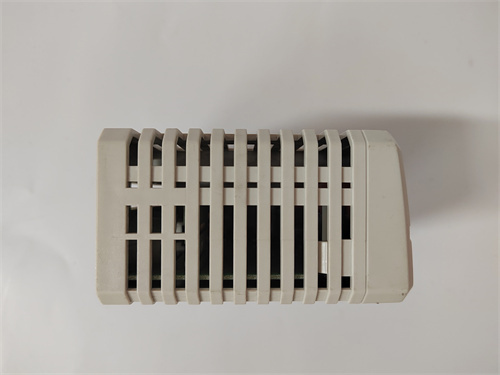

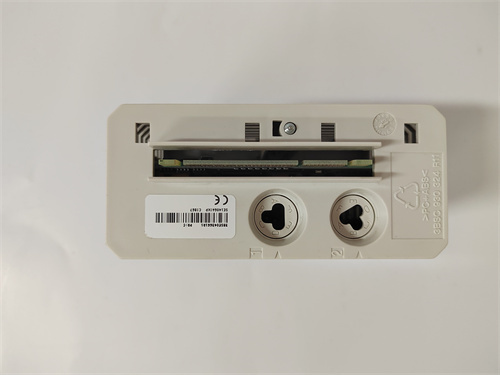

ABB CI867AK01

Description

Product Description

Product Parameters

Advantages and Features

1. Multi-Protocol Versatility for Heterogeneous Networks

   The ABB CI867AK01 supports a comprehensive suite of industrial serial protocols, eliminating the need for multiple specialized communication modules. This flexibility enables seamless integration with remote I/O units, flow computers, safety instrumented systems (SIS), and third-party PLCs, reducing system complexity and total cost of ownership.

2. Long-Distance Isolated Communication

   With RS-485/RS-422 interface support and a maximum transmission distance of 10 km, the ABB CI867AK01 is ideal for remote monitoring and control applications. Its 1500 V AC port isolation protects the module and host controller from voltage surges, ground loops, and electrical faults, enhancing system reliability in high-risk environments.

3. Hot-Swap Capability for Minimized Downtime

   The ABB CI867AK01 supports hot swapping, allowing maintenance personnel to replace the module while the controller remains operational. This feature is critical for continuous production industries like oil and gas and power generation, where unplanned downtime can lead to significant financial losses and compliance penalties.

4. Robust Anti-Interference & Environmental Resilience

   Equipped with advanced electromagnetic shielding and surge protection, the ABB CI867AK01 resists noise from industrial equipment such as motors, pumps, and high-voltage switchgear. Its wide operating temperature range and corrosion-resistant housing ensure reliable performance in outdoor, coastal, and underground installations.

Application Cases in Application Fields

1. Offshore Oil Platform Control

   On a deepwater offshore oil platform, the ABB CI867AK01 connects the central AC 800XA DCS to remote subsea wellhead control units, pressure sensors, and emergency shutdown systems. Its long-distance communication capability eliminates the need for expensive underwater Ethernet cables, while its isolation protection safeguards against voltage fluctuations from platform power systems.

2. Renewable Energy (Solar Farm Monitoring)

   A utility-scale solar farm deploys the ABB CI867AK01 to link the central DCS with remote inverter controllers and weather monitoring stations across the farm. The module’s multi-protocol support integrates with Modbus RTU-enabled inverters, while its rugged design withstands extreme temperature swings and solar radiation, ensuring 24/7 monitoring of energy production.

3. Water Resource Management

   A municipal water management system uses the ABB CI867AK01 to monitor remote water treatment plants, reservoir level sensors, and pump stations scattered across a wide geographic area. Its long transmission distance reduces infrastructure costs, and its reliable data transmission ensures timely response to water level anomalies and equipment faults.

Comparisons with Competing Products

Selection Suggestions and Precautions

Selection Suggestions

1. Choose the ABB CI867AK01 for projects requiring long-distance (1–10 km) serial communication or multi-protocol integration with remote field devices.
2. Verify compatibility with your existing ABB DCS firmware version; ensure Freelance DCS is updated to v9.1 or later for seamless integration.
3. Prioritize this module for harsh environment deployments, such as offshore platforms, solar farms, and underground facilities, where environmental resilience is critical.

Precautions

1. Use shielded twisted-pair cables for RS-485/RS-422 connections to maximize the ABB CI867AK01’s anti-interference performance and transmission distance.
2. Configure the correct protocol and baud rate for each port according to connected field devices to avoid communication conflicts and data loss.
3. Follow ABB’s official guidelines for hot swapping to prevent electrical short circuits or controller communication errors during module replacement.
4. Regularly inspect port connectors for corrosion, especially in coastal or humid environments, to maintain stable data transmission.
