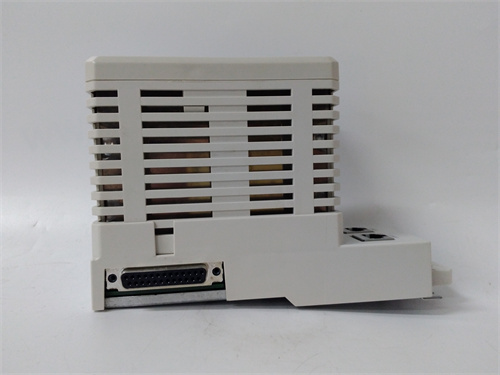

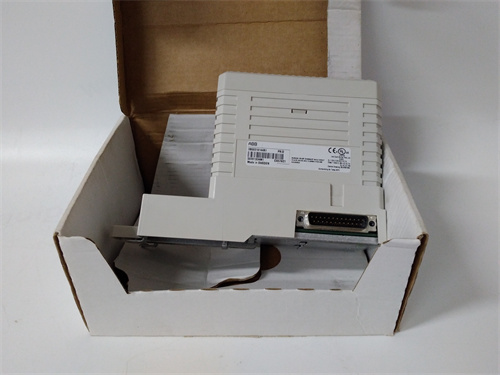

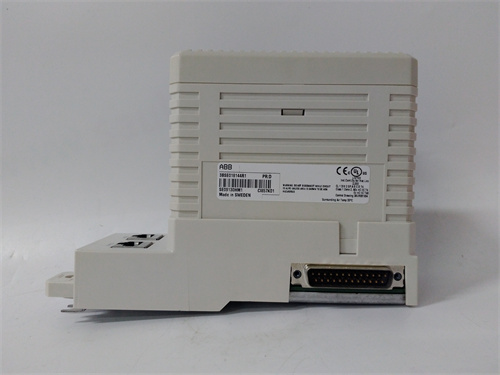

ABB CI857K01

Description

Product Description

Product Parameters

Advantages and Features

1. Native OPC UA Connectivity for Industry 4.0

   The ABB CI857K01 supports the OPC UA standard, the universal language of industrial IoT, enabling interoperability between ABB’s AC 800M DCS and third-party devices (sensors, drives, HMIs) from different manufacturers—breaking down data silos in smart factories.

2. Enhanced Cybersecurity Protection

   Equipped with TLS 1.2 encryption, role-based access control, and audit logging, the ABB CI857K01 meets ISA/IEC 62443 cybersecurity standards, safeguarding critical process data from cyberattacks and ensuring compliance with industry regulations.

3. High-Speed Gigabit Ethernet Performance

   With 1 Gbps data transfer speed, the ABB CI857K01 delivers real-time data transmission for time-sensitive applications such as high-speed manufacturing lines and dynamic process control systems.

4. Rugged Industrial Durability

   Rated for extreme temperatures, EMI resistance, and vibration tolerance, the ABB CI857K01 maintains stable operation in harsh environments (e.g., oil refineries, mining sites) where standard communication modules fail to perform.

5. Simplified Configuration & Diagnostics

   Compatible with ABB Control Builder M software, the ABB CI857K01 allows for intuitive parameter setup, network diagnostics, and firmware updates—reducing commissioning time by up to 40% and lowering operational costs.

Application Cases in Application Fields

1. Smart Automotive Manufacturing

   In a connected automotive assembly plant, the ABB CI857K01 acts as an OPC UA gateway, linking the AC 800M DCS to robotic assembly arms, quality inspection cameras, and IoT-enabled sensors. Its high-speed data transmission ensures synchronized operation of production lines, while cybersecurity features protect proprietary manufacturing data.

2. Intelligent Chemical Processing

   A specialty chemical plant deploys the ABB CI857K01 to connect batch reactors, analytical instruments, and a cloud-based MES (Manufacturing Execution System). The module’s OPC UA support enables real-time monitoring of reaction conditions, optimizing product quality and reducing waste, while its cybersecurity features prevent unauthorized access to sensitive process data.

3. Renewable Energy Power Plants

   In a solar farm control system, the ABB CI857K01 facilitates data exchange between the AC 800M DCS, solar inverters, and weather monitoring stations via OPC UA. Its rugged design withstands outdoor temperature fluctuations, ensuring reliable operation for solar energy production optimization.

4. Pharmaceutical Smart Factories

   A pharmaceutical manufacturing facility uses the ABB CI857K01 to integrate its DCS with automated packaging lines and quality control systems. The module’s compliance with ISA/IEC 62443 standards ensures data integrity for regulatory reporting, while its high-speed connectivity supports real-time batch tracking and traceability.

Comparisons with Competing Products

Selection Suggestions and Precautions

Selection Suggestions

1. Prioritize for OPC UA-Based Smart Factory Projects

   Choose the ABB CI857K01 if your automation system requires interoperability between multi-vendor devices and compliance with Industry 4.0 standards; it eliminates the need for additional OPC UA gateway hardware.

2. Opt for Cybersecurity-Critical Applications

   Select the ABB CI857K01 for industries with strict data security requirements (e.g., pharmaceuticals, chemical processing) as it meets ISA/IEC 62443 cybersecurity standards.

3. Match with ABB AC 800M DCS

   For optimal performance and compatibility, pair the ABB CI857K01 with ABB’s AC 800M distributed control system; verify third-party PLC compatibility via ABB’s official compatibility matrix.

Precautions

1. Cybersecurity Configuration Best Practices

   When setting up the ABB CI857K01, enable TLS 1.2 encryption and implement role-based access control to prevent unauthorized data access; avoid using default passwords for enhanced security.

2. Network Wiring Requirements

   Use shielded Gigabit Ethernet cables for the ABB CI857K01 to minimize EMI interference; ensure proper grounding of cable shields to maintain signal integrity in high-noise environments.

3. Firmware Update Caution

   Perform firmware updates for the ABB CI857K01 during scheduled maintenance windows; ensure the updated firmware version is compatible with the host AC 800M DCS to avoid communication disruptions.

4. Storage Conditions

   Store spare ABB CI857K01 modules in a dry, temperature-controlled environment (0°C to +30°C) with relative humidity below 85% to prevent component degradation.
