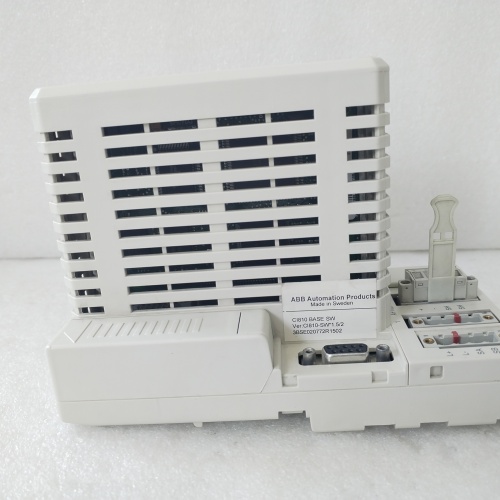

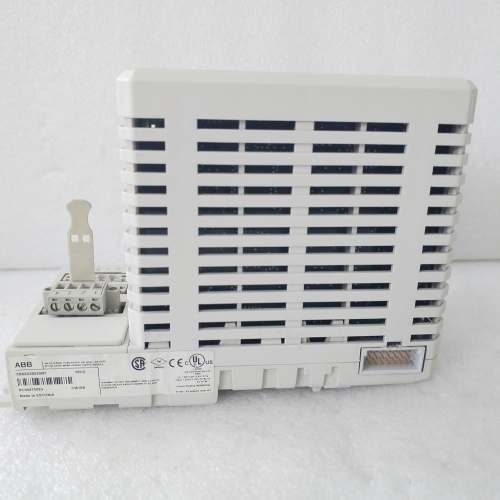

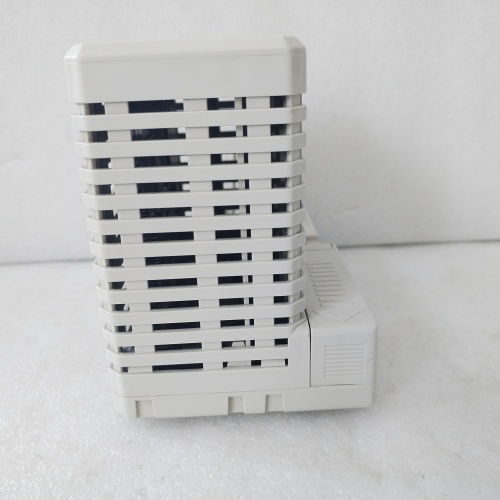

ABB CI810B | S800 I/O – Profibus DP Slave Module

Description

Product Introduction

That automotive plant in South Carolina—the one with the paint shop robots—had a mysterious “communication timeout” fault every Thursday afternoon. The line would stop for 20 minutes, then magically recover. The IT guys blamed the network, the controls guys blamed the PLC, the Germans blamed the Americans. I pulled the diagnostic logs from the CI810B in the main S800 rack. Error count on the Profibus port was incrementing every Thursday at 2 PM—right when the HVAC in that part of the plant switched over. A faulty ground on the Profibus cable was letting noise in. One ferrite core on each end of the cable, and the problem vanished.

The ABB CI810B 3BSE020520R1 is the Profibus DP slave interface for S800 I/O systems. It sits in the I/O rack (usually next to the power supply) and talks to the outside world—PLCs, drives, remote I/O—over Profibus. The “B” in CI810B means it’s the second generation, with improved diagnostics and support for DP-V1 services (acyclic data exchange). It handles baud rates from 9.6 kbit/s up to 12 Mbit/s automatically. On one side, it connects to the S800 backplane, feeding process data to and from the I/O modules. On the other, a 9-pin D-sub connector ties into the Profibus network. Inside, it’s an isolated interface—no ground loops between the fieldbus and the control system. In a typical setup, the CI810B is a slave to a Profibus master (like a Siemens S7 or another ABB controller), shuttling I/O data back and forth at cycle times down to a few milliseconds.

Key Technical Specifications

Quality Inspection Process (SOP Transparency)

A comms module needs more than a power-on test. Here’s our process.

1. Incoming Verification
   • Match the model: CI810B 3BSE020520R1. (There’s a CI810 without the B—different firmware.)
   • Visual inspection: Check the 9-pin D-sub—pins straight, no corrosion. Look at the rotary address switches—they should turn smoothly.
   • Inspect the backplane connector—gold fingers bright, no scratches.
2. Power-On Self-Test
   • Install the module in an S800 test rack with a power supply (SD821) and a CPU (PM860).
   • Apply power—watch the LEDs: “RUN” should flash then stay steady, “ERR” off, “BUS” off (no network yet).
   • Connect to the CPU via the engineering workstation, verify the module appears in the I/O config.
3. Profibus Communication Test
   • Connect the module to a Profibus master (we use a Siemens CP 5711 USB dongle running Proficore).
   • Set the address (default 3, we test at 3 and 47).
   • Configure acyclic and cyclic data exchange.
   • Send/receive test data patterns (0x55, 0xAA, ramp) for 1 hour—zero errors.
4. Baud Rate Test
   • Test at 9.6 kbit/s, 187.5 kbit/s, 1.5 Mbit/s, and 12 Mbit/s.
   • Verify automatic baud rate detection works (no dip switches to set).
   • Measure signal quality on an oscilloscope at 12 Mbit/s—rise/fall times must meet Profibus specs.
5. Isolation Test
   • 500V megger between Profibus connector shield and backplane ground—>10 MΩ.
   • 500V megger between signal pins (shorted) and backplane ground—>10 MΩ.
6. Thermal Soak
   • 4 hours at 55 °C in a thermal chamber, running continuous communication at 12 Mbit/s.
   • Monitor error counters—must remain zero.
7. Firmware Verification
   • Read the firmware version via the engineering tool (we log it).
   • If the customer requests a specific version, we verify before shipping.
8. Final QC & Packaging
   • QC sticker with test date and operator initials.
   • Wrap in anti-static bag (the backplane connector is sensitive).
   • Double-box with foam padding.
   • Test report included—communication logs, baud rate tests.

Field Replacement Pitfalls

I’ve swapped these in everything from water plants to offshore platforms. Here’s where people go wrong.

❗Bus Termination
The CI810B does NOT have built-in termination. You need an external terminator on the last device, or a terminating resistor in the D-sub connector. If you skip it, reflections will cause intermittent errors—especially at higher baud rates.

Station Address
The address is set with two rotary switches. If you set it to 0 (illegal for slaves), the module won’t communicate. If you duplicate an address on the network, chaos ensues. Photograph the old module’s address before you pull it.

Shield Grounding
The Profibus cable shield should be grounded at one end only (usually the master). If you ground both ends, you get ground loops. The CI810B’s D-sub shell is connected to the module’s ground—if your cabinet ground is noisy, that can be a problem. Use an insulated D-sub connector if needed.

DP-V1 vs DP-V0
Older masters might only support DP-V0 (cyclic data). The CI810B supports both, but if you try to use acyclic services with a V0-only master, you’ll get errors. Check your master’s capabilities.

Firmware Mismatch
The CI810B firmware has evolved. Some older versions have bugs with certain baud rates or GSD files. We verify the firmware during test—if you need a specific version, we can source it.

Nail these five, and your CI810B will talk Profibus for years.

New Original vs. Refurbished: Why It Matters

“New Original (New Surplus)” means this module was manufactured by ABB, packed in its original box, and never installed. The optoisolators have zero hours, the D-sub connector has never been mated, and the firmware is as shipped from the factory.

Refurbished risk in plain terms
A refurbished CI810B often comes from a decommissioned plant. It may have run for years in a hot cabinet. The isolation components can degrade—optoisolators lose current transfer ratio over time. A refurbisher tests it at low baud rates and calls it good. At 12 Mbit/s, it might fail intermittently.

Real cost of a refurbished failure
If this module drops off the network, the whole rack loses communication with the master. If that rack controls a critical process, you could lose the loop and trip the unit. The cost of one unplanned outage dwarfs the price difference.

What we provide as proof

• ABB box (or photos).
• Serial number recorded.
• Communication test log (all baud rates).
• GSD file (included).
• 12‑month warranty.

Pricing context
We’re priced 35% above the cheapest “pulled” CI810B modules and 20% below ABB’s current list price. That pays for the full baud rate test, the thermal soak, and the warranty that covers replacement if a comms error develops.

Performance Benchmarks & Test Results

Test conditions: S800 test rack, 24V DC backplane, Siemens CP 5711 master, 24 °C ambient.

We keep the full communication logs—ask, and we’ll email them.
