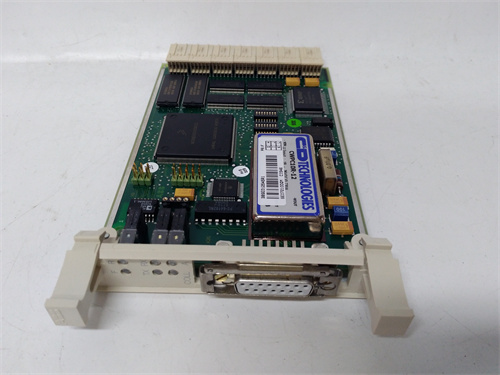

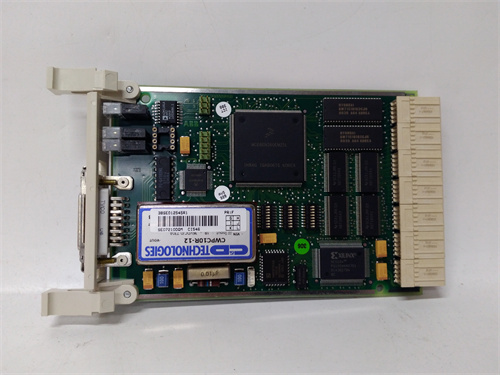

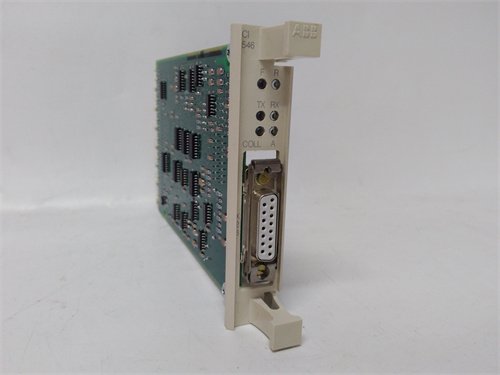

ABB CI546 3BSE012545R1

Description

Product Overview

The ABB CI546 3BSE012545R1 is a powerful communication interface module for the ABB Ability™ System 800xA and Advant OCS control systems. Specifically, it is a PROFINET Controller/Scanner module that enables AC 800M or Advant controllers to act as masters on a PROFINET industrial Ethernet network. Its primary function is to facilitate high-speed, deterministic data exchange between the ABB controller and distributed PROFINET devices such as remote I/O stations, variable frequency drives, motor starters, and other intelligent field devices. This transforms the controller into a central hub within a modern, Ethernet-based plant architecture.

Product Parameters and Specification

• Function: PROFINET Controller/Scanner Communication Interface for AC 800M.
• Communication Protocol: Implements PROFINET IO Conformance Class B or C, supporting RT (Real-Time) and optionally IRT (Isochronous Real-Time) for highly synchronized motion control applications.
• Ports: Typically features two or more RJ-45 Ethernet ports configured for PROFINET, often with integrated switches for linear (daisy-chain) network topologies without external switches.
• Performance: Supports a configurable update time (cycle time) for I/O data exchange, typically down to 1 ms or faster, depending on the network load and configuration.
• Number of Devices: Capable of managing a defined maximum number of PROFINET devices (IO-Devices) and I/O modules, as specified in its datasheet.
• Integration: Plugs directly into a dedicated communication slot on the AC 800M controller’s base unit or a compatible communication extension module.
• Configuration: Configured entirely within the ABB Control Builder M Professional engineering software using standard PROFINET device description files (GSDML).
• Diagnostics: Provides extensive diagnostic capabilities for the network and connected devices, accessible both locally via LEDs and within the 800xA/Control Builder engineering environment.

Advantages and Key Features

The ABB CI546 3BSE012545R1 offers significant advantages for modern system integration. Its primary benefit is enabling seamless, native integration of PROFINET networks into the ABB control system, allowing for a unified engineering and operational experience within Control Builder and 800xA. This eliminates the need for complex gateways or additional programming hardware. The module delivers high-performance, deterministic communication, which is essential for fast control loops and synchronized processes. It supports linear network topologies via its integrated switch, reducing cabling costs and cabinet space compared to star topologies requiring separate switches. The ABB CI546 provides robust diagnostic tools that help quickly identify and isolate network or device faults, minimizing downtime. As a core ABB component, it ensures long-term compatibility and support within the AC 800M and System 800xA lifecycle.

Application Cases in Industry

This module is used wherever AC 800M controllers need to interface with PROFINET-based subsystems. In Automotive Manufacturing, the CI546 allows an AC 800M to control and monitor entire production lines of PROFINET-enabled robots, welding controllers, and transfer systems. Within Water Treatment, it connects to PROFINET remote I/O panels distributed across a large plant for pump and valve control. For Packaging Machinery, it enables high-speed synchronization between an AC 800M and servo drives on a PROFINET IRT network. In Hybrid Process/Batch Plants, the ABB CI546 3BSE012545R1 is key to integrating skid-mounted packages (e.g., a filtration skid with its own PROFINET I/O) directly into the main DCS, simplifying commissioning and data exchange.

Comparison with Competing Products

• vs. PROFIBUS DP Interface (e.g., ABB CI854): PROFINET, enabled by the CI546, offers higher bandwidth, Ethernet-based infrastructure, and easier integration with IT systems compared to the older, serial-based PROFIBUS. It is the modern successor in many applications.
• vs. Third-Party PROFINET Gateways: External gateways can connect a non-PROFINET controller to a PROFINET network but often act as protocol translators, which can add latency, complexity, and a separate point of failure. The native CI546 integration is more performant and reliable.
• vs. Other DCS Vendors’ PROFINET Cards (e.g., Siemens, Emerson): Competing DCS platforms have their own PROFINET interface cards. The ABB CI546 is distinguished by its deep integration with ABB’s engineering toolchain (Control Builder) and the 800xA operational environment. The choice is typically dictated by the core control system vendor.

Selection Suggestions and Precautions

• Selection Advice:
  1. Controller Compatibility: Verify that your specific AC 800M processor model (e.g., PM856, PM866) and firmware version support the CI546 module.
  2. Network Performance Requirements: Determine if your application requires standard RT or IRT communication. Ensure the selected CI546 variant supports the necessary performance class.
  3. Device Count and Topology: Map out all PROFINET devices (IO-Devices) and their required I/O data size. Ensure the total configuration does not exceed the module’s maximum address space and performance limits for the desired update time.
  4. GSDML Files: Ensure you have the latest Generic Station Description Markup Language (GSDML) files for all third-party PROFINET devices you plan to connect, to import into Control Builder for easy configuration.
• Important Precautions:
  1. Network Design: Adhere to industrial Ethernet best practices: use rated cables (PROFINET Cat5e or higher), proper connectors, and correct topology. Implement network segmentation and security measures as the CI546 connects to an open standard network.
  2. Grounding and Shielding: Properly ground the shield of PROFINET cables at one end only (typically at the switch or controller) to prevent ground loops while maintaining noise immunity.
  3. Firmware Management: Keep the CI546 module’s firmware updated to the version recommended by ABB for compatibility with your controller firmware and to incorporate performance or security updates.
  4. Configuration Backup: Always take a full backup of the controller configuration, including the detailed CI546 PROFINET setup, before making any network changes or module replacements.
