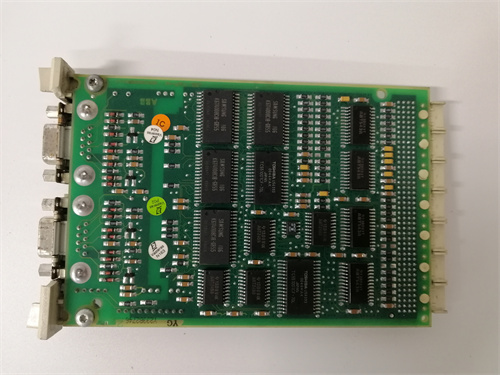

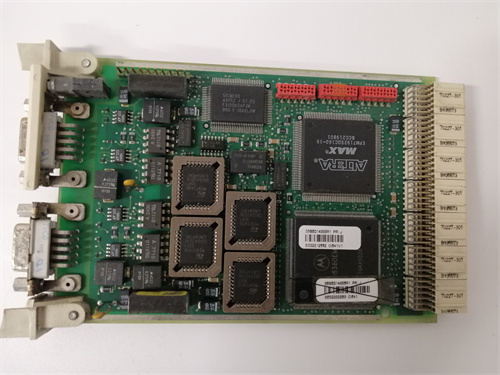

ABB CI541V1 3BSE014666R1 | AC 800M Profibus DP Communication Module

Description

Product Introduction

Profibus DP is everywhere in industrial automation—drives, remote I/O, smart instruments. And in the ABB world, the CI541V1 is how AC 800M controllers talk to all of them. It’s a communication module that plugs into the controller rack and handles the Profibus traffic so the CPU can focus on control logic.

The CI541V1—full part number 3BSE014666R1—is the V1 revision of this module, supporting both master and slave operation. It handles up to 12 Mbps data rates, though in practice you’ll often run at 1.5 Mbps or less depending on cable length and device count. The module has both electrical (RS-485) and fiber optic interfaces, giving you flexibility for noisy environments or long distances. In my experience, these are solid modules—the fiber optic versions are great for isolating ground loops in plants with nasty electrical noise.

Key Technical Specifications

Quality Inspection Process (SOP Transparency)

Incoming verification starts with the part number. CI541V1 3BSE014666R1 verified against OEM packing slip and module label. Serial number logged and checked against ABB’s format.

Visual inspection:

• Case Condition: Inspected for cracks, damage, or signs of previous use. The metal case should be straight.
• Front Panel: LEDs checked for clarity. Fiber optic connectors (if equipped) inspected for damage, dirt, or scratches. RS-485 connector checked for bent pins.
• Connectors: Backplane connector inspected for bent pins or corrosion. Gold fingers should be pristine on new surplus.
• Label Integrity: Verify all labels present, including ABB logo and serial number.

Live functional test requires an AC 800M test rack with controller and Profibus devices.

1. Power-Up: Insert module into rack. Apply power. Verify green “RUN” LED illuminates steady. Red “ERR” LED remains off.
2. Communication Test (Master Mode):
   • Configure CI541V1 as Profibus master in Control Builder.
   • Connect to Profibus slave device (e.g., drive, remote I/O).
   • Verify communication established—”BUS” LED flashes with activity.
   • Read/write data to slave, verify correct.
3. Communication Test (Slave Mode):
   • Reconfigure module as Profibus slave.
   • Connect to Profibus master (test setup).
   • Verify master can communicate with CI541V1.
4. Baud Rate Test: Test at multiple baud rates (9.6 kbps, 19.2 kbps, 187.5 kbps, 500 kbps, 1.5 Mbps, 12 Mbps). Verify error-free communication at each speed.
5. Device Count Test: Connect multiple Profibus slaves (up to 8 in test setup). Verify all appear in network configuration and update correctly.
6. Fiber Optic Test (if equipped): Measure optical power using power meter. Transmit power should be within spec (-15 to -20 dBm typical). Verify link with fiber cable.
7. Diagnostic Test: Force bus error (disconnect cable). Verify module reports fault correctly and “ERR” LED illuminates.
8. Thermal Run: 4-hour continuous operation with bus traffic. Monitor module temperature via IR thermometer. Should stabilize below 55°C at 25°C ambient.

Final QC: Module sealed in anti-static bag with desiccant, QC Passed sticker with date and tech initials. Test report includes baud rate verification and communication results—available on request.

Field Replacement Pitfalls

I’ve swapped CI541 modules in plants from pulp mills to chemical plants. Here’s where people get tripped up.

1. ❗Profibus Address Setting: The CI541V1 has a Profibus address, set via software or DIP switches (depending on revision). Record the old module’s address before removal. Install the new module with the same address. Wrong address means the master can’t find the device.
2. Master/Slave Configuration: The CI541V1 can be either master or slave, but not both at once. Check the old module’s configuration in Control Builder. Configure the new module identically before installation, or be prepared to download new configuration.
3. Termination Resistor: Profibus RS-485 requires termination at both ends of the segment. If the CI541V1 is at the end of the bus, it may need termination enabled (usually a switch). Check if the old module had termination and match it.
4. ❗Fiber Optic Connector Cleaning: The fiber optic versions are sensitive to dirt. If you install a new module with a dirty connector, you’ll get intermittent communication or no link. Inspect and clean fiber connectors before connection. Use a proper fiber cleaner.
5. Baud Rate Mismatch: The CI541V1 auto-detects baud rate in slave mode, but in master mode you set the rate. If the new module defaults to a different rate than your network, it won’t communicate. Verify network baud rate and set the module accordingly.
6. GSD File Compatibility: Different CI541 revisions may have different GSD files. If your master expects GSD file version X and the new module has version Y, you may get configuration errors. Check GSD file version and update master configuration if needed.
7. Grounding: Profibus RS-485 needs proper grounding. The shield should be grounded at one end only. If the old installation had poor grounding, replacing the module won’t fix it. Check shield termination while you’re swapping.
8. Power Supply Check: The CI541V1 draws power from the backplane. If the AC 800M power supply is marginal, adding this module might push it over the edge. Calculate total rack load before installation.

Get these eight right and you’ll cut rework time by 90%.

New Original vs. Refurbished: Why It Matters

A communication module is the link between the controller and the field devices. If it fails, you lose control of drives, I/O, and instruments. In a continuous process, that’s downtime.

What “New Original (New Surplus)” means for this CI541V1: This module left ABB’s factory, passed their final test, and never saw field installation. The Profibus ASICs haven’t been stressed by surges. The fiber optic transceivers are fresh. The backplane connector shows no wear. The firmware is factory-stock. You get a traceable serial number that ABB can verify.

The refurbished reality: A refurbished CI541V1 came from somewhere—likely a decommissioned plant or a failed panel. Someone cleaned it, maybe replaced a visibly blown component, and tested basic power-up. What they can’t fix: aged electrolytics in the power supply section, Profibus transceivers damaged by previous surges, or fiber optic transmitters with degraded output. I’ve seen refurbished modules pass a bench test but fail in the field when connected to a long Profibus cable with real-world noise. The failure rate? Conservatively 4-5x higher than new old stock.

The cost math: A communication failure in a running process:

• Loss of control means process upset
• Production may need to shut down
• Troubleshooting time: 4-8 hours at $200/hour
• Lost production: $5,000-50,000 per hour depending on industry

A refurbished module that fails saves you maybe 400 upfront and costs you 20,000+ in downtime. Simple math.

What we provide: You get a module that passes our full test protocol, including baud rate verification and communication tests. We photograph the OEM packaging if available. The serial number is logged and traceable. It’s sealed in anti-static with a QC Passed sticker.

Pricing context: Our price sits 30-50% above refurbished alternatives but 20-40% below current ABB list price—the delta covers global sourcing, our full test regime, and a 12-month warranty.

Performance Benchmarks & Test Results

These are measured values from our AC 800M test rack with Profibus DP network.

• Power-On Self-Test: 12 seconds to “RUN” LED steady at 25°C.
• Baud Rate Support: Verified error-free at all standard rates: 9.6 k, 19.2 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M.
• Device Support: Successfully communicated with 32 Profibus slaves in test setup (limited by test gear, module supports 125).
• Latency: < 2 ms typical from master request to slave response (at 1.5 Mbps).
• Fiber Optic Power (if equipped): -16.5 dBm at 660 nm (plastic fiber) or -18 dBm at 820 nm (glass). Within spec.
• Temperature Rise: After 4 hours at 25°C ambient, case temperature stabilizes at 48°C.
• Power Consumption: +5 V: 0.6 A typical (3 W).
• MTBF: ABB design target: approximately 400,000 hours at 40°C ground fixed conditions. Refurbished units with aged components would be significantly lower.
