ABB CI541V1 3BSE014666R1

Description

Product Description

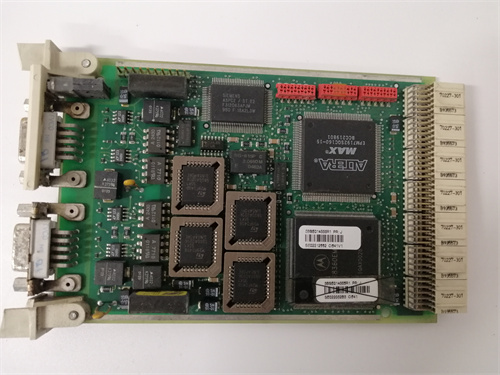

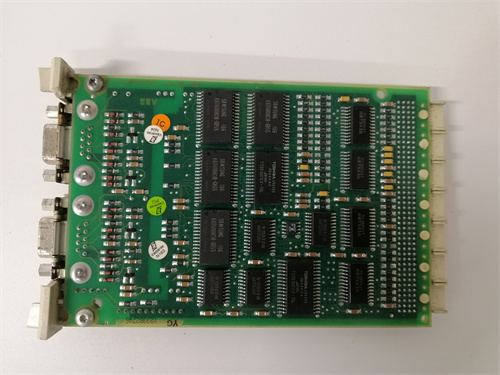

The ABB CI541V1 3BSE014666R1 is a versatile communication and control interface module designed for the ABB Freelance AC 800F and AC 700F controller families, which are central components of the Freelance distributed control system (DCS). This module serves as a critical gateway, providing a flexible, high-speed serial communication link between the controller and external devices. Its primary function is to implement the CAN (Controller Area Network) bus interface, allowing the Freelance controller to act as a node on an industrial CAN network. This enables direct communication and data exchange with a wide array of CAN-based field devices such as drives, motor starters, I/O blocks, sensors, and other intelligent actuators. The ABB CI541V1 3BSE014666R1 effectively integrates these fieldbus devices into the unified Freelance DCS environment, expanding the system’s connectivity and control capabilities. Reliable data exchange facilitated by this module is essential for building distributed control architectures with smart field equipment.

Product Parameters

• Controller Family: ABB Freelance (AC 800F, AC 700F).
• Module Type: Serial Communication Interface Module (CAN bus).
• Protocol: CAN (Controller Area Network) bus, typically supporting CANopen or other CAN-based application layers.
• Physical Interface: High-speed CAN interface (ISO 11898), via a dedicated connector (e.g., 9-pin D-sub).
• Data Transfer Rates: Configurable CAN bus speeds (e.g., up to 1 Mbps).
• Electrical Isolation: Galvanic isolation between the CAN bus lines and the controller system for noise immunity and protection.
• Configuration: Programmed and configured within the ABB Freelance Engineering software. Settings include node ID, baud rate, and object dictionary mapping.
• Status Indicators: LEDs for power, module status, transmit (Tx), receive (Rx), and error conditions on the CAN bus.
• Mounting: Plugs into a communication module slot on the Freelance controller base unit.

Advantages and Features

• Industrial Fieldbus Integration: The CAN bus is a robust, widely adopted standard in industrial automation for device-level networking. The ABB CI541V1 3BSE014666R1 allows Freelance systems to seamlessly connect with this extensive ecosystem of devices.
• Deterministic and Robust Communication: CAN is known for its deterministic, priority-based messaging and excellent error detection capabilities, making it suitable for real-time control applications in noisy environments.
• Reduced Wiring Complexity: Enables the connection of multiple field devices on a single, twisted-pair bus, significantly reducing point-to-point wiring compared to traditional methods.
• Peer-to-Peer Capabilities: Supports direct data exchange between devices on the CAN network, facilitating distributed control strategies where devices can interact without constant intervention from the main controller.
• Seamless Freelance Integration: Data exchanged via CAN is mapped directly to Freelance process variables, making external device data appear as native I/O within the control logic and operator displays.

Application Cases in Application Fields

• Mobile Hydraulics and Machinery: Connects the Freelance controller to CAN-based hydraulic valve controllers, sensor clusters, and displays on mobile equipment or test stands.
• Packaging Machinery: Interfaces with distributed servo drives, I/O blocks, and smart sensors on a packaging line using a CAN-based network like CANopen.
• Building Automation: Communicates with HVAC actuators, damper controllers, and room sensors that utilize the CAN bus for building management systems.
• Renewable Energy: Integrates with inverters, trackers, and condition monitoring systems in solar or wind power installations that use CAN communication.

Comparisons with Competing Products

• Vs. Siemens CP 341 Communication Processor (for CAN): Siemens offers a dedicated CAN module for its S7-300/400 PLCs. The ABB CI541V1 3BSE014666R1 provides the same core function but for the Freelance platform. The choice is dictated by the base controller ecosystem.
• Vs. ABB’s own CI522 Modbus Module: Both are serial communication modules for Freelance. The ABB CI541V1 3BSE014666R1 uses the CAN protocol, which is typically faster, more deterministic, and better suited for multi-drop, real-time control networks than Modbus RTU.
• Vs. External CAN-to-Ethernet Gateways: A standalone gateway can bridge a CAN network to an Ethernet-based system. The ABB CI541V1 is an integrated solution that uses the controller’s backplane for fast data exchange and is configured within the native engineering software, offering better cohesion and performance.

Selection Suggestions and Precautions

1. CAN Protocol Layer Definition: Clearly define the higher-layer CAN protocol used by your devices (e.g., CANopen, DeviceNet, J1939). The ABB CI541V1 3BSE014666R1 must be configured with the correct protocol and associated Electronic Data Sheet (EDS) or Device Profile files for the target devices.
2. Correct Bus Termination and Wiring: A CAN bus requires a termination resistor (typically 120 Ω) at each physical end of the network to prevent signal reflections. Use shielded, twisted-pair cable (CAN bus cable) and follow strict wiring guidelines.
3. Node Addressing and Configuration: Each device on the CAN network, including the ABB CI541V1 3BSE014666R1, must have a unique node address. Meticulously plan the object dictionary mapping for data exchange in the Freelance Engineering software.
4. Baud Rate Consistency: Ensure the CAN bus baud rate configured in the ABB CI541V1 3BSE014666R1 matches the baud rate of all other devices on the network. Incompatible speeds will prevent communication.
5. Grounding and Noise Mitigation: Properly ground the cable shield at a single point to drain noise without creating ground loops. Isolate the CAN bus cable from power cables to avoid interference.
